VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
Specifications
Brand Name :
SINOTRUK, CHNTC, HOWO, SINOTRUCK
Model Number :
VG1560080023
Certification :
ISO, SGS, EMARK
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/week
Delivery Time :
3 working days
Packaging Details :
paper carton
Part No. :
VG1560080023
Application :
WD615 Engine, Euro 2
Brand :
SINOTRUK, HOWO, SHACMAN, A7
Description :
Fuel Injection Pump
Quality :
Original
Origin :
China
Description

VG1560080023 WD615 Engine HOWO Fuel Injection Pump

VG1560080023 Fuel Injection Pump, used on SINOTRUK WD615 Series Engines, like HOWO tractor truck, tipper truck, cargo truck, etc, all can use this part.

VG1560080023 WD615 Engine HOWO Fuel Injection Pump

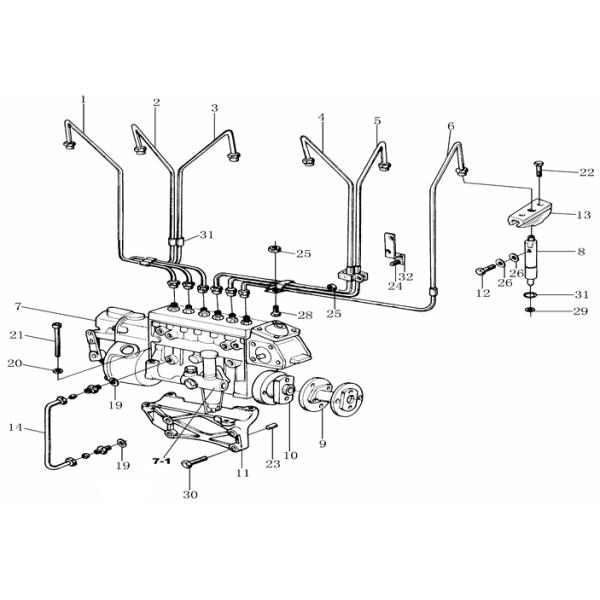

D No. Part No. Part Name QTY
- VG1560080278A Injection pipe set 1
1 VG1560080278A-1 Injection pipe for 1st cylinder 1
2 VG1560080278A-2 Injection pipe for 2nd cylinder 1
3 VG1560080278A-3 Injection pipe for 3rd cylinder 1
4 VG1560080278A-4 Injection pipe for 4th cylinder 1
5 VG1560080278A-5 Injection pipe for 5th cylinder 1
6 VG1560080278A-6 Injection pipe for 6th cylinder 1
7 VG1560080302 Injection pump/CB6P821 1
7/A VG1560080023 Injection pump 1
7-1 VG1500080100 Fuel pump 1
8 VG1560080276 Nozzle holder/P036 6
9 VG1560080277 Coupler 1
9/A VG1560080300 Coupler 1
10 VG1560080261 Flange 1
11 VG14080074 Bracket 1
11/A VG1500080174 Bracket 1
12 VG1500080090 Hollow screw 6
13 VG1500080094A Pressure clip 6
14 VG1560070025 Lubricating oil reversal 1
19 VG2600080200 Gasket 4
20 190003930271 Washer 4
21 190003862566 Screw 4
22 VG2600080383 Screw 12
23 190003901600 Dowel 2
24 190003802321 Screw 4
25 190003871232 Nut 6

VG1560080023 WD615 Engine HOWO Fuel Injection Pump

Part No. VG1560080023 Parts Description Fuel Injection Pump
Application WD615 Engine Level Original
Brand SINOTRUK, HOWO, A7, Shacman, Weichai, CNHTC, SINOTRUCK

VG1560080023 WD615 Engine HOWO Fuel Injection Pump

VG1560080023 WD615 Engine HOWO Fuel Injection Pump

VG1560080023 WD615 Engine HOWO Fuel Injection Pump



If you need more spare parts information, pls check the following:

VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump
VG1560080023 WD615 Engine HOWO Fuel Injection Pump

SERIES ITEM PART NO. DESCRIPTION
Engine 1 VG1500010344 CYLINDER LINER
2 VG1500010046 MAIN BEARING STD
5 VG1560020029 CRANKSHAFT ASSY
6 VG1560037011 PISTON
7 VG1560030013 PISTON PIN
8 VG1560030040 PISTON RING
9 161500030009 CON ROD ASSEMBLY
10 61560030033/34 CONROD BEARING
11 VG1560040058 CYLINDER HEAD
12 VG1500040049 CYLINDER HEAD GASKET
13 VG1500050096 CAMSHAFT
14 VG1500060051 WATER PUMP
15 VG2600060446 RING FAN
16 AZ1500070021A OIL PUMP
17 VG61000070005 OIL FILTER
19 VG1560080012 FUEL FILTER ELEMENT
20 VG1540080311 FUEL FILTER ELEMENT
21 VG1560090007 STARTER
22 VG1560090012 ALTERNATOR (6PK28V55A)
23 VG1560118229 TURBOCHARGER
24 VG1560130080 DOUBLE CYLINDER AIR COMPRESSOR
29 VG14080719 FUEL FEED PUMP
30 AZ61560010701 ENGINE REPAIR KIT
Axle 1 AZ9231320271 DIFF.HOUSING
2 WG9231320151 BEVEL PINION
4 AZ9128320014 Ф180 FLANGE
7 99012340123 REAR WHEEL BOLT AND NUT
8 199112340029 PLANETARY CARRIER
11 WG9112340113 GASKET
12 WG9112340114 GASKET
13 WG9231342006 BRAKE GRUM
14 AZ9231342070 BRAKE SHOE& LINING C
15 AZ9231342068 REAR BRAKE LINING
16 WG9200340068 REAR BRAKE LINING
21 WG9112410009 FRONT HUB
22 WG9100410104 FRONT WHEEL BOLT AND NUT
26 AZ9112440001 BRAKE DRUM
27 AZ9100440018 BRAKE SHOE
28 WG9100440029 "T" BRAKE LINING 54°50‘
29 WG9100440027 "T" BRAKE LINING 39°50’
30 WG9231340068 RIVET
Clutch 1 WG9725160300 CLUTCH DISC
2 AZ9725160100 CLUTCH COVER
3 WG9921160200 CLUTCH DISC
4 WG9921161100 CLUTCH COVER
5 WG9725160510 CLUTCH BEARING
6 WG9725230042 CLUTCH OPERATING CYLINDER
7 WG9719230023 CLUTCH DRIVING CYLINDER
Transmission 1 AZ2203250003 DOUBLE H VALVE
2 AZ2203250010 AIR LOCKING VALVE
3 WG2229210040 GEAR SHIFT LEVEL
4 WG2229210041 SUPPORT BAR
7 WG2210100009 SYNCHRONIZATION RING
10 WG2210100001 SUN GEAR
13 WG2203100005 LOW-GEAR CONE HUB
14 WG2222100003 RANGE GEAR CYLINDER
15 WG2210100018 OUTPUT FLANGE
16 WG2210100008 SYN.SLEEVE
17 WG2203100006 HIGH-GEAR CORN HUB
18 WG2229020001 SYN.PUSH PAD
19 WG2210100004 PLANETARY GEAR
20 WG2210100007 SYN.GEAR BASE
Cabin 1 WG1500139001 A/C AIR COMPRESSOR
2 WG1642770001 REAR VIEW MIRROR LEFT
3 WG1642770003 REAR VIEW MIRROR RIGHT
4 WG1642777011 REAR VIEW MIRROR LEFT
5 WG1642777012 REAR VIEW MIRROR RIGHT
6 WG1642111011 FRONT COVER
11 WG1642330003 WINDOWS LIFTER LEFT
12 WG1642330004 WINDOWS LIFTER RIGHT
13 WG1642740010 WIPER ARM AND BLADE
16 WG1642430285 FRONT SHOCK ABSORBER
17 WG1642440085 REAR AIR BAG
18 AZ1642440021 STABILIZER
25 WG9719720001 HEADLAMP ASS. -LEFT
26 WG9719720002 HEADLAMP ASS. -RIGHT
27 WG9719720005 FRONT LAMP -LEFT
28 WG9719720006 FRONT LAMP -RIGHT
29 WG9719720025 FRONT LAMP -LEFT
30 WG9719720026 FRONT LAMP -RIGHT
31 WG9719810001 REAR COMBINATION LAMP -LEFT
32 WG9719810002 REAR COMBINATION LAMP -RIGHT


VG1560080023 WD615 Engine HOWO Fuel Injection Pump
by 20'GP/40'GP/40'HQ/LCL/Bulk

VG1560080023 WD615 Engine HOWO Fuel Injection Pump

VG1560080023 WD615 Engine HOWO Fuel Injection Pump
