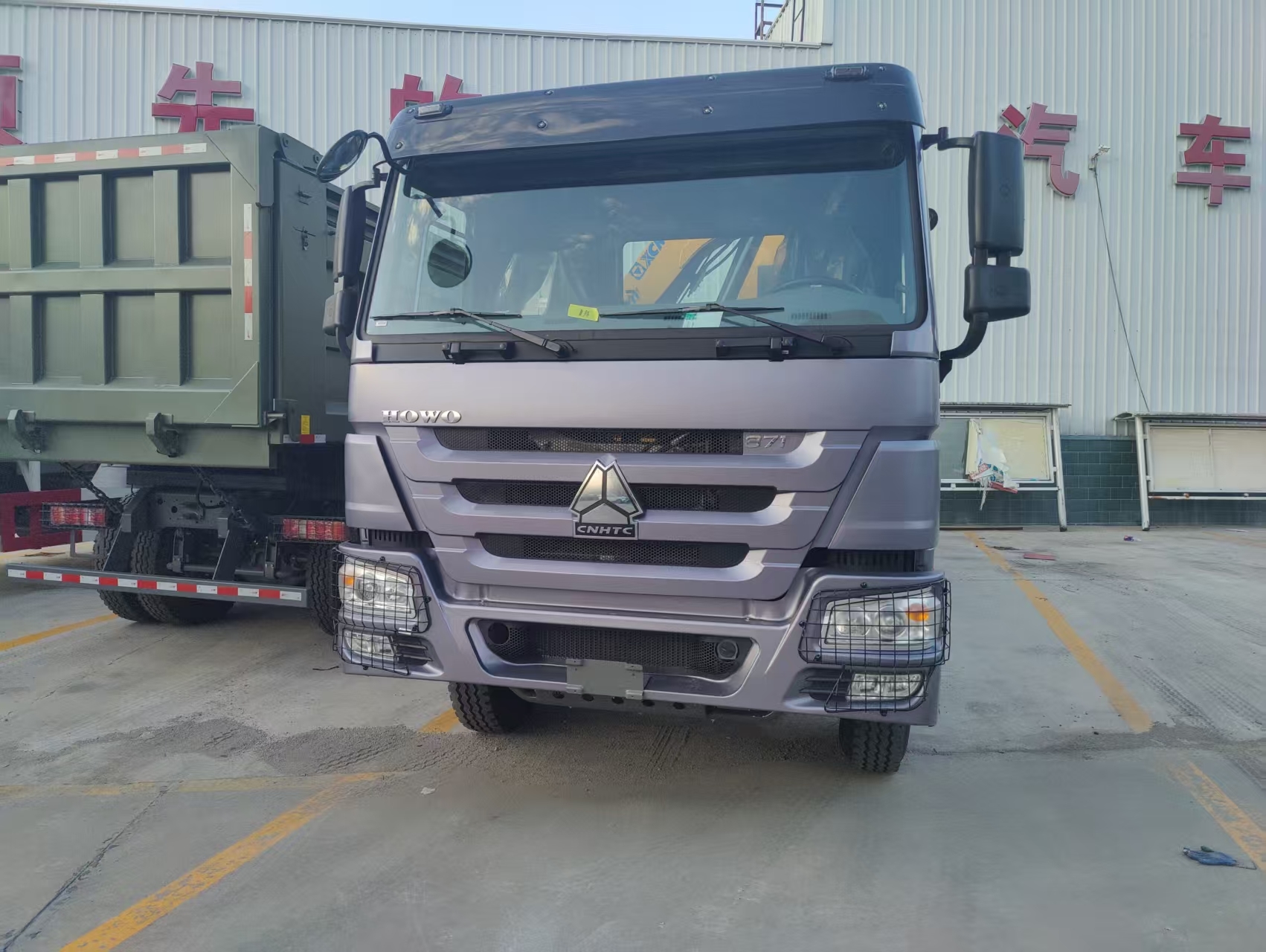

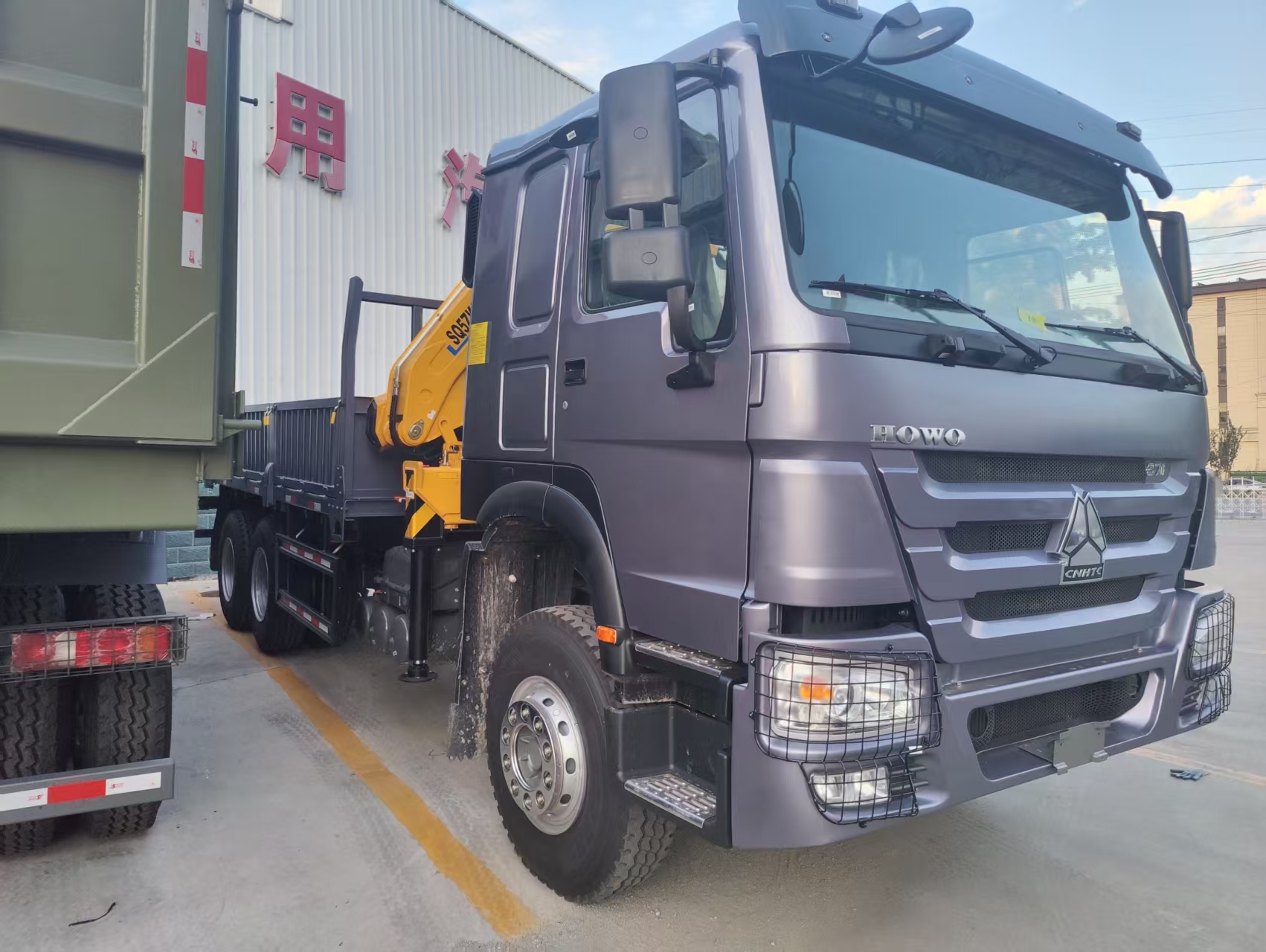

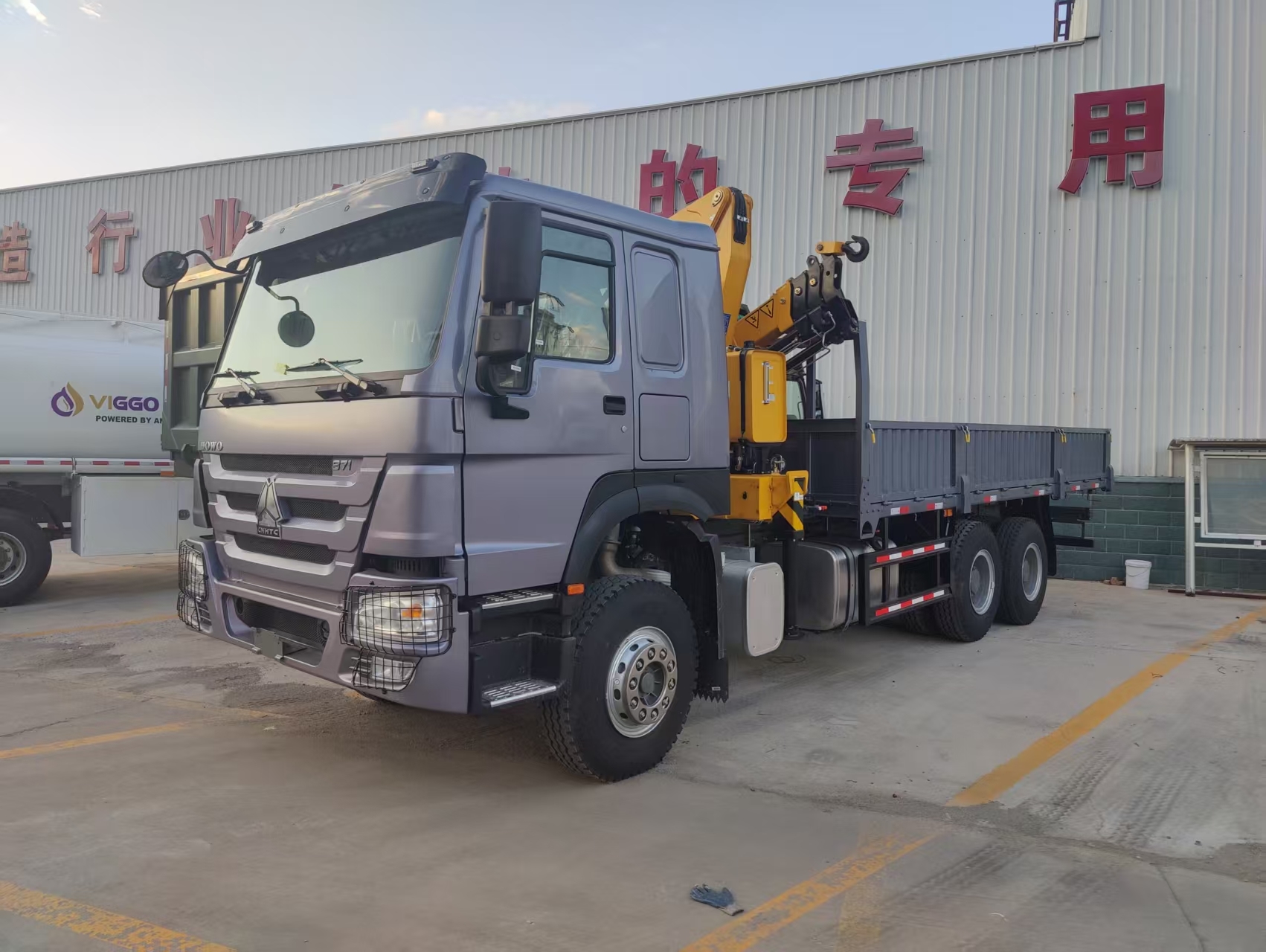

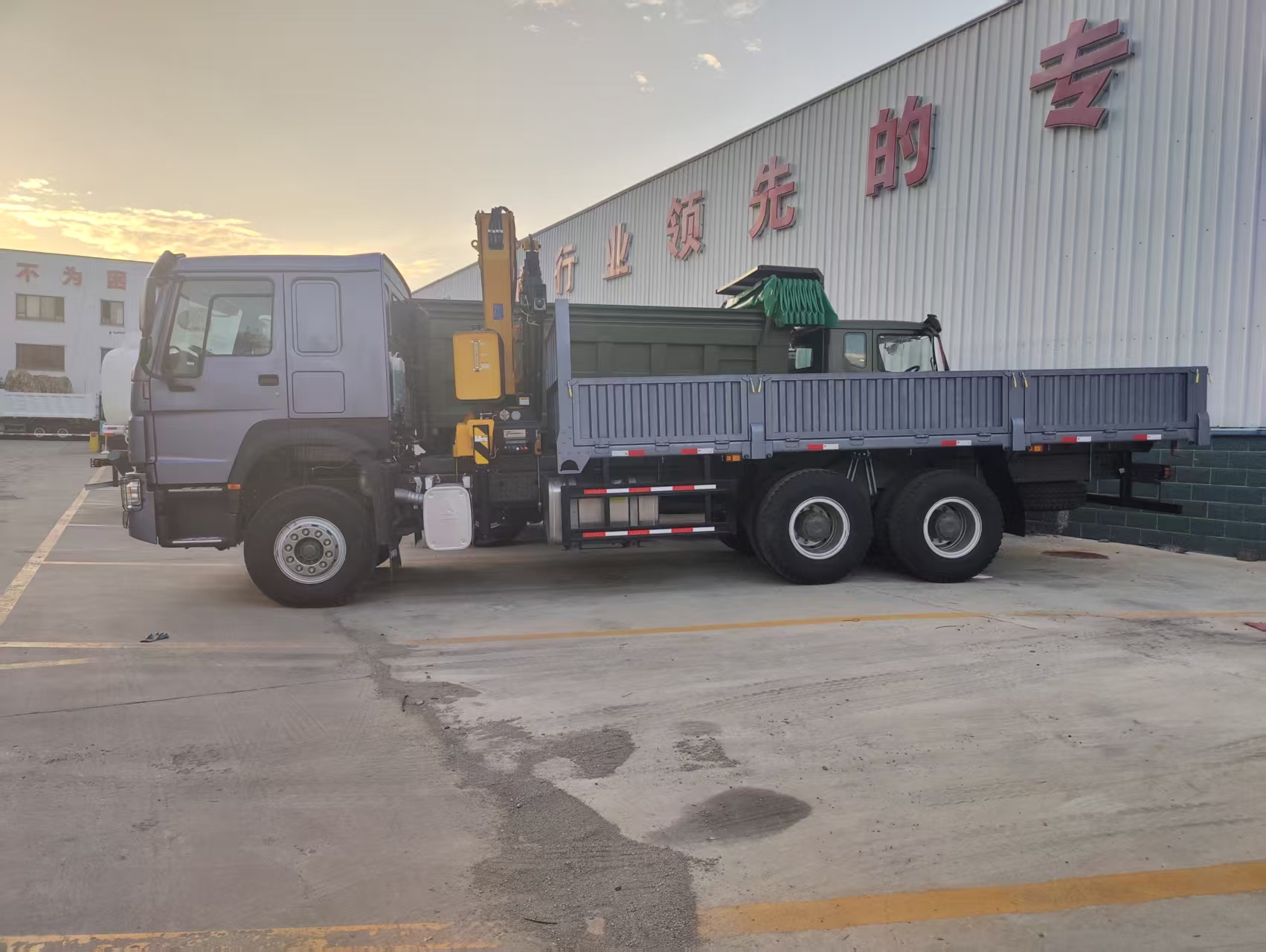

SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
SINOTRUK HOWO Truck Mounted Crane with XCMG SQ5ZK3Q Knuckle Boom
Specifications
Supply Ability :
3000 units per month
Cab :
Two seat plus one sleeper
Model Number :
ZZ1257V464JB1
Front Axle :
VGD95
Price :
Negotiable
External dimensions :
6250 × 2300 × 550 mm
Sleeper dimensions :
2100 mm (L) × 610 mm (W)
MOQ :
1 unit
Delivery Time :
within 45 working days
Drive Axle :
MCX16ZG
Payment Terms :
T/T
Engine :
WD615.47,371HP
Crane :
XCMG SQ5ZK3Q
Certification :
ISO/3C/BV/IFA/SGS
Packaging Details :
Waxing in Roro or bulk ship
Place of Origin :
CHINA
Brand Name :
SINOTRUK
Description

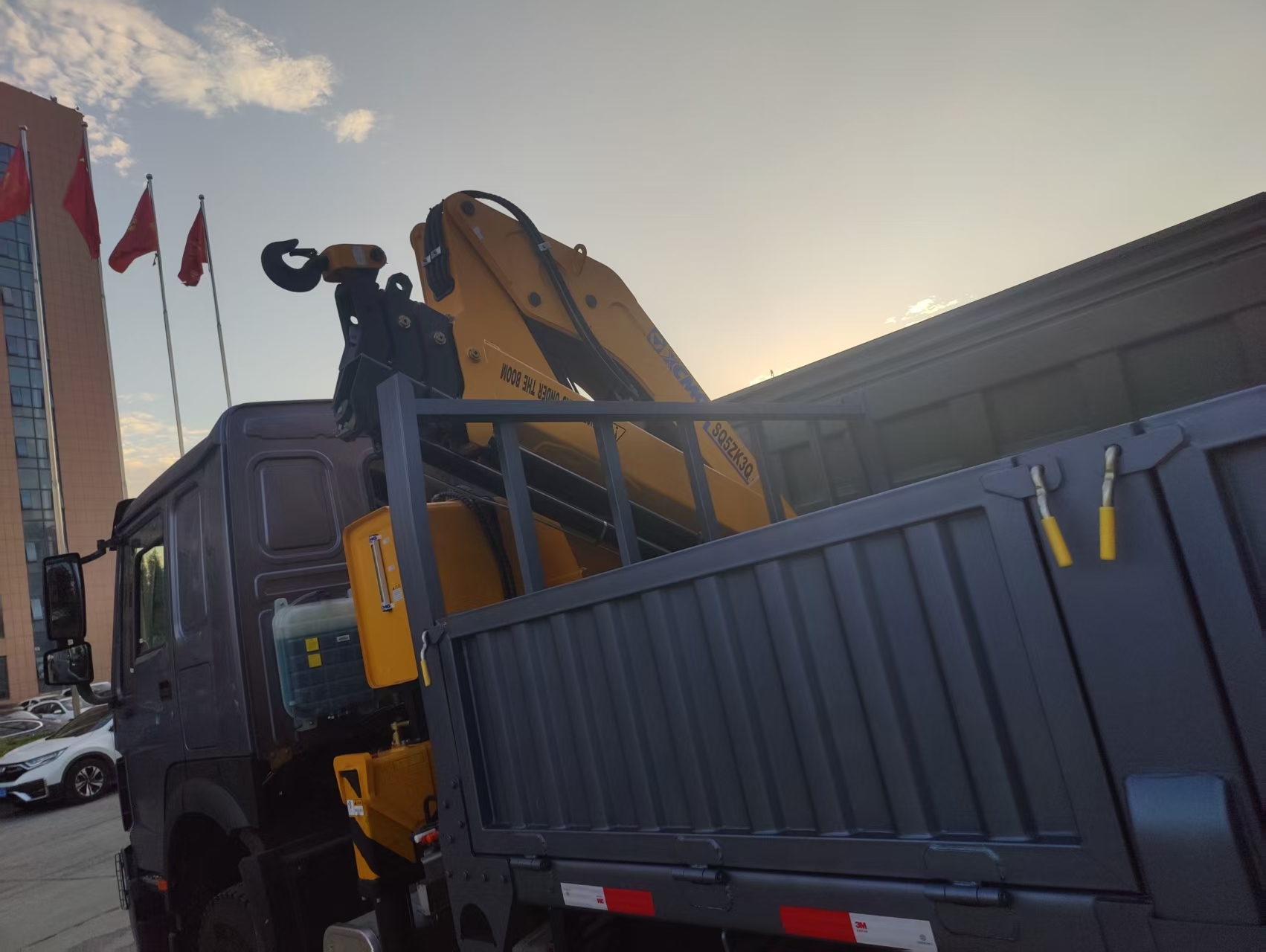

I. Crane Configuration: XCMG SQ5ZK3Q Folding-Arm Truck-Mounted Crane


Equipped with the original XCMG SQ5ZK3Q three-section front-folding arm crane, with a rated maximum lifting capacity of 5 tons and full 360° slewing operation. The folding-arm structure allows compact stowage with minimal cargo box space occupation, enabling lifting operations inside containers and in confined spaces. The hexagonal high-strength boom offers excellent bending resistance and is fitted with overload protection and a slewing buffer device. The hydraulic system delivers stable operation, combining both lifting and cargo transport functions — ideal for equipment relocation, pipe loading/unloading, municipal engineering, and other applications.

II. Powertrain & Drivetrain


Engine: WD615.47 inline six-cylinder water-cooled turbocharged intercooled diesel engine — ample power, strong adaptability to working conditions, mature and reliable, easy to maintain.
Transmission: HW19710 10-speed manual gearbox — 10 forward gears + 2 reverse gears, wide ratio range, stable performance on gradients and under heavy loads.
Axle Configuration: VGD95 front axle, MCX16ZG heavy-duty drive axle — high load capacity, robust chassis structure, suited to long-haul transport combined with frequent lifting operations.

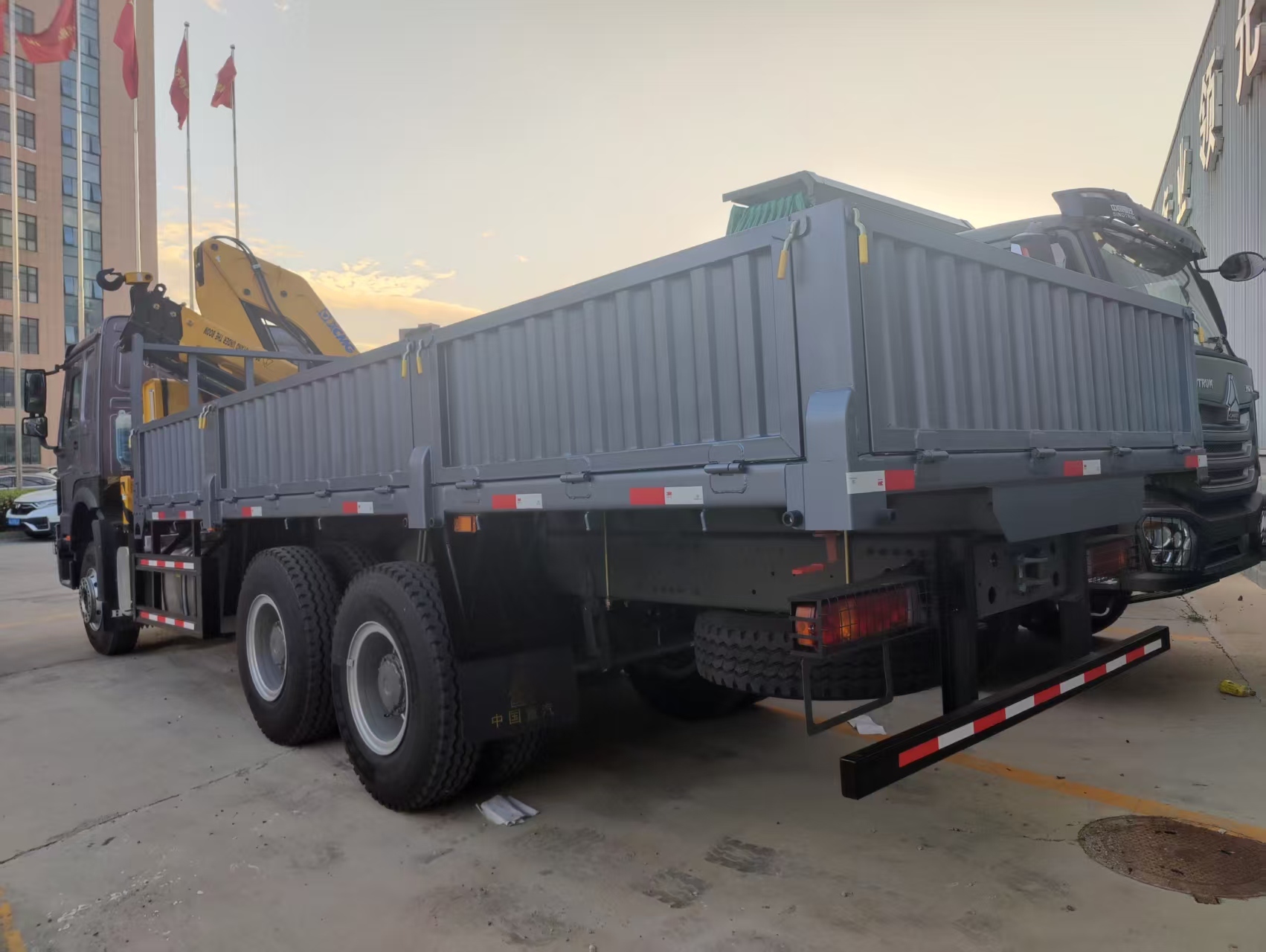

III. Cargo Box Configuration


External dimensions: 6250 × 2300 × 550 mm
Floor thickness: 3 mm; side panel thickness: 1.5 mm, vertical corrugated structure — higher rigidity, resistant to bulging and deformation, reliable welding, wear and impact resistant, meeting high-capacity cargo requirements.

IV. Cab Configuration


HW76 extended cab, two-person seating, with a single sleeper berth.
Sleeper dimensions: 2100 mm (L) × 610 mm (W) — ample cab space, meets rest requirements on long hauls, good ride comfort.

V. Overall Vehicle Advantages


Integrates transport and lifting in one unit; the folding-arm crane takes up little cargo box space, ensuring sufficient load capacity. The chassis powertrain is mature, durable, and reliably load-bearing. The cab with sleeper is suited to cross-regional long-distance operations. One machine with multiple uses reduces overall operating costs — widely applicable to engineering material transfer, equipment lifting, urban and rural freight, and many other scenarios.
