Specifications
Supply Ability :
3,000 units per month
Model :
ZZ1257N3841W
Model Number :
ZZ1257N384JB1
MOQ :
1 Unit
Delivery Time :
10-30 working days
Tank Body Capacity: :
10CBM
Payment Terms :
L/C,T/T,Western Union
Product Name: :
Mixer Truck
Transmission :
HW19710(10 forwards & 2 reverses)
Price :
Negotiation
Engine: :
WD615.47
Drive Type :
6×4
Certification :
ISO/3C/BV/IFA/SGS
Place of Origin :
China
Packaging Details :
Waxing in Bulk ship, Roro ship, Container
Brand Name :
SINOTRUK
Description

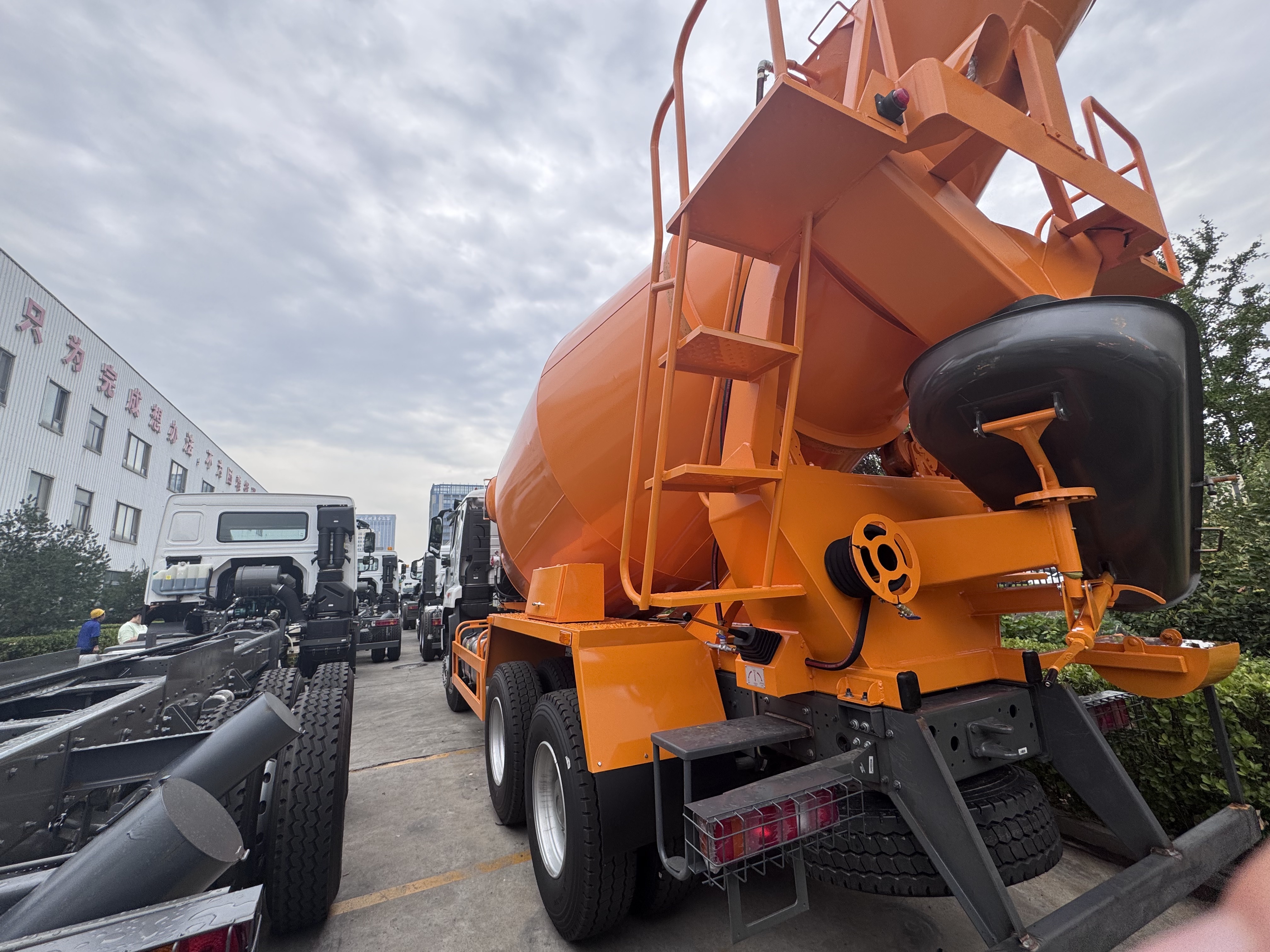

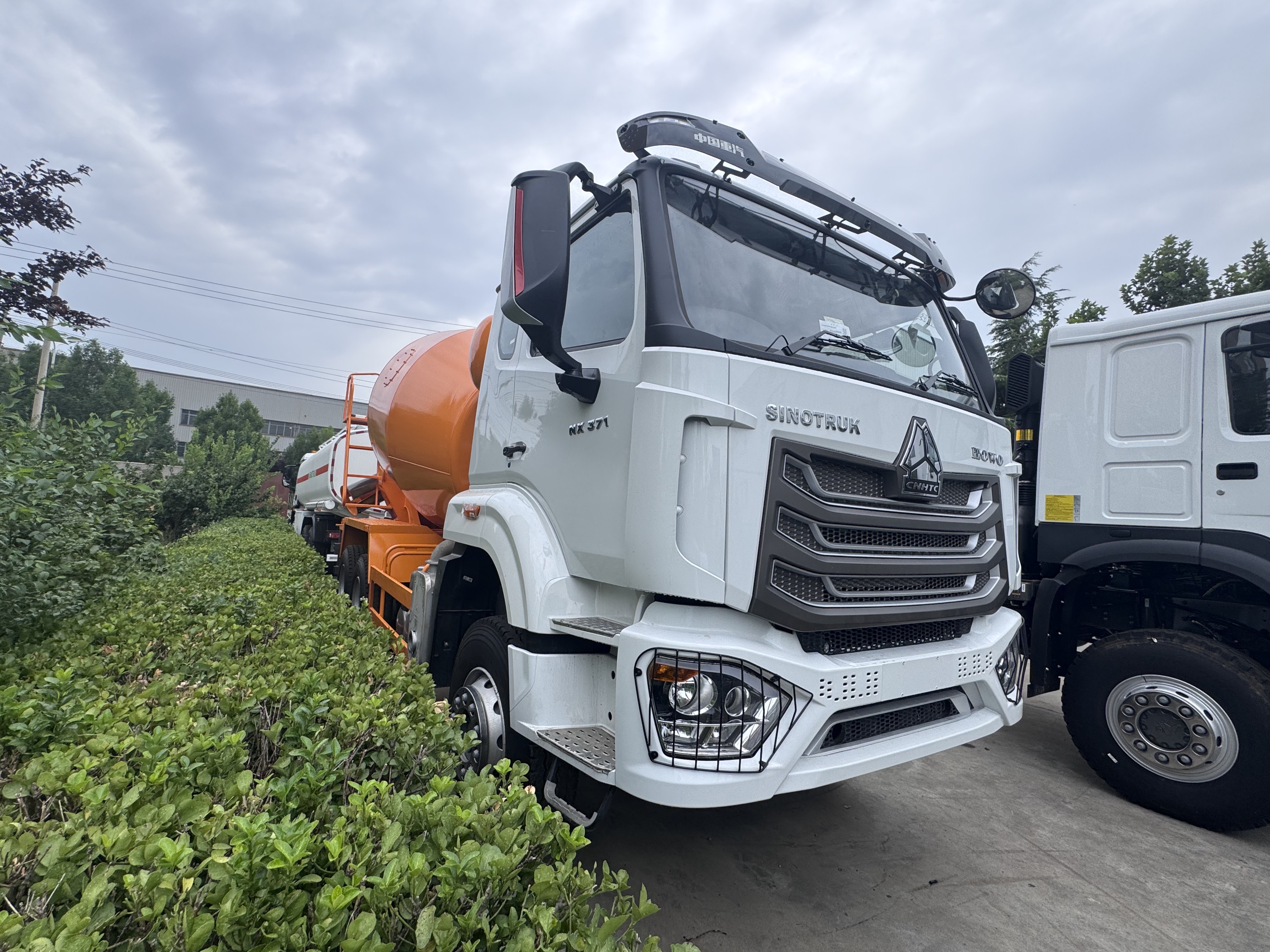

HOHAN SINOTRUK Concrete Mixer Truck 371HP White Euro II Customized color option


SINOTRUK WHITE HOWO 371HP CONCRETE MIXER TRUCK LHD


Description:


The stirring tank is composed of highly wear-resistant steel plate and cage mold, which ensures the concentricity and roundness of flanges, cylinder assembly and rolling element, and ensures the normal operation of the vehicle. The main body of the tank adopts double spiral blades, with moderate density and conical shape. There is a symmetrical mixing plate at the front goalball. Blades and guide blades are installed in slots, so materials are used faster.


Specification:


SINOTRUK WHITE HOWO 371HP Concrete Mixer Truck
Model ZZ1257N3847JB1
Drive Type 6×4
Engine
WD615.47 , 371HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L

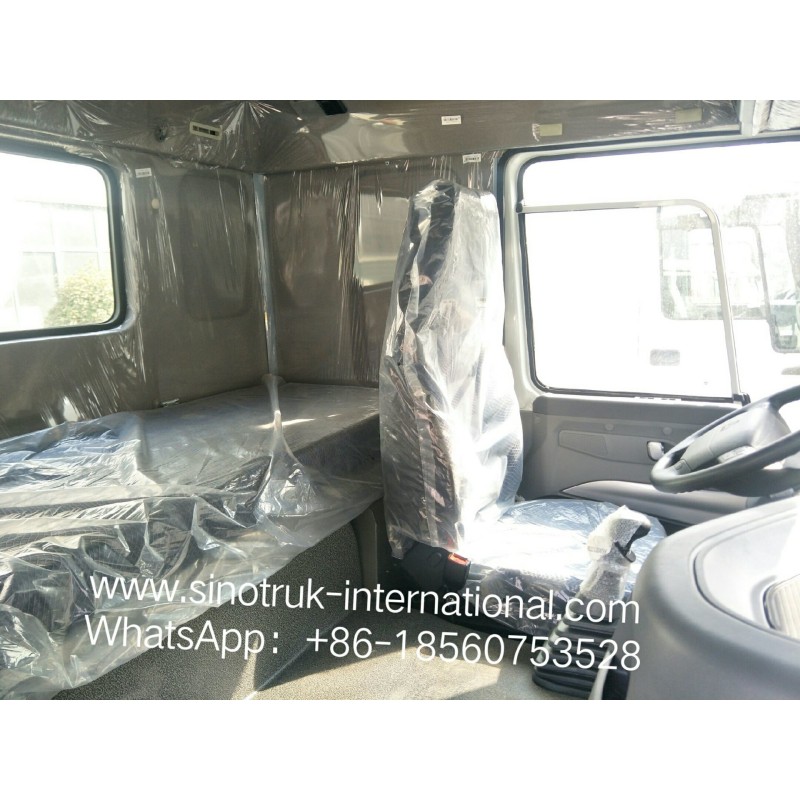

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch

Single disc dry coil Spring Clutch, 430mm diameter, hydraulically operated Air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 8604×2496×3950(mm)
Tank body Capacity 10CBM
The curb weight 12800(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.



Applications:


Suitable for mixing transition concrete, construction site, road maintenance and other infrastructure construction business.


Competitive Advantage:


1) The product has advanced technology, complete functions, excellent performance, reliable quality and easy operation.


2) The structure of the machine is optimized, the special mold is made, the appearance is beautiful, the concrete is mixed evenly, the discharge is uniform, and the residual rate is low.


3) Imported hydraulic pump, hydraulic motor, reducer.


4) Adopt high strength steel plate, long service life.


5) Overall structure optimization, low center of gravity, high operation efficiency.


6) Wide range of products, tank capacity 6-18 cubic meters.


7) Choose a variety of auxiliary devices.


8) Match all concrete mixer chassis.


9) Based on strong technical support and top technology, the truck is of higher quality and more reliable


10) Competitive price, cost-effective


11) Fast and efficient supply of spare parts to bring you more convenience


12) Fast delivery time. We can arrange production accurately and quickly according to your needs
