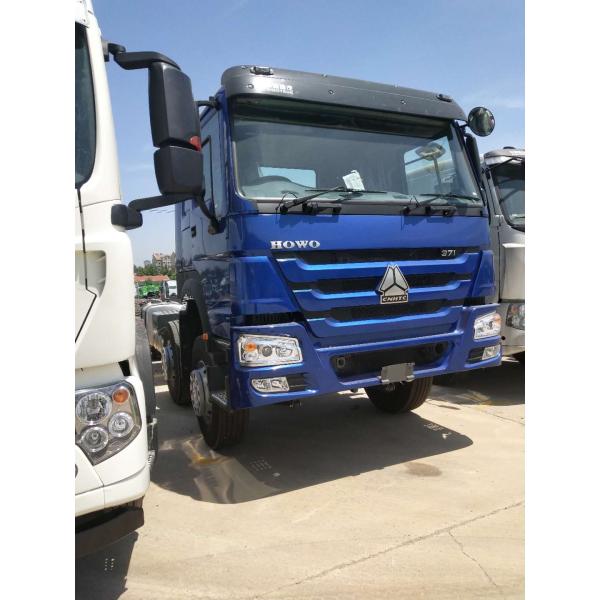

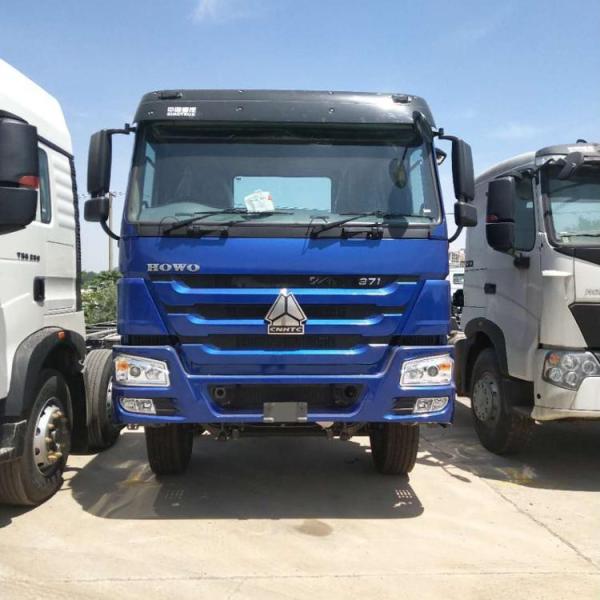

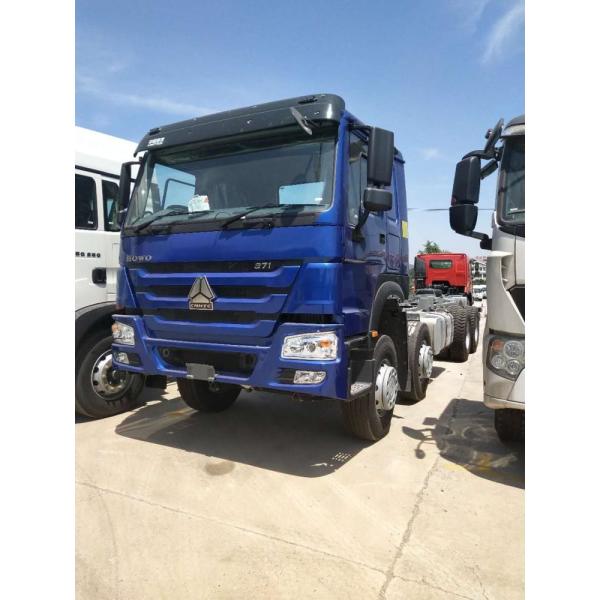

HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
HOWO 8x4 Cargo Truck Chassis
Specifications
Condition :
New
Emission Standard :
Euro 2
Brand Name :
sinotruk
Place of Origin :
Hubei, China
Fuel Type :
Diesel
Engine Capacity :
> 8L
Horsepower :
351 - 450hp
Transmission Type :
Manual
Size :
11000*2500*3100
Gross Vehicle Weight :
11000
Capacity (Load) :
35000
Drive Wheel :
8X4
Product name :
8x4 carfo truck chassis
Color :
Customer's Request
Wheelbase :
1800/3800/1350
Tire :
12R22.5
Engine :
WD615.47
Max speed :
90km/h
Transmission :
HW19710,10 Forwards gear & 2 reverse gear
Drive type :
8*4
Port :
qingdao
Supply Ability :
1 Unit/Units per Week
Price :
$44,000.00/Units >=1 Units
Description

HOWO 8x4 Cargo Truck Chassis

Cabin

Driving type 8x4 RHD

HOWO 8x4 Cargo Truck Chassis

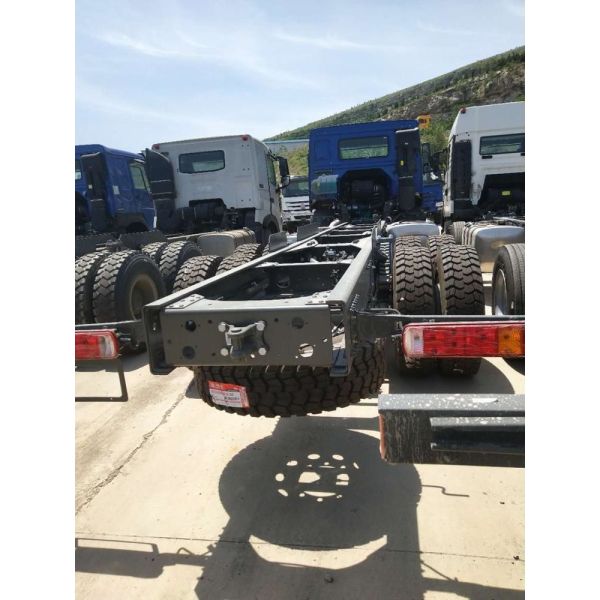

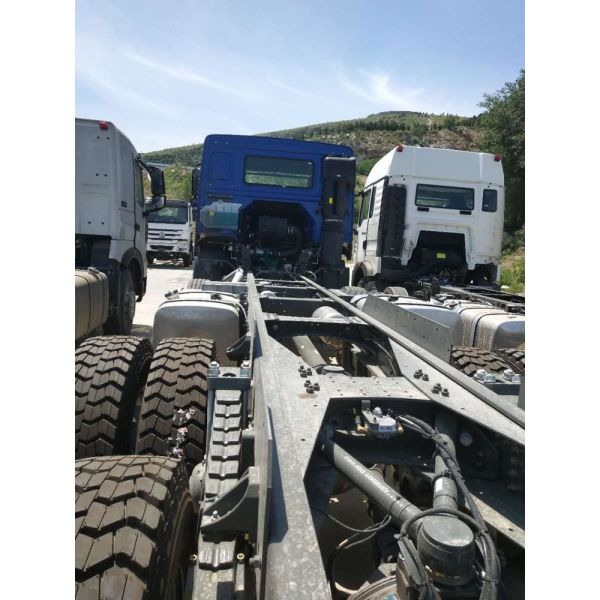

HW 76 cab, with air condition and one sleeper. 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H) mm

11000×2500×3150

Wheel base (mm)

1800+3800+1350

Weight in KGS

Tare Weight

11000

payload

35000

Front axles loading capacity

2x7000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

90

Engine

Brand

SINOTRUK

Model

WD615.47

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371

Emission standard

Euro II

Gearbox

HW19710,10 Forwards gear & 2 reverse gear

Towing hitch

Equipped for towing pulling trailer

Steering

ZF8098 power steering, hydraulic steering with power assistance

Clutch

Reinforced diaphragm clutch, diameter 430 mm

Fuel tank

400 liters Aluminium oil tank

Tire

12R22.5 tubeless tyre with one spare

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
