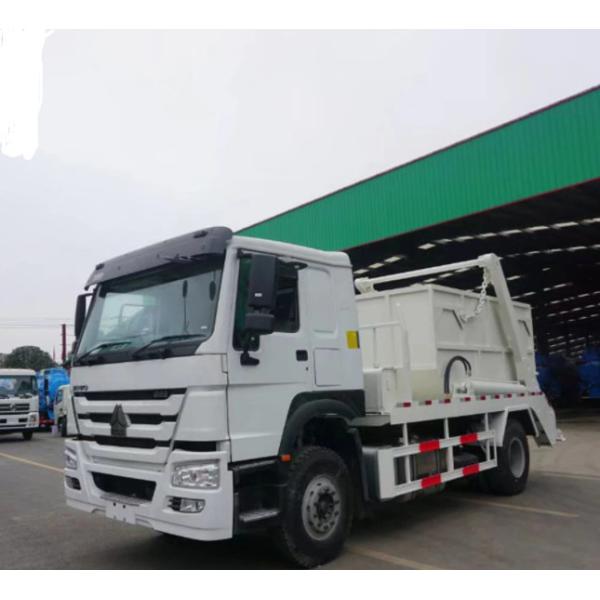

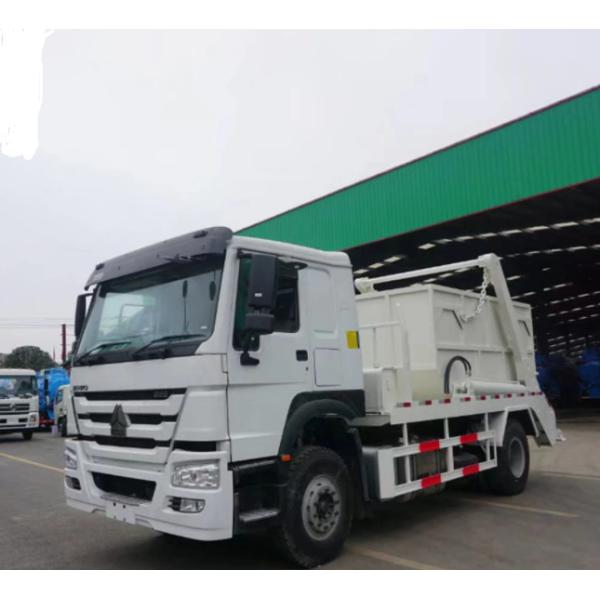

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
Specifications
Applicable Industries :
Hotels, Building Material Shops, Restaurant, Food Shop, Construction works
Showroom Location :
Egypt, Philippines, South Africa, Nigeria
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Engine, Gearbox
Condition :
New
Drive Wheel :
4X2
Type :
Rear Loader
Transmission Type :
Manual
Emission Standard :
Euro 2
Fuel Type :
Diesel
Engine Capacity :
9.726L
Size :
8500*2550*3300
Gross Vehicle Weight :
9800
Place of Origin :
China
Brand Name :
Sinotruk
Warranty :
1 Year
Product name :
Skip loader
Garbage truck type :
Swing arm
Horse Power :
336hp
Transmission :
10 forwards and 1 reverse
Garbage box Volume :
12 CBM
Application :
Collected Municipal Refuse
Emission standard :
Euro II
Wheelbase :
4600mm
After Warranty Service :
Video technical support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Philippines, Kenya, South Africa
After-sales Service Provided :
Video technical support, Online support, Field maintenance and repair service
Certification :
ISO9001
Packaging Details :
Nude package with Wax
Shipped by Container or RORO vessel by SEA
Supply Ability :
100 Unit/Units per Month
Price :
$42,900.00 - $46,500.00/Units
Description

SINOTRUK HOWO 4x2 Heavy Duty Swing Arm Trash Truck

(There is also 6x4 Swing arm trash truck etc)

HOWO swing arm trash truck highlights :

1. Swing arm garbage truck is characterized by separated trash bin and truck chassis, realizing the combination use of one truck with multiple trash bins, circular transport.

2. The cargo hopper has square-shape and ship-shape, the square-shape is used for the pit type, and the ship-shape is placed on the ground, fully improves the transport capacity, especially suitable for short-distance transport, such as the sanitation department to clean up the urban garbage, transport and so on.

3. The truck can be designed to be fully enclosed in order to prevent light cargo from falling in transit.The garbage bucket can be hoisted up and down, and the working cycle time of swing arm is 60S.

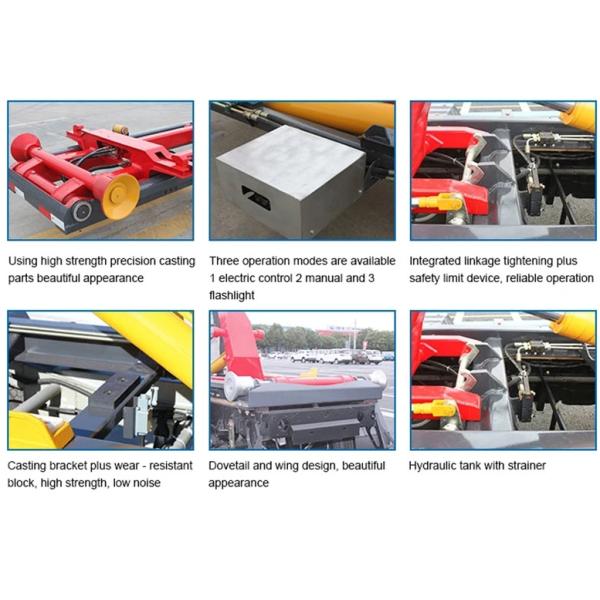

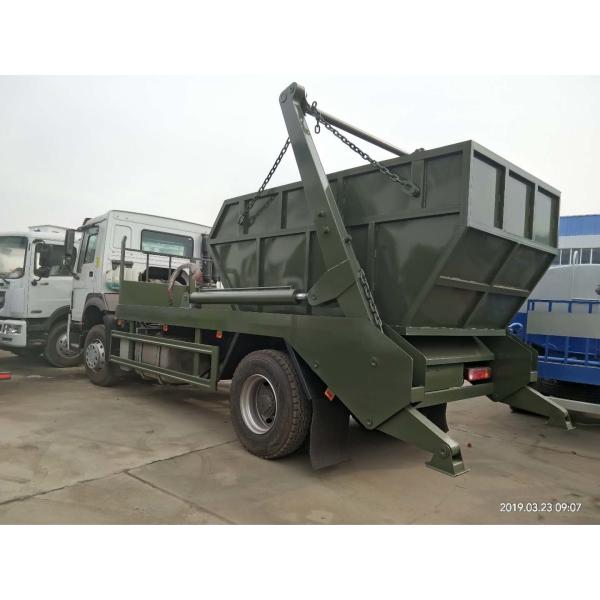

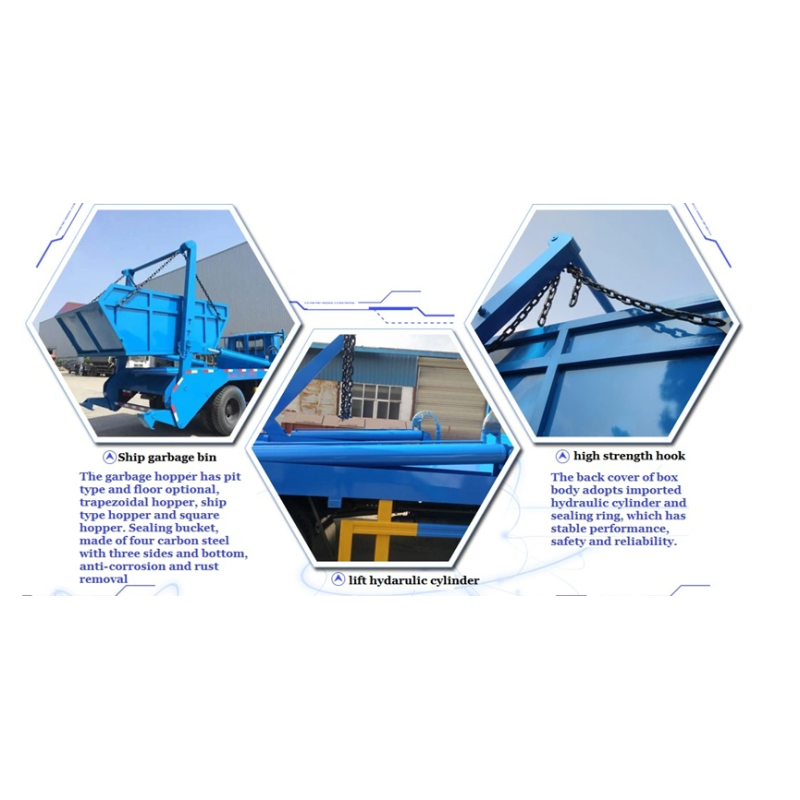

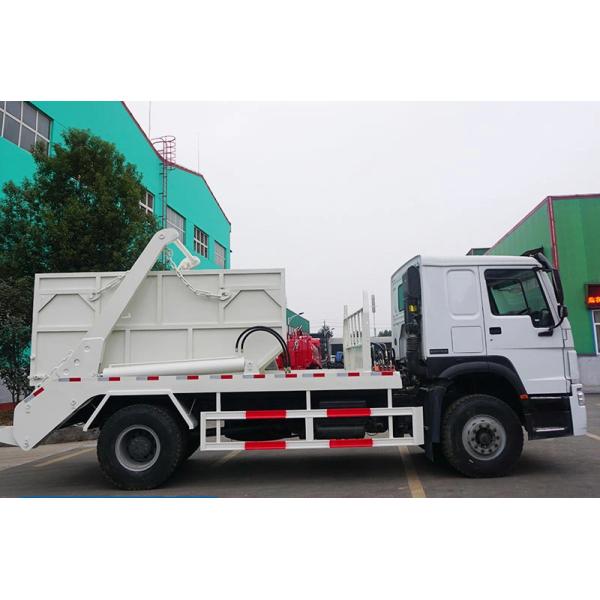

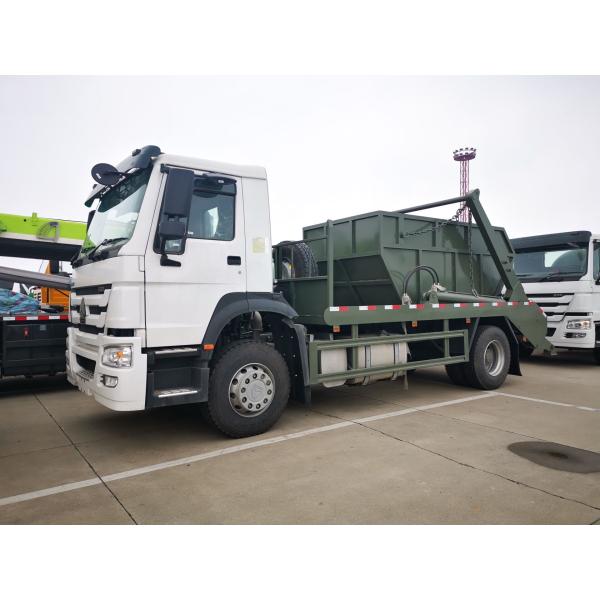

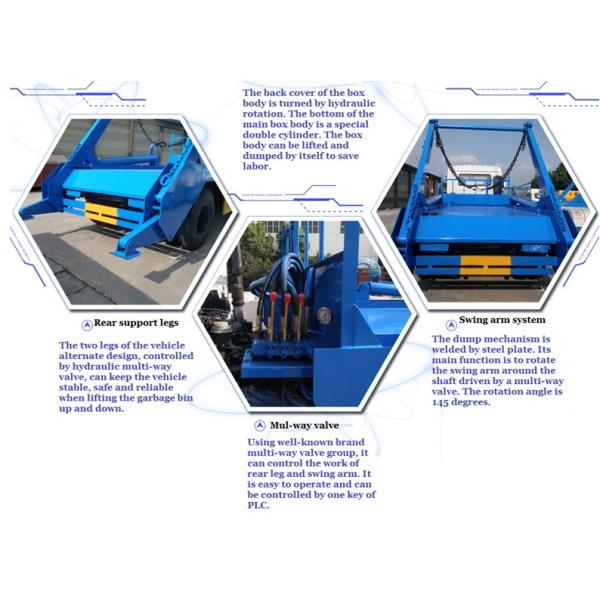

Details photos for reference

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 WheelsSINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 WheelsSINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 WheelsSINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

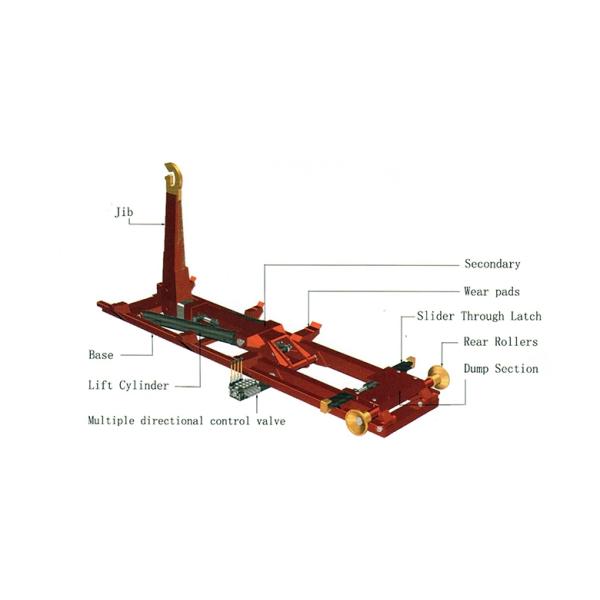

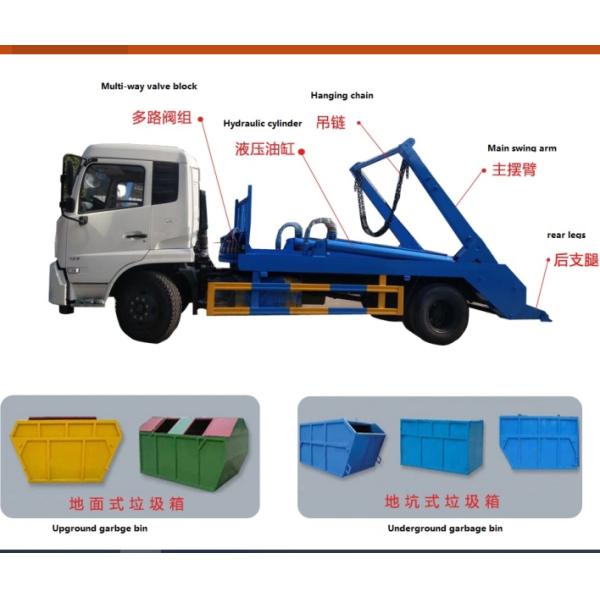

Swing arm trash truck operation

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 WheelsSINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 WheelsSINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

Specifications of HOWO 4X2 Swing Arm Trash Collection Truck, 14CBM

Cabin

Driving type 4x2 LHD

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

2080 cab, with two seats, with air condition, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

8850x2550x3400

Wheel base (mm)

4600

Wheel track (front/rear) (mm)

1805/1595

Approach/Departure angle(°)

18/19

Weight in KGS

Tare Weight

9825

payload

16000

Front axles loading capacity

1x7000

Rear axles loading capacity

1x1600

Max. driving speed(km/h)

102

Engine

Brand

SINOTRUK

Model

WD615.69

Type

4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

336HP

Emission standard

Euro II
Material of garbage container Q235 carbon steel
Operation control system Electrically hydraulic control
Swing arm operating system Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc.
Especially suitable for Short distance transportation, sanitation department cleaning, transportation, etc.
Swing arm maximum pivot angle 145°
Hoisting time 30S
Unloading time 50S

Shipment by different vessels

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

Our Advantages

1) Favorable price: Factory price, very competitive in the market. We, SINOTRUK Hubei Huawin is SINOTRUK branch factory.
2) In time Warranty: One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.
3) In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.

4) Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.

Company brief introduction:

SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the No. 1 for exporting, specialized in the researching, developing and manufacturing of heavy trucks and related key parts.

Now SINOTRUK has 6 truck production factories, 2 engine factories, 2 gearbox factories, 1 axle factory, and cooperated with other international company (STEYR, Germany MAN). MAN introduce its all series products and core technology through SINOTRUK.

WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles, with annual capacity is over 20 000units of all kinds special trucks.

SINOTRUK includes: cargo truck, tractor truck, dump truck, concrete mixer, tanker truck, special purpose truck, garbage truck, tank truck, crane truck, flat bed semi trailer etc.

SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

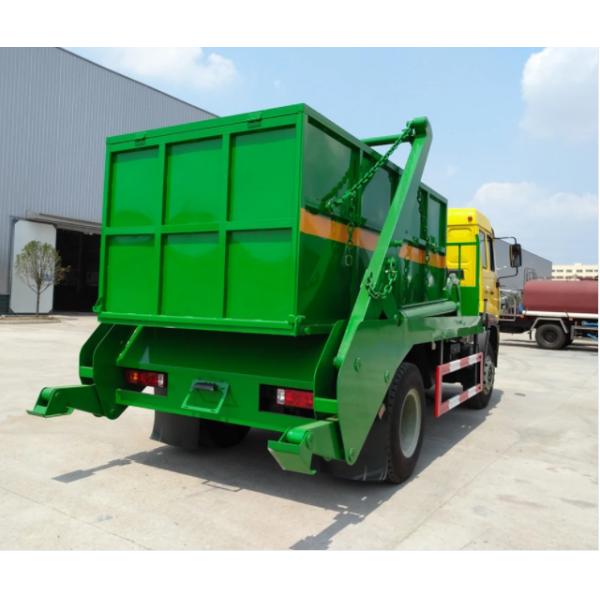

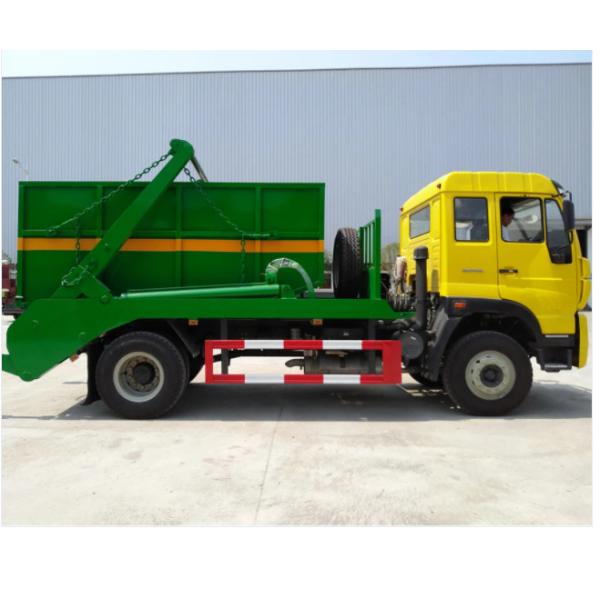

Other trucks photos
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels
Our team in Canton Fair
SINOTRUK HOWO 4x2 Heavy Duty Truck Swing Arm Type Refuse Collection Truck, 6 Wheels

Warmly Welcome to China and visit our factory !
