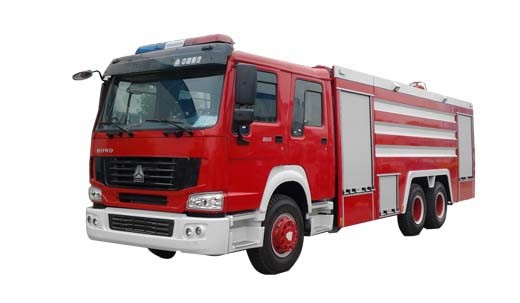

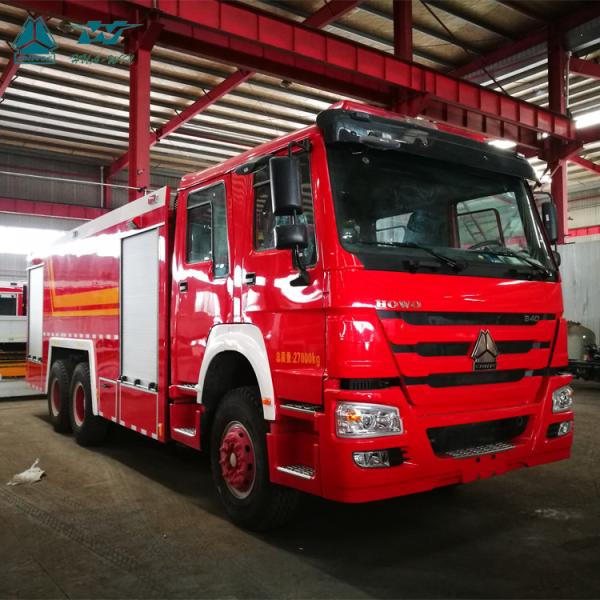

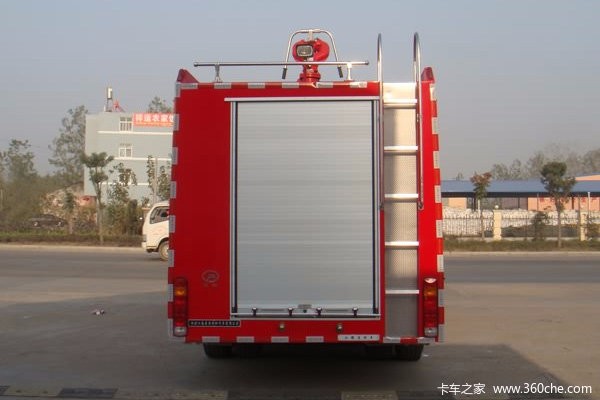

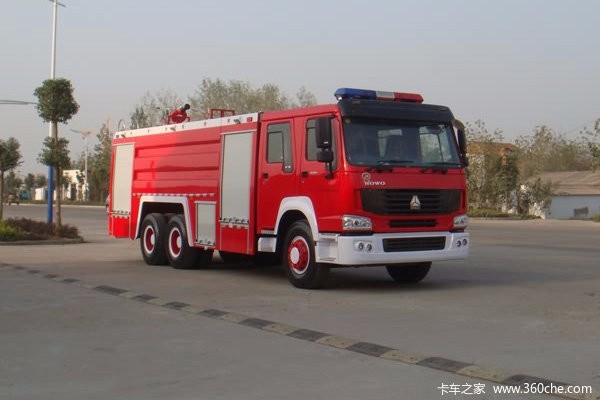

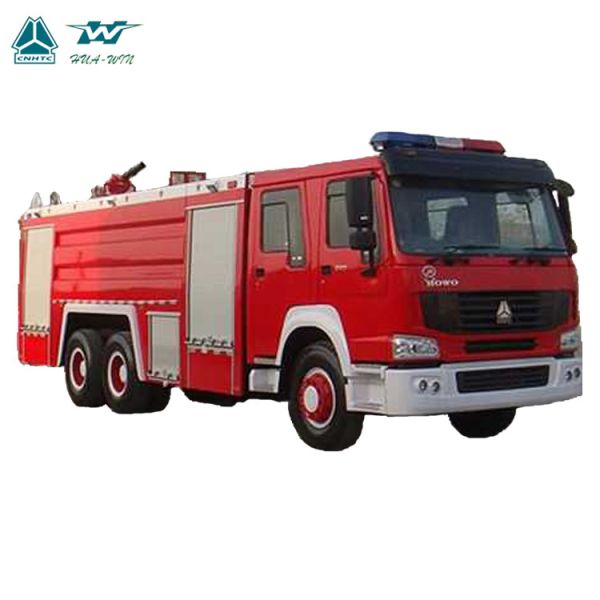

SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
Specifications
Drive Wheel :
6x4
Type :
Tanker, Fire Fighting Truck
Transmission Type :
Manual
Condition :
New
Horsepower :
251 - 350hp
Tank Capacity :
7001 - 10000L
Emission Standard :
Euro 2
Fuel Type :
Diesel
Max. Work Height :
60m
Size :
10080x2496x3000 mm
Place of Origin :
Hubei, China
Brand Name :
SINOTRUK
Model Number :
ZZ125
Color :
Red or as customized
Driving type :
LHD/RHD
Water Tank Capacity :
10,000 Liters
Engine :
SINOTRUK WD615.62
Engine Type :
Mechanical
Horse Power :
266ps
Cabin :
Crew Cabin
Transmission :
HW13710 manual
Shipment :
RO-RO/40FR/Bulk Vessel
Packaging Details :
1 unit/40FR, nude pack for RO-RO or bulk vessel
Port :
Main Port China
Supply Ability :
500 Unit/Units per Month
Price :
$58,800.00 - $63,600.00/Units
Description
Product Description

Warranty & After Sale Support

Warranty
Guarantee the main parts engine, gearbox and axles for one year or within 100,000 Kilometers (which comes first) under regular maintenance and correct operation.
After Sale Support
Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.

Specifications for HOWO Fire Fighting Truck



Cabin
Driving Model: 6x4 Left Hand Drive or Right Hand Drive
Crew cabin, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Condition: brand new


Engine
Model: SINOTRUK WD615.62
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.
Emission Standard: Euro II
Displacement: 9.726L

Transmission
HW19710 manual gearbox, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle
HF9, 1x9000 KGS
Steering with doubleT-cross section beam

Rear Axle
ST16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8

Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake


Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires
315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires
Tank Capacity
Water Tank Capacity: 10,000 Liters
Foam Tank Capacity: 2,300 Liters
Cargo Body

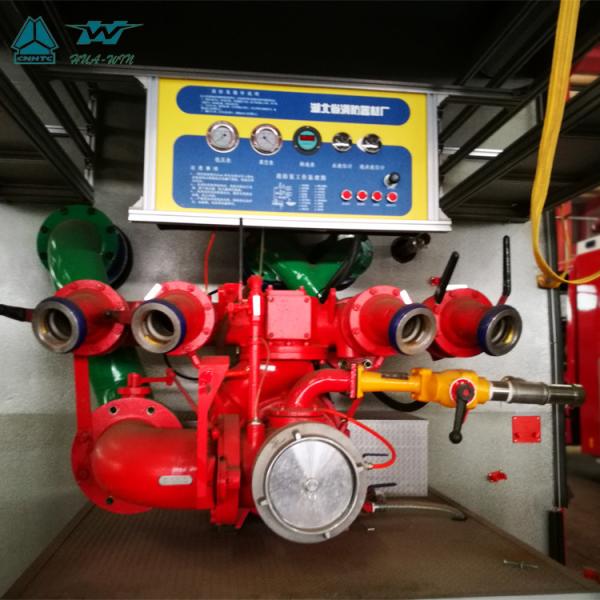

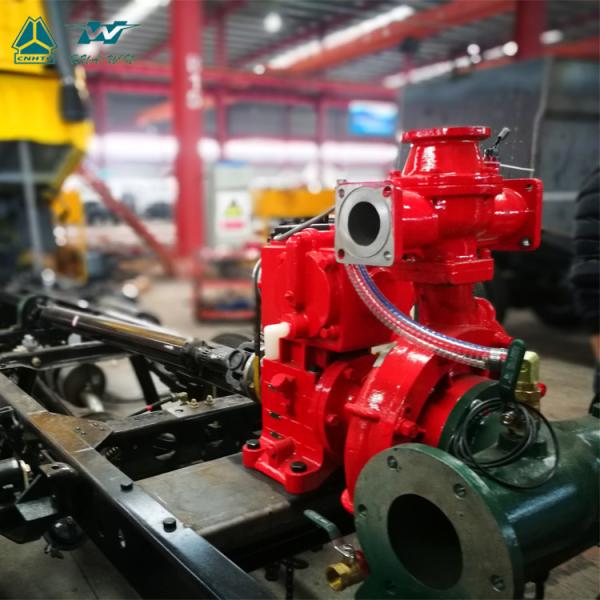

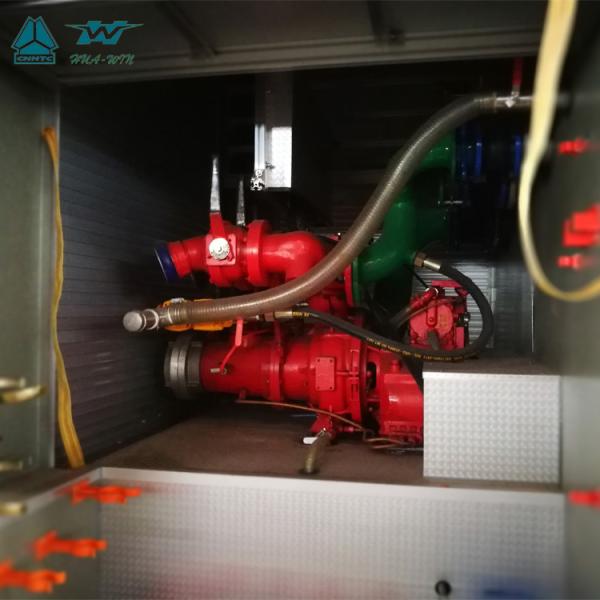

Fire Pump Model: CB20.10/30.60-XZ
Monitor Model: PL48
Water Pump Flow: 60/30 L/s
Water Pump Pressure: 1.0/2.0 Mpa
Monitor Flow Rate: 48 L/s
Monitor Range > = 60 m
Water Pumper Inlet Diameter: 1*150 mm
Water Pumper Outlet Diameter : 4*80 (normal pressure)& 2*65(medium pressure) mm
Water Tank Inlet Diameter: 4*80 mm
Proportioning Mixer: PH64
Overall Dimension
10080×2496×3000 mm
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
Our Service
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
Factory View
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
Shipping
SINOTRUK HOWO 6x4 12,000 Liters Fire Fighting Truck for Sale
