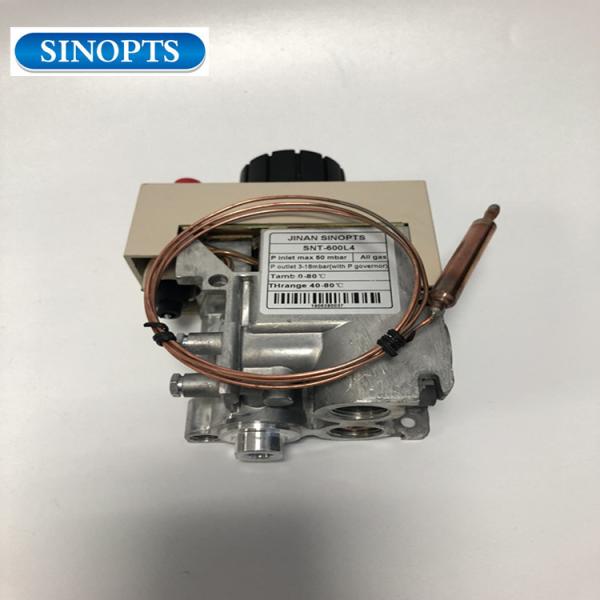

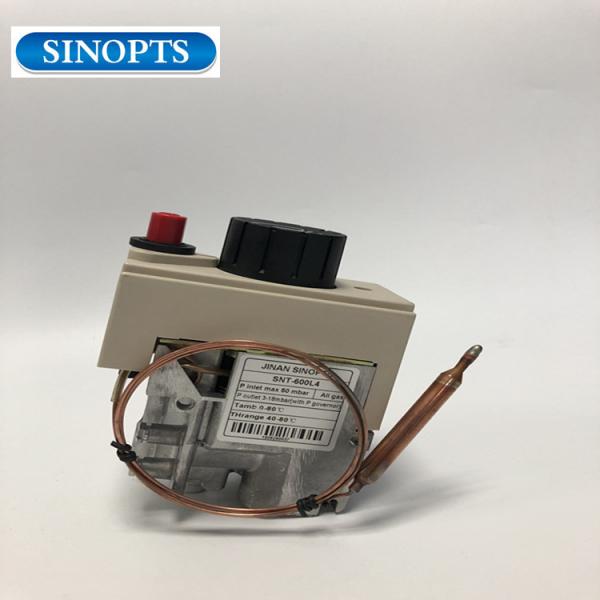

Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Specifications
Model NO. :
SNT-600L4
Material :
Brass
Type :
Self-Operated
Model Number :
Snt-600L4
Application :
Gas Oven
Pressure :
Low Pressure
Function :
Adjustable Thermostat
Features :
Eco-Friendly
Port Size :
3/8′′
Transport Package :
Carton Box or According to Your Requirement
Specification :
8*7*10
Trademark :
Sinopts
Origin :
China
Supply Ability :
300000 Sets/Year
Temperature :
High Temperature
Certification :
CE, ISO9001, UL CSA
Media :
Gas
Standard :
Standard
Connection Mode :
Internal Thread
Power :
Manual
Samples :
US$ 20/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
Description

Product Description

Product Description:
The gas valve is used on various commercial fryers, pasta boilers and other appliances. The valve is rated at 100 to 340 degrees, inlet 1/2" BSP, outlet 3/8" BSP, thermocouple connection M9X1, wire length can be customized. The valves combine a thermostat and flame failure device in one unit. They are supplied with the plastic body and control knob.
With pressure regulator. Max capacity can be 5.0 CBM/hour.
Main Features:
1) Thermoelectric flame supervision device with restart interlock.
2) Pressure reglator with. Direct pressure regulator class B.
3) Pilot gas rate adjuster.
4) With inlet and outlet pressure test points
5) Max capacity can be 5.0CBM/hours
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Product Specification:
SINOPTS THERMOSTAT TECHNICAL DATA
Operating temperature 100ºC-340ºC Customed for per request
Intake way 1/2­­---14NPT . Quick connector Customed for per request
Outlet way M16×1.5 , 3/8-19NPT Customed for per request
Material Aluminum alloy
Maximum intake pressure 50mbar
Exhaust pressure 3-18mbar
Voltage regulator Without
Sealed way Rubber seal
Thermocouple interface M8×1.0 , M9×1.0 Customed for per request
Drive mode Thermal expansion
Suitable gas Liquefied petroleum gas, natural gas
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control

Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control

Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control

Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Oven Control Valve Adjustable Gas Fireplace Thermostat Temperature Control
Our Service:
1. 24h on line service
2. We can supply free spare parts for replacement if they are destroyed during devliery.
3. quick feedback and on time delivery, life long service.
4. competitive price with good quality
5. Have exported the product to many countries, such as Russia, Brazil, Uzbekistan,Australia, etc.
6. Good feedback from our customers.
