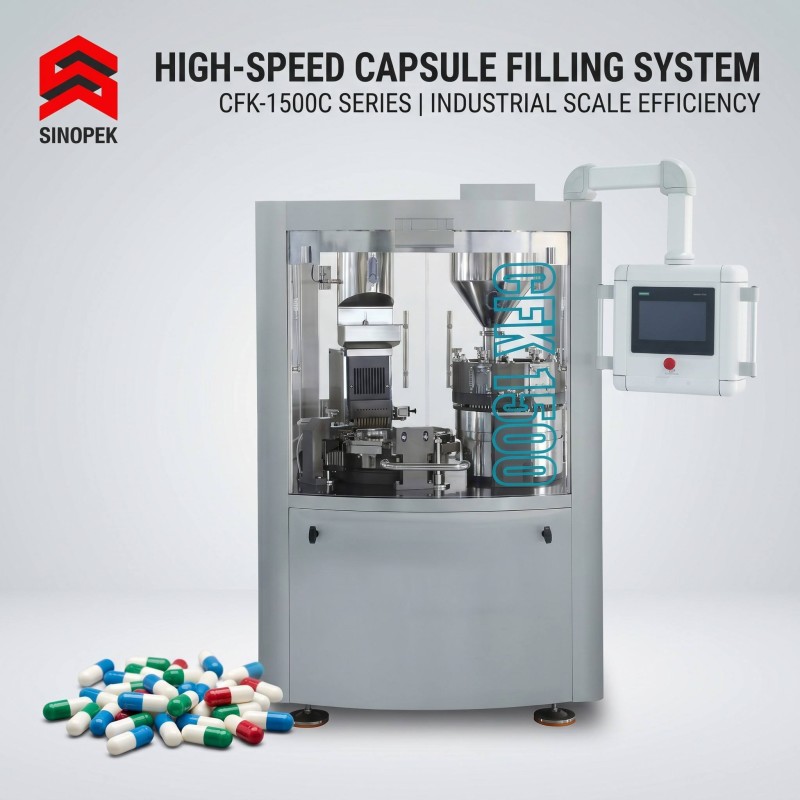

CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
Specifications
Model Number :
CFK-1500C
Machine Weight :
1,400 Kg
Place of Origin :
China
Dimensions :
1230 x 1175 (+382) x 1955 mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Motor power :
8kw
Noise :
<75DB(A)
Delivery Time :
15-30day
Vacuum :
72m³/h, -0.03~-0.05Mpa
Filling error :
±3.5%-±4.5%
Supply Ability :
500 Until /Year
No.of segment bores :
11 Holes (Single Row)
Certification :
CE、GMP、ISO
Brand Name :
Sinopek
Output :
90,000 pcs/h
Packaging Details :
Wooden Box
Dust :
20Kpa, 210m³/h
Suitable for Capsules :
000, 00.0, 1, 2, 3, 4, 5#
MOQ :
1
Power Supply :
380/220V 50Hz
Making rate :
Empty capsules 99.8%, Full capsules 99.8%
Description
Product Description
The CFK-1500C automatic capsule filling machine utilizes intermittent rotary operation with hole tray metering filling. Featuring precise and beautiful design with stable and reliable operation, it automatically completes various procedures including sowing, separating, filling, waste sac removal, locking, and finished product export. The fully enclosed 10-station turntable with single-row 11-hole module design represents domestic single-row die production efficiency for hard capsule filling intelligent equipment.
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
Key Features
  • Fully enclosed 10-station turntable for easy cleaning, pollution-free operation, stable performance, and high precision
  • Measuring disc with three-dimensional adjustment mechanism ensures uniform gap between measuring disc and copper ring, reducing powder leakage and ensuring consistent loading
  • High-precision, high-configuration transmission mechanism significantly reduces equipment vibration during operation, greatly improving stability and service life
  • Modular powder filling mechanism for easy disassembly and cleaning
  • New design powder feeding device with compact structure, easy disassembly and cleaning
  • Lock bag cleaning device removes fine dust raised during capsule locking
  • Mold cleaning and blowing structure solves capsule extraction difficulties caused by strong viscous dust deposition in mold plane and cavity, improving capsule probability
  • Main electronic control components use imported brands with advanced control principles ensuring accurate program control and safety protection functions
  • Beautiful, dust-resistant human-machine interface with easy operation and complete functions
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
Application Scheme
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
CFK-1500C High-Speed Automatic Capsule Filling Machine | 90,000 pcs/h
Frequently Asked Questions
What is the basic working principle?
Can the machine fill different materials?
What capsule sizes can these machines accommodate?
What is the typical production capacity?
