Hydraulic briquette machine:

Hydraulic Briquette Machine also named dry power briquette machine. The Hydraulic Briquette Machine mainly applies on the briquette making of non-ferrous metal and ferrous metal mineral powder, it enters the furnace directly to increase the additional value. All metallurgy industry waste and accessory that need furnace use ball briquetting machine. Such as dedusting ash, pool mud, oxide, slag, iron flavor powder, aluminum ash powder, silicon manganese ore powder, etc. Pressed powder materials into a ball to reduce dust and facilitate transport. Such as iron powder, charcoal, clay, coke breeze, coal, lime powder, etc.

Feature of hydraulic briquette machine:

Briquette machine unique design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.

Requirements for materials

1. Material size about 80 to 200 mesh.

2. Materials are not allowed has hard metal objects to avoid damaging the pressure roller.

3. Return materials should not have too much clumps(≤3mm), return materials is not more than 50% in the feeding materials.

4. Supply of materials must be sufficient, use variable speed screw feeder is better.

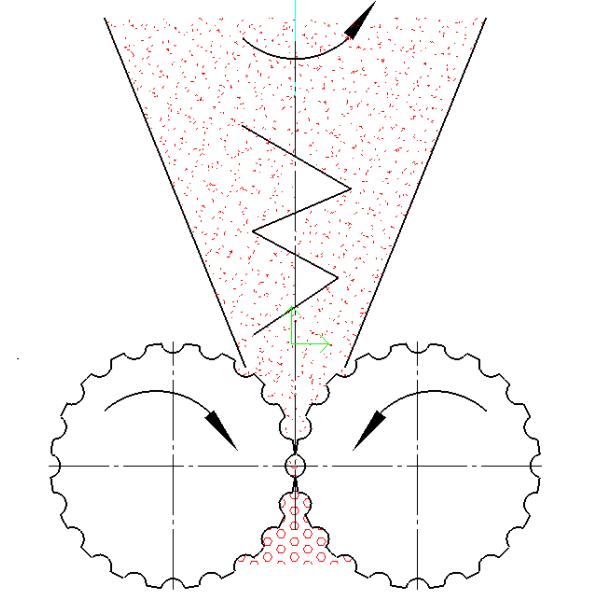

Working Principle

Hydraulic Briquette Machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll, Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product from the powder to briquette.
