Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Specifications
Type :
Drying Oven
Application :
BRIQUETTES PROCESSING
Condition :
New
Place of Origin :
Henan, China
Brand Name :
SINOLION
Voltage :
220V/450v
Power :
5.5-45
Dimension(L*W*H) :
2 meters per section
Key Selling Points :
Automatic
Warranty :
One Year
Weight (KG) :
1000
Applicable Industries :
Manufacturing Plant, Energy & Mining
Showroom Location :
None
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Gear, Motor, Gearbox
After-sales Service Provided :
Engineers available to service machinery overseas
Material :
industrial stainless steel, carbon steel
Installation :
Engineer's Guidance
Belt width :
1200-3800mm
length of dryer :
8m-36m
Operation temperture :
50℃-220℃
Steam pressure :
0.2-0.8Mpa
Steam consumption :
120-1200kg/h
Drying capacity :
60-600kg water/hour
Product name :
mesh belt dryer
Price :
$120,000.00/sets >=1 sets
MOQ :
1 unit
Description

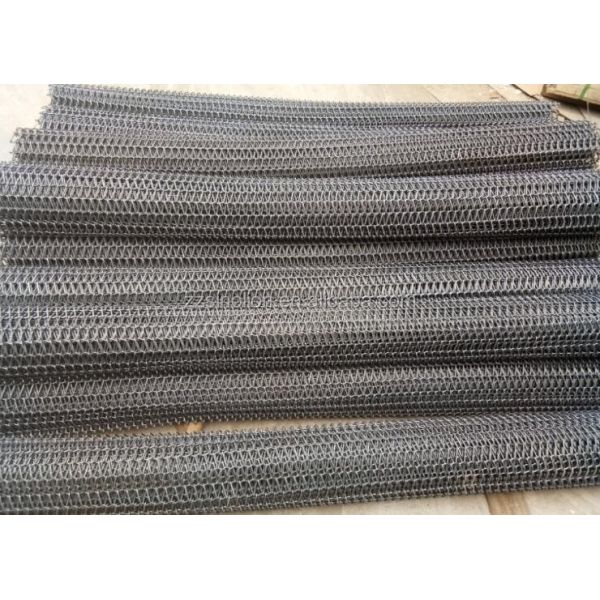

New design best sell conveyor mesh belt dryer machine for charcoal coal mineral briquettes use mesh belt or chain plate

Product Description

New design best sell conveyor mesh belt dryer machine for charcoal coal mineral briquettes use mesh belt or chain plate

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

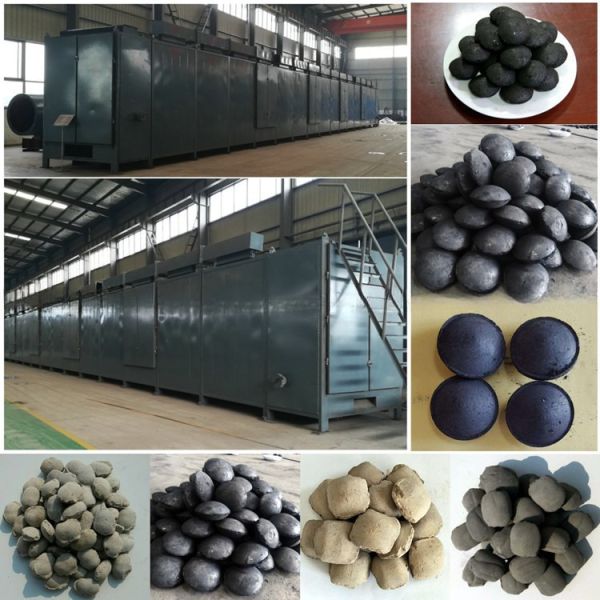

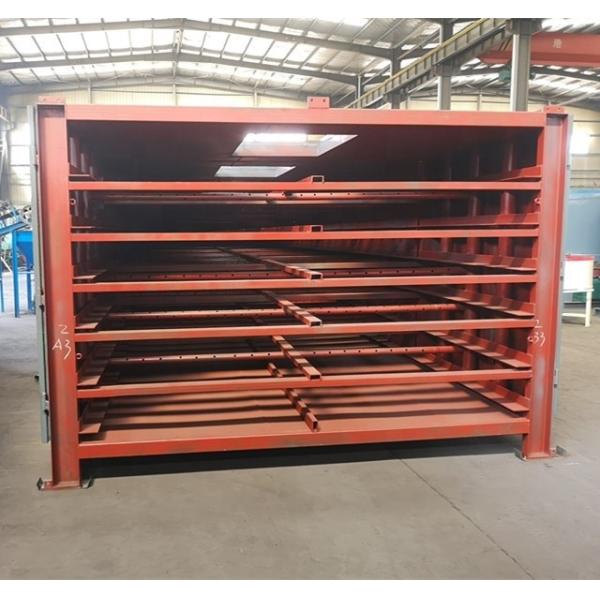

Description of briquette conveyor mesh belt dryer machine

1. carbon steel type for briquettes

2. stainless steel type for food, like fruits, vegetable and sea food ect.

The conveyor mesh belt dryer plant is also called as belt dryer, mesh belt dryer, conveyor dryer, The conveyor mesh belt dryer machine can be used in drying the material like charcoal briquettes, coal briquettes mineral powder briquettes , fertilizer briquettes and so on. All the wet briquettes which are in a certain shape and you do not want to

damage the shapes during drying, thisconveyor mesh belt dryer machine is your best choice!

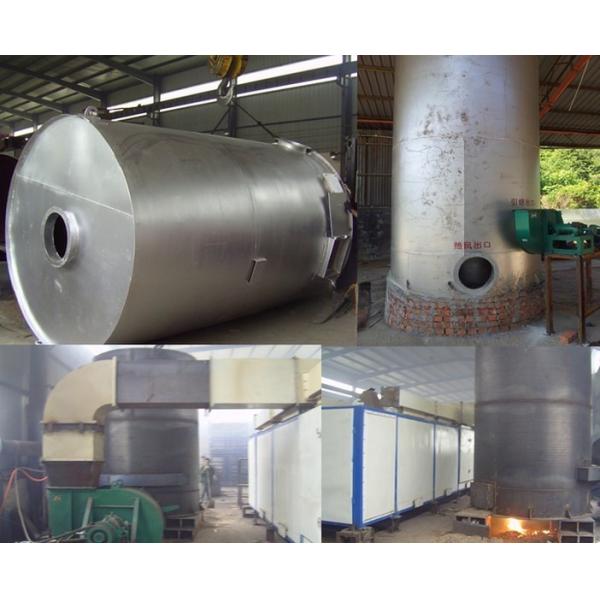

You need to build a furnace in your place, then heat wood or coal as power, when the wood or

coal burning, it will produce hot air. The mesh belt dryer have a draught fan, it will draw on the hot

air go though the dryer. In the top of the mesh belt dryer, it has a in-put door, you can put the coal

briquettes, then the coal briquettes will down to the belt. This mesh belt dryer also have a driving motor, the

speed of the driving motor is adjustable, you can control the speed of the belt.

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Main principle of briquette conveyor mesh belt dryer machine

Conveyor mesh belt dryer machine is a continuous and batch equipment and which the 2 -5 mesh belts heated by hot air. The main principle is to spread the materials on the belt and driven by the transmission device, which makes the materials on the belt driving uniform. Hot air flows across the materials and the water vapor out from the exhaust pipe to achieve the drying purpose.

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Feature of briquette conveyor mesh belt dryer

1. Small space to take. 2. Low investment. 3. High efficiency. 4. Large output and high evaporation strength 5. Standardized production, the number of segments can be increased according to the output.

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Main technical parameter of briquette conveyor mesh belt dryer machine

Model

DW-1.2-8

DW-1.2-10

DW-1.6-8

DW-1.6-10

DW-2-8

DW-2-10

DW-2-20

Quantity of unit

4

5

4

5

4

5

10

Width of belt(m)

1.2

1.6

2

Length of dry section(m)

8

10

8

10

8

10

20

Thickness of raw material spreading(mm)

10-80

Operation temperature(oC)

50-140

Steam pressure(MPa)

0.2-0.8

Steam consumption (kg/h)

120-300

150-375

150-400

180-500

180-500

225-600

450-1200

Drying time (h)

0.2-1.2

1.25-1.5

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.5-3

Drying capacity
(kg water/h)

60-160

80-200

85-220

100-260

100-260

120-300

240-600

Total power (kw)

11.4

13.6

14.6

18.7

19.7

24.5

51


Overall dimensions

L(m)

9.56

11.56

9.56

11.56

9.56

11.56

21.56

W(m)

1.49

1.49

1.9

1.9

2.32

2.32

2.32

H(m)

2.3

2.3

2.4

2.4

2.5

2.5

2.5

Weight (kg)

4500

5600

5300

6400

6200

7500

14000

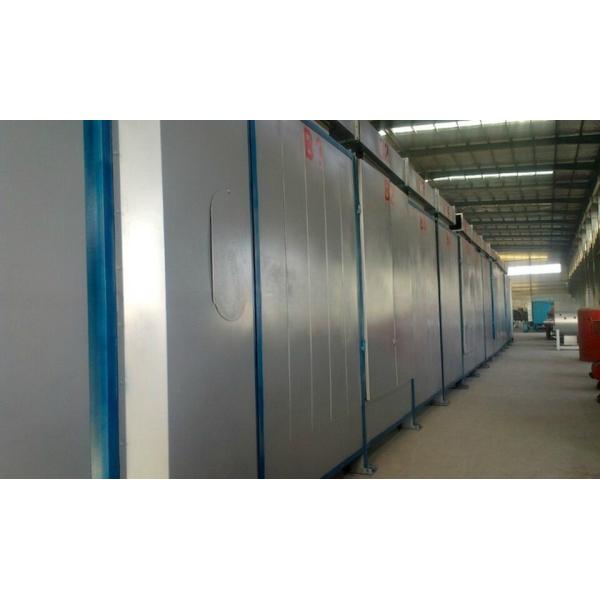

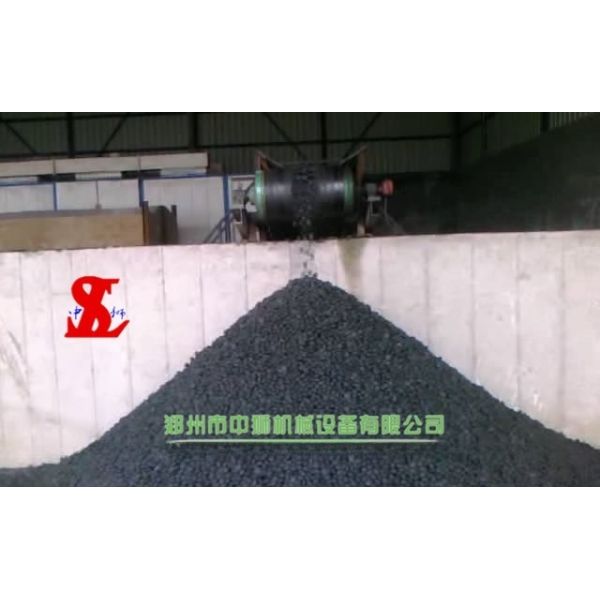

Some customers' mesh belt dryer working site.
Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

FAQ

1.What kind of material can be dried by conveyor mesh belt dryer machine?

Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.

2.What kind of fuel can be used with the conveyor mesh belt dryer machine?

Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.

3.What's the drying temperature of the conveyor mesh belt dryer machine?

Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.

4.How long will the briquettes stay in the conveyor mesh belt dryer machine?

Answer:Normally the drying time will be about 50-120 minutes.

5.Is the belt speed adjustable?

Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes

Our Services

Why us?

1.Pre-sale service:

1)Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2)Welcome to visit us at any time, we will pick you up.

2.Sale service:
1)Keep clients updated when our company gets advance payment.
2)Confirm production details with clients.
3)Take photos and send all pictures to customers during production.
4)Inspection and testing the product before delivery;
5)Clients are welcome to inspect the equipment when the equipment are ready to delivery. We will arrange cars, hotels and translators for customers.
6)logistics service if needed.

3.After Sale service:
1)Provide foundation drawing to the clients for installation.
2)Besides, our engineers are available to help with installation and workers training.
3)Repairing and maintenance if any problem occur in the warranty.
4)Spare parts and wearing parts will be offered with production cost in 10 years.
Company Information

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.

we will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to SINOLION for visiting and seeking common development.

Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral BriquettesSteam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral BriquettesSteam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral BriquettesSteam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
