Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Energy & Mining, Other
Showroom Location :
Canada, United Kingdom, United States, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Type :
Circular
Application :
firewood, woodchips, sawdust, firewood, woodchips
Place of Origin :
China
Brand Name :
Sinolion
Voltage :
380v/415v/440v
Dimension(L*W*H) :
depends on models
Weight :
1790 KG
Warranty :
1 Year
Product name :
Rotary Type Biomass Wood Chips Trommel Screen Firewood Garbage Trommel
Screen material :
steel plate, stainless steel
Power :
3-45KW
Dimension :
5613*1940*2390mm
Installation :
supply manual to guide user
Capacity :
60 cubic meters per hour
Feeding size :
less than 300mm
Discharge size :
as request
Color :
yellow, white, red, blue, gray( or as client request)
Price :
$13,100.00/sets 1-3 sets
MOQ :
1 unit
Description
Product Description
The firewood trommel screen is designed as an add on to a bulk processing system. Cleaning the wood in the last step before packaging for bulk retail sale. The trommel screen will efficiently remove all fines (dirt, gravel, wood chips & splinters) through the fine screen and most of the kindling and smaller pieces of wood through the coarse screen. With a constantly loaded in feed hopper.

Firewood tumbler also known as a rotary screen, is a mechanical screening machine used to separate materials, firewood and solid-waste processing industries. It consists of a perforated cylindrical drum, the firewood enters the drum through the hopper, and after the rotation of the drum, some broken wood chips will be discharged through the screen holes of the drum, and clean firewood will be discharged through the end of the drum. NEW "Cleaner" firewood tumbler cleaning system. Optional combustion engine power pack also available. Powered chain drive outfeed conveyor standard. Slew angle adjustable on outfeed conveyor. Features rotating barrel with pipes evenly spaced to separate dirt, chaff, splinters and sawdust from your firewood. Separate speed controls for barrel and conveyor.

Application:

This mobile firewood trommel screen is equipped with a feeding conveyor, and the tail conveyor is optional. The impurities in firewood can be screened out to get clean firewood. Equipped with high-quality Kohler gasoline engine, it can achieve an ultra fast production capacity of 60 cubic meters per hour!

The mobile firewood trommel screen is equipped with a deceleration system, which can keep the drum rotating at a constant speed. The motor drives the reducer and then drives the drum to rotate. The bottom of the drum is equipped with four idler rollers as support. The screen mesh is made of high-quality angle iron, which is solid and durable. We can provide customized service. We can customize different models according to different materials and capacity. The hopper
volume is 1.8 cubic meters, and the screen area is 8.5 square meters.

Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design

Features:

Simple structure, large workload, durable, low production cost, convenient maintenance and many other advantages, processed sand, stone and other mixing materials automatic separation, is an ideal material for building, highway, cement building preform and other manufacturers.


1. High efficiency, heavy work.
2. Equipped with traction, it can be towed by a trailer, so it is easy to move.
3. Equipped with feeding conveyor for convenient feeding.
4. Made of high-quality materials, with a 1-year warranty.
5. Can be customized according to customer needs.
6. Factory supply, best price.

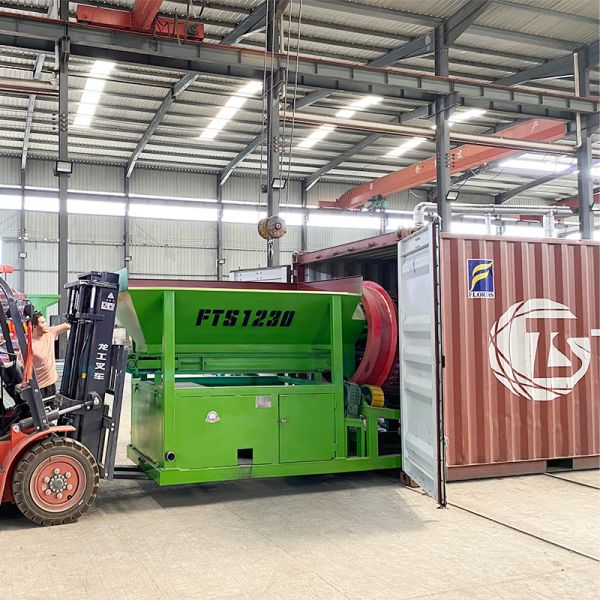

Delivery:
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Mobile Firewood Cleaner Trommel Screen Machine Discharge Size as Request Mobile Design
Technical Prameter
Model
Capacity
(t/h)
Power
(kw)
Diameter
(mm)
Length
(mm)
Discharge
(mm)
Input
(mm)
Dimension
(mm)
FTS1230
60
3.0
1200
3000
0-100
≤300
5613*1940*2390
