Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
Specifications
Type :
Briquette Machines
Applicable Industries :
Energy & Mining
Weight (KG) :
850
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Production Capacity :
1-2t/h coal briquette pressing machine
Motor Type :
AC Motor
Place of Origin :
Henan, China
Brand Name :
Sinolion
Dimension(L*W*H) :
2.26*1.53*1.76m
Warranty :
1 year
Product name :
Widely used refractory dust ball press coal dust ball press machine
Briquette shape :
saw dust briquette making machine
Roller diameter :
290mm
Roller material :
65Mn
Applicable Material :
Coal, charcoal, carbon black, coke, iron, Fluorite powder etc
Material size :
Less than 5mm
Material moisture :
Less than 18%
Spare parts :
Supply whole life of coal briquetting machine
Service life :
Supply whole life
Factory visit :
Any time
Price :
$18,000.00/sets >=1 sets
MOQ :
1 unit
Description

hot selling :

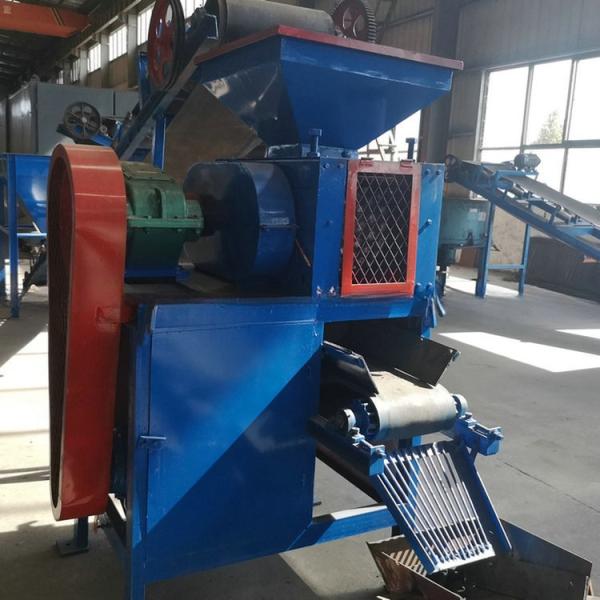

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Product Description

1. The general introduction of the briquette machine price
Our briquette machine are rollers pressing type. This type of briquette presses can apply higher pressures and thus produce higher density briquettes . These briquettes can be designed of oval shape, egg shape, pillow shape, square shape etc. This machine is widely used in coal industry and metallurgy industry.

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

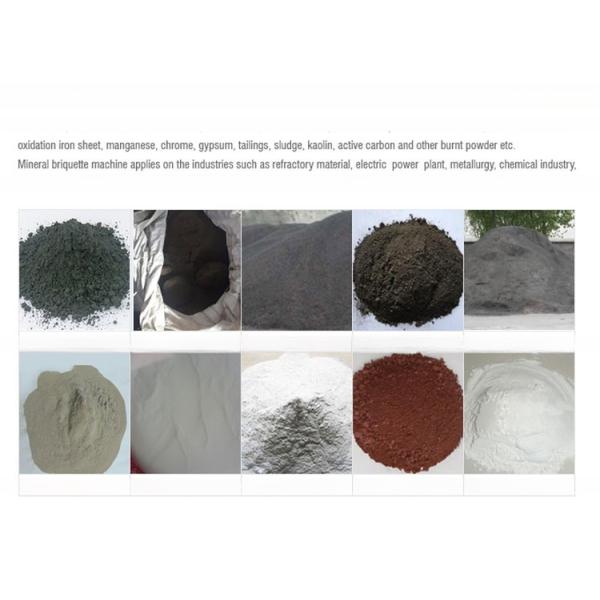

2. The raw material of the briquette machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

3. The working principles of the briquette machine
 This series of Briquette Ball Press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

4. The specifications of the briquette machine

Model Reducer Roller size Power (Kw) Yield (t/h) Roller Material Pressure type
XM290 ZQ350 Φ290 5.5 0.9-1.0 65Mn

Constant pressure

Hydraulic pressure
XM360 ZQ350 Φ360 7.5 1.5-2.0 65Mn/9Cr2Mo
XM400 ZQ400 Φ400 7.5 2.5-3.5 65Mn/9Cr2Mo
XM430 ZQ400 Φ430 11 3.5-4.5 65Mn/9Cr2Mo
XM500 ZQ650 Φ500 37 7.5-8.5 65Mn/9Cr2Mo
XM650 ZQ850 Φ650 45 9-10 65Mn/9Cr2Mo
XM750 ZQ1000 Φ750 90 13-14 65Mn/9Cr2Mo
XM850 ZQ1250 Φ850 110 15-17 65Mn/9Cr2Mo

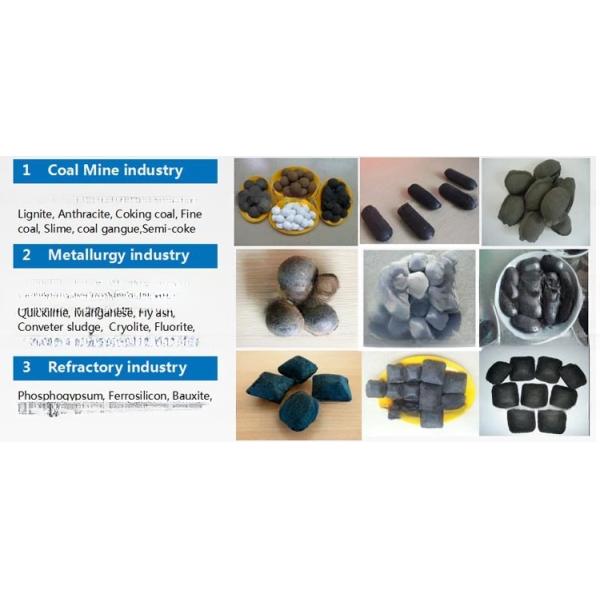

5. The shape of the final briquettes:round ball shape ,oval shape ,pillow shape ,egg shape ,oblateness ,square shape etc.

Note: the briquettes shape and size are defined by users

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

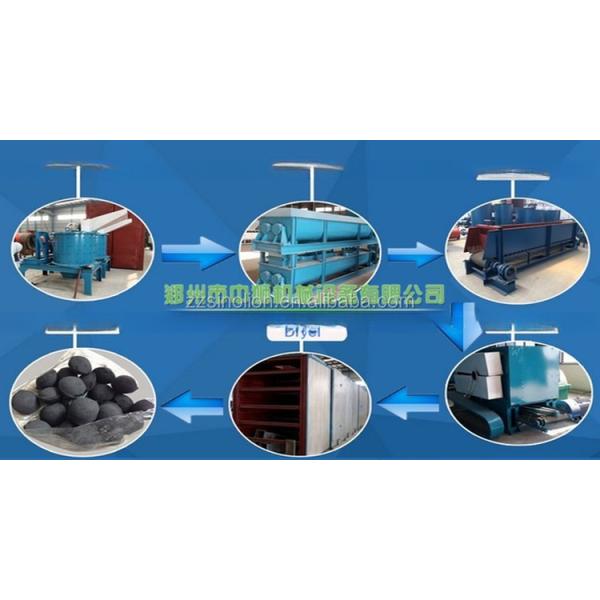

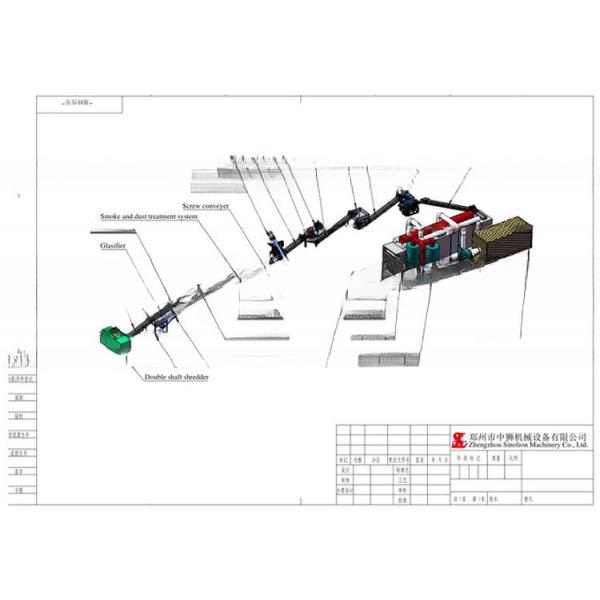

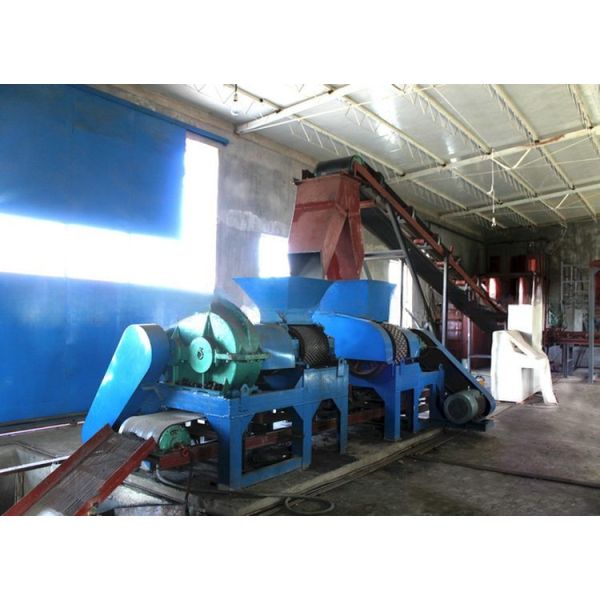

6. The production line of the briquette machine
Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Packaging & Shipping

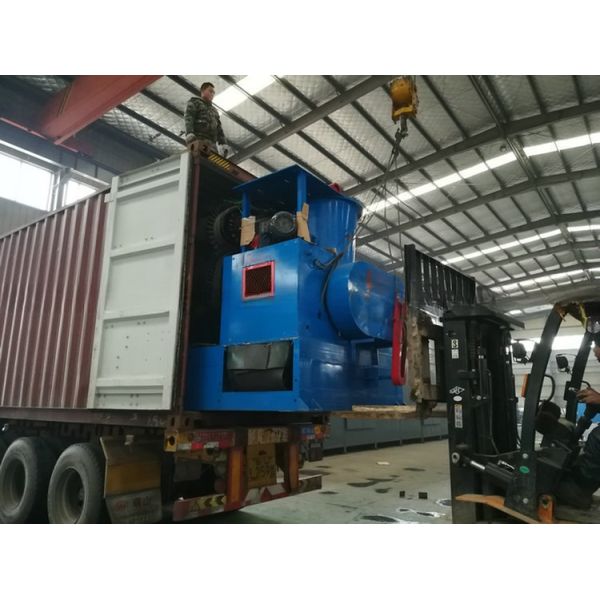

The transportations of the briquette machine

single machine use wooden case and for the whole production line in container

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

we have different types of the charcoal briquettes machines, if you need other final charcoal briquettes

if you need more photos and video , please click here to contact me :

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

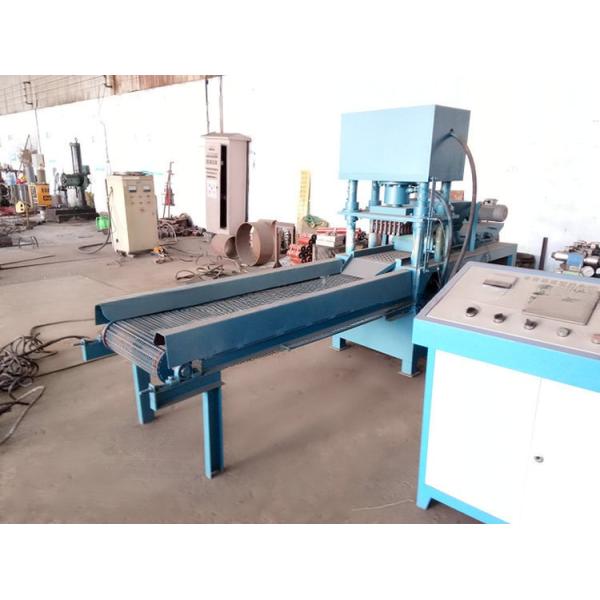

if you want to get the shisha briquettes , you need use our shisha charcoal briquettes machine below :

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

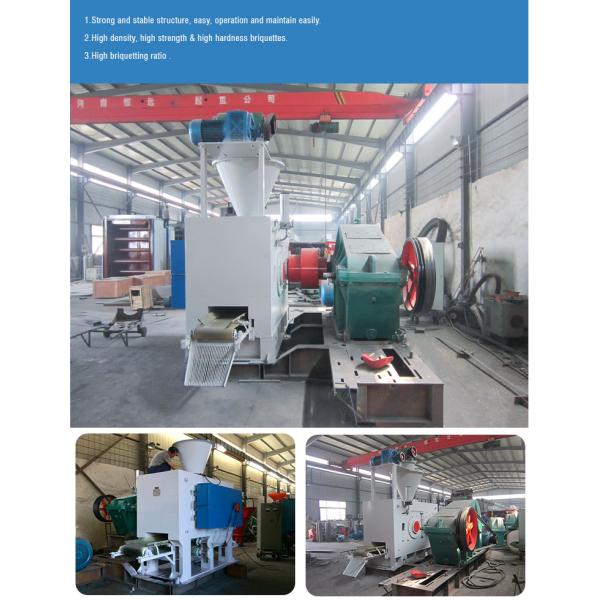

machines in our warehouse ready for the delivery :

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Company Information

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Certifications for the machines :

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine

Contact Us

If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.

Supply Whole Life Service Ferrous Metal Ore Powder Ball Press Roller Briquette Machine
