Specifications
Type :
Briquette Machines
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Weight (KG) :
850
Showroom Location :
Canada, United States, India, Russia, Sri Lanka, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear
Condition :
New
Production Capacity :
1-30t/h briquette press machine line
Motor Type :
AC Motor
Place of Origin :
Henan, China
Brand Name :
Sinolion Briquette press machine
Dimension(L*W*H) :
Based on different model briquette press machine
Warranty :
1 Year
Product name :
Hot sell double roller iron ore pellet machine factory
Briquette shape :
Oval, pillow and oblate ground square ball briquettes pellets egg
Roller diameter :
290-1000mm
Roller material :
65Mn/9Cr2Mo
Applicable Material 1 :
Iron, Silicon, Manganese, Gypsum, fluorite, clay
Applicable Material 2 :
coal charcoal carbon black coking coal dust
Material size :
Less then 5mm
Material moisture :
Less then 18%
Service life :
Supply whole life
Factory visit :
Any time
Price :
$120,000.00/sets >=1 sets
MOQ :
1 unit
Description

Factory hot sell double roller ore pellet machine iron dust press briquette machine

Product Description

Small and convenient coal briquette machine processing custom coal-saving equipment briquette machine line for sale.

The coal briquette machine specialize in pressing various powder material like coal, coke and semi-coke, charcoal and other powder material to briquettes. Due to souble rollers forced squeezing, the discharged briquettes have features of high density,high strength and high hardness. Roller material adopts 65Mn and wear-resistant alloy material (patent technology). This alloy roller is processed through special hard-[acked casting technique, exclusively. Only by this material can solve the key problem of roller not wearable all the time and make it's lifetime extend 3-4 times. Our technical workers have mastered lots of practical experience research, study and numberous testing. they are very happy to instruct you right models to meet production line according to different materials.

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Coal briquette machine working principle

By belts,to gear reducer,gear reducer through coupling,to drive shaft by a pair of open gear again,ensure that two roller synchronous(constant speed reverse)material storage bin by quatitative machine into the hopper evenly,units of the molding pressure maximum,material after the line,the molding pressure decrease quickly to take off the material into the ball state,to take off the ball.

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust PressLess Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Coal briquette machine whole plant

briquette machine briquettes making process can be devided into the following steps: Feeding-- crushing---- mixing------ ball pressing------ drying------final product.

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press
Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press
Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

technical parameters

Model
Reducer
Ratio
Roller Size
Main Shaft Speed
Matched Power
Capacity
Pressure type
XM290
ZQ350
1:31.5
290*200
12-14
5.5
0.9-1.0
Constant Pressure
XM360
ZQ350
1:31.5
360*250
12-14
7.5
1.5-2.0
Constant Pressure
Hydraulic Pressure
XM400
ZQ400
1:31.5
400*250
12-14
7.5
2.5-3.5
XM430
ZQ400
1:31.5
430*250
12-14
11
3.5-4.5
XM500
ZQ650
40.17
500*470
10-12
37
7.5-8.5
XM650
ZQ850
40.17
650*470
9-11
45
9-10
XM750
ZQ1000
48.57
750*570
9-11
90
13-14
XM850
ZQ1250
50
850*570
8-10
110
15-17

According to different material adjust briquette machine parameter to meet customer production.

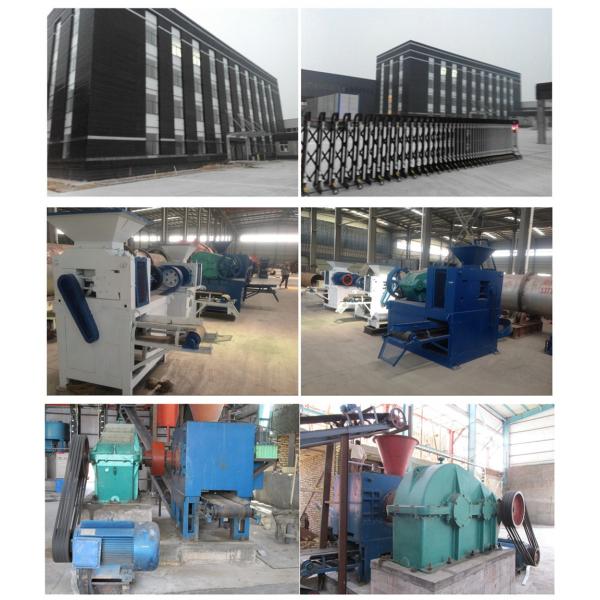

Company Information

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust PressLess Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust PressLess Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust PressLess Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Packaging & Shipping

Packing Details : All products will be processed to be rustproof and moisture proof before delivery.

20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.

Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to

production season and order quantity.

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press

Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press Less Than 18% Material Moisture Double Roller Ore Pellet Machine for Iron Dust Press
FAQ

Q:How do I choose a suitable briquette machine for my project?

A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required

Q: What is the binder in process?

A: It is depend on the properties of your raw materials and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.

Q: How long of your machine quality guarantee terms ?

A: Quality guarantee time is one year(wearing parts excluded).

Q: After ordered a briquette machine, how do we slove the equipment installing?

A: For a small single machine, we offer you user manual, the user will install and commissioning following operating introduction. A complete production line, we will send our engineer to workplace to help with install and commissioning untill machines work normally.
