Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Specifications
Applicable Industries :
Machinery Repair Shops
Showroom Location :
Mexico, Japan, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Type :
Ball Mill
Motor Type :
AC Motor
Capacity(t/h) :
0.65-35
Place of Origin :
Henan, China
Brand Name :
Sinolion
Dimension(L*W*H) :
depend on models
Weight :
KG
Warranty :
1 Year
Application :
gold ore iron copper, quartz limestone,clinker,cement,chromite,A
Grinding way :
wet type or dry type or batch type
Operation :
automatic or manual
Grinding material :
calcium carbonate, calcite, dolomite,bauxite,aragonite
Including :
gearbox, gear, pinion, liner, manual, bearing, specifications
Spare parts :
liner, grinding balls, grinding media
After-sales Service Provided :
Video technical support
Certification :
ISO 9001: 2008
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container or LCL.
Equipment is packed with plastic wrap or steel box, seaworthy fumigation-free wooden case or plywood box , depends on mach
Port :
Qingdao, Tianjin, Dalian, Lianyungang, Shanghai, Guangzhou( as client request)
Supply Ability :
51 Set/Sets per Month
Price :
$3,000.00/sets 1-1 sets
MOQ :
1 unit
Description
Products Description

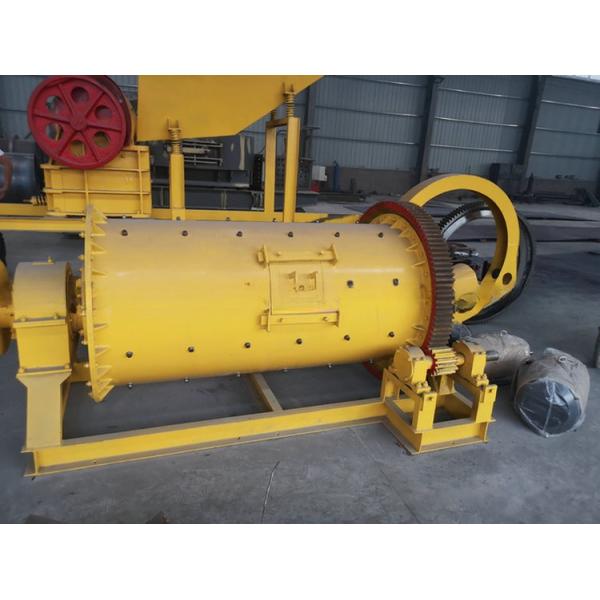

Energy saving small ball mill

Energy saving small ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. such as cement, fire-proof materials, aluminum soil, the emery, glass raw materials, building sand, stone materials, metallurgical slag.
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG

Working principle of energy saving small ball mill

Horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Main technical parameter
Model
Cylinder rotating(r/min)
Grinding media loading(t)
Feed Size(mm)
Discharge Size(mm)
Capacity
(t/h)
Power(kw)
Weight(t)
Φ900*1800
38
1.5
≤20
0.075-0.89
0.65-2
18.5
3.6
Φ900*3000
38
2.51
≤20
0.075-0.89
1.1-3.5
22
4.6
Φ1200*2400
32
3.8
≤25
0.075-0.6
1.5-4.8
30-45
12.5
Φ1200*3000
32
5
≤25
0.074-0.4
1.6-5
30-45
12.8
Φ1200*4500
32
7
≤25
0.074-0.4
1.6-5.5
55
13.8
Φ1500*3000
27
8
≤25
0.074-0.4
2-5.8
75-90
17
Φ1500*4500
27
14
≤25
0.074-0.4
3-6.5
90-110
21
Φ1500*5700
27
15
≤25
0.074-0.4
3.5-8
110-132
24.7
Φ1830*3000
24
11
≤25
0.074-0.4
4-10
132-180
28
Φ1830*6400
24
23
≤25
0.074-0.4
6.5-15
210
34
Φ1830*7000
24
25
≤25
0.074-0.4
7.5-17
210-245
36
Φ2200*5500
21
30
≤25
0.074-0.4
10-22
370
48
Φ2200*6500
21
31
≤25
0.074-0.4
14-26
380
50
Φ2200*7500
21
33
≤25
0.074-0.4
15-29
475
56
Φ2400*7000
21
39
≤25
0.074-0.4
16-33
475
69
Φ2400*11000
21
51.5
≤25
0.04-0.08
16-35
630
99
Φ2700*3600
21
39
≤25
0.074-0.4
16-29
475
74
Φ2700*4500
21
43.5
≤25
0.074-0.4
20-35
500
80
Certifications
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Detail information
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Product packaging
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
Company Profile
Small Ball Mill for Energy Saving Grinding Wet/Dry/Batch Type 1KG
FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
