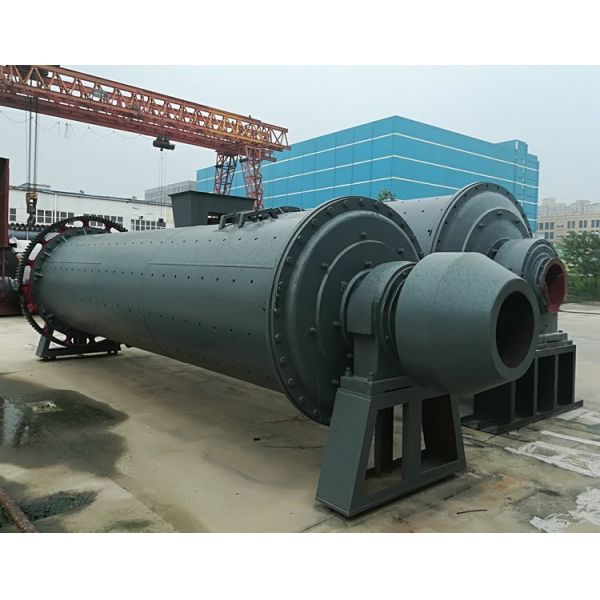

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment
Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, Brazil, Mexico, Russia, Kenya, Nigeria, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Type :
Ball Mill
Motor Type :
AC Motor
Capacity(t/h) :
0.5-83t/h
Place of Origin :
Henan, China
Brand Name :
Sinolion
Dimension(L*W*H) :
Based on different model
Weight :
3600 KG
Warranty :
2 years for the quality of equipment
Application :
gold ore iron copper, quartz limestone,clinker,cement,chromite,Al2o3
Liner :
high manganese, rubber, ceramic(as client request)
Spare parts :
liner, grinding balls, grinding media
Grinding material :
calcium carbonate, calcite, dolomite,bauxite,aragonite
Operation :
automatic or manual
After sale service :
the whole using life
Grinding way :
wet type or dry type or batch type
Bussiness type :
bearing ball mill manufacturer
Including :
gearbox, gear, pinion, liner, manual, bearing, specifications
Color :
yellow, white, red, blue, gray( or as client request)
Price :
$2,686.00/sets >=1 sets
MOQ :
1 unit
Description

Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment For Sale

Product Description

The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics

Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.

Wet dry gold ball mill for sale technicial parameters:

Model

Rotation speed

(r/min)

Weight of

grinding media

(ton)

Size of feed opening

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)
Φ 900x1800 38 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 3.6
Φ 900x3000 38 2.51 ≤ 20 0.075-0.89 1.1-3.5 22 4.6
Φ 1200x2400 32 3.8 ≤ 25 0.075-0.6 1.5-4.8 30-45 12.5
Φ 1200x3000 32 5 ≤ 25 0.074-0.4 1.6-5 30-45 12.8
Φ 1200x4500 32 7 ≤ 25 0.074-0.4 1.6-5.5 55 13.8
Φ 1500x3000 27 8 ≤ 25 0.074-0.4 2-5.8 75-90 17
Φ 1500x4500 27 14 ≤ 25 0.074-0.4 3-6.5 110 21
Φ 1500x5700 27 15 ≤ 25 0.074-0.4 3.5-8 132 24.7
Φ 1830x3000 24 11 ≤ 25 0.074-0.4 4-10 180 28
Φ 1830x6400 24 23 ≤ 25 0.074-0.4 6.5-15 210 34
Φ 1830x7000 24 25 ≤ 25 0.074-0.4 7.5-17 245 36
Φ 2200x5500 21 30 ≤ 25 0.074-0.4 10-22 370 48.5
Φ 2200x6500 21 31 ≤ 25 0.074-0.4 14-26 280 52.8
Φ 2200x7500 21 33 ≤ 25 0.074-0.4 15-29 475 56

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

Packaging & Shipping

Packing Details : All products will be processed to be rustproof and moisture proof before delivery.

20GP container or 40GP container


Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.

Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

Case

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

Company Information

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

3600 KG Small Energy Saving Ceramic Stone Ore Powder Grinding Ball Mill Machine Equipment

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc

Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
