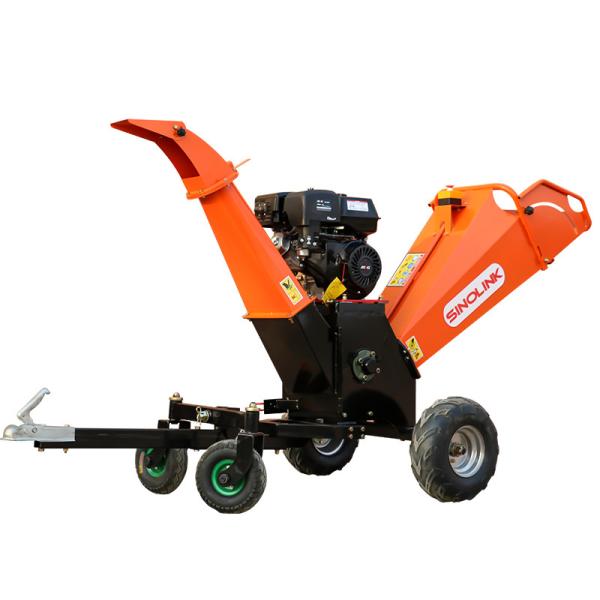

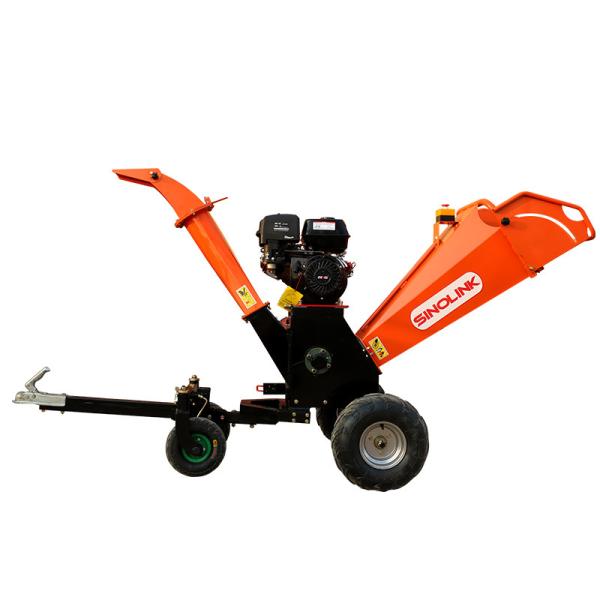

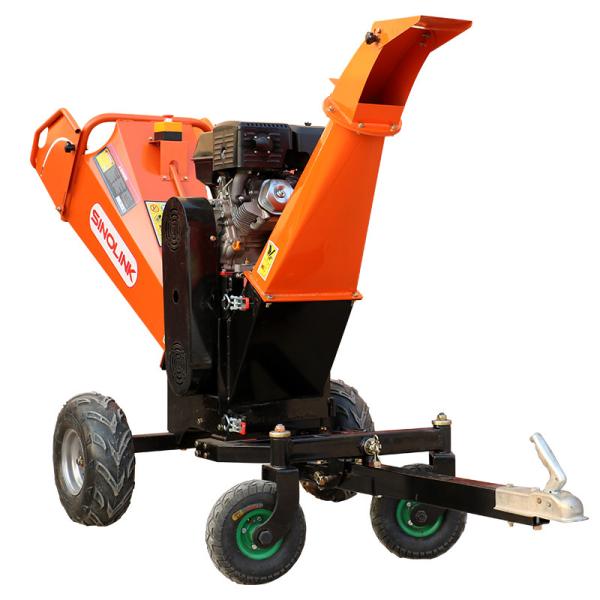

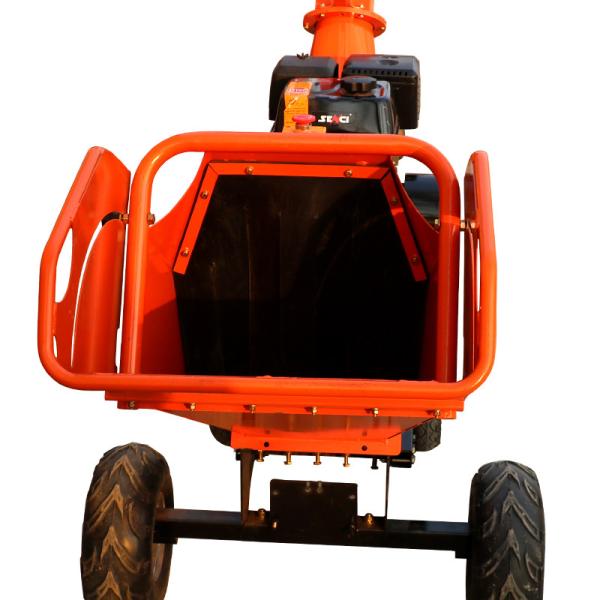

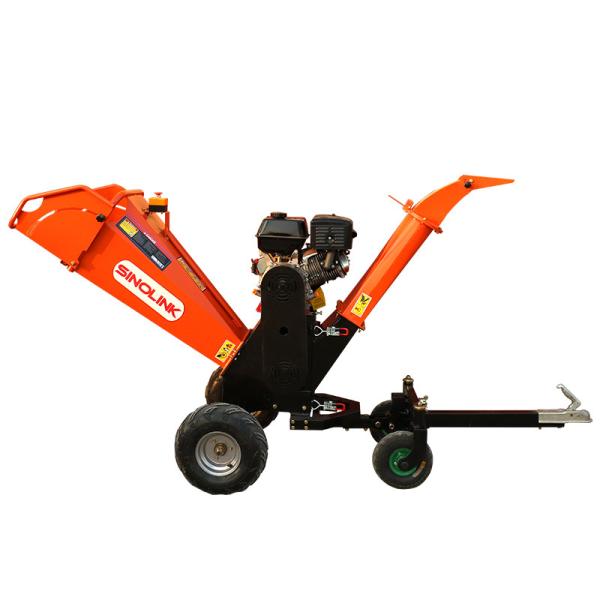

350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
Specifications
Brand Name :
SINOLINK
Model Number :
GS120Pro
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1 Unit
Price :
USD800-935/unit
Supply Ability :
1000 Units/month
Delivery Time :
30 work days
Packaging Details :
Plywood case:900*760*1150mm
Condition :
New
Type :
Wood chipper
Power Type :
Gasoline engine
Core Components :
Bearing, Engine
Engine start :
Recoil/key start
Description

15hp Petrol Wood Chipper Machine Wood Shredder With 350mm Drum Roller

Sinolink GS120Pro Chipper to break down branches and sticks up to a 120mm diameter. The Chipper is powered by a 15HP single cylinder petrol engine, featuring a 12 volt electric key starting device. The engine transmits its power to the chipper drum via a centrifugal clutch and a pair of thick rubber drive belts.

The chipper drum is mounted on 2 sealed bearings and features 2 opposing double-sided (reversible) hardened chipper blades, these blades rotate anti-clockwise toward the adjustable counter knife at between 3000 and 4000 RPM. The blade clearance between the chipper blades and chippers counter knife is optimal between 0.5 and 1mm. The chipper can process branches with a maximum diameter of 120mm. We have found that its optimal working range is around 80-100mm depending on the moisture level hardness and all manner of other factors affecting the wood you are chipping.

Model GS120Pro
Engine Model Briggs & Stratton XR2100
Cylinder volume 420 cm 3
Performance 9.9kW ≈ 13.5 Hp
Fuel Gasoline
Fuel quantity / oil quantity 6.5 liters / 1.1 liters
Starting system Electric start
Thickness of wood Max Ø150 mm
The speed of the knives 2200 rpm

350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
Technical data:

  • Loncin engine
  • Engine capacity 420 cm3
  • Power 15HP
  • Double swivel blades + counter knife
  • Drive transmission V-belt x 2 pcs
  • The maximum thickness of the branches is 15 cm
  • Net weight 275 kg

350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw350mm Roller Drum Wood Chipper Machine Design For Waste Coconut Husk Stalk Straw
