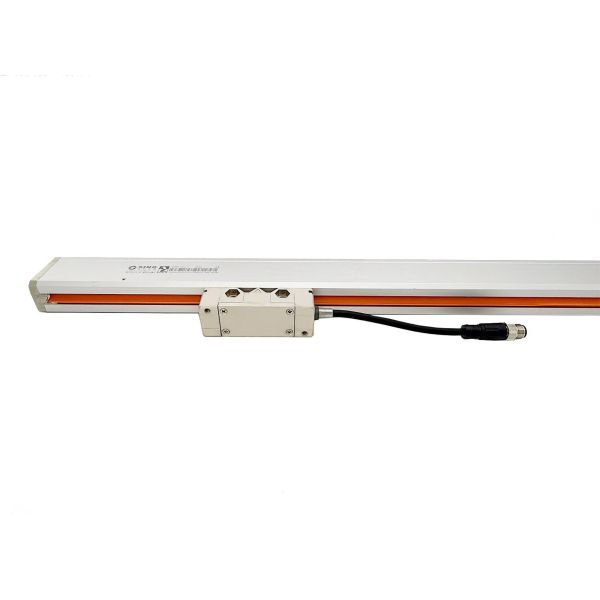

High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
Specifications
Brand Name :
SINO Absolute encoder
Model Number :
NC600
Certification :
CE,RoHS,ISO9001
Place of Origin :
Guangzhou, CHINA
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000 sets per month
Delivery Time :
30 days
Measurement reference :
High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
acuracy class (20±0.5℃) :
±3μm
Length measured (ML), mm :
140-3040mm
Safe position :
ML±4mm
Interface Protocol BI :
BISS-C、SSI、Yaskawa、Fanuc、Mitsubishi
Resolution :
0.01μm，0.05μm，0.1μm，0.5μm，1μm，2μm
Clock frequency :
<=5 MHz (<= 8μs)
Electrical Connections :
M12, D-SUB9, PCR-E20FS, DB-15, DB-25
Cable Length :
Silicone shielded cable (3 meters)
Operating Voltage :
DC 4-36V
Power Consumption (Maximum) :
1.5W
Motion Speed :
Up to 120 m/min
Vibration and Shock Resistance :
Vibration resistance up to 50 m/s²; Shock resistance up to 150 m/s²
Operating Temperature :
0-50℃
Sealing Rating :
Meets IP53 requirements if installed according to the sample installation instructions; meets IP64 requirements if connected to the sealed air of the DA400.
Description

High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System​

  1. Instant high-precision position output at power‑on, no homing needed for higher automation efficiency.
  2. Ideal for CNC machine tools, automated production lines, linear motors and high‑precision control systems.

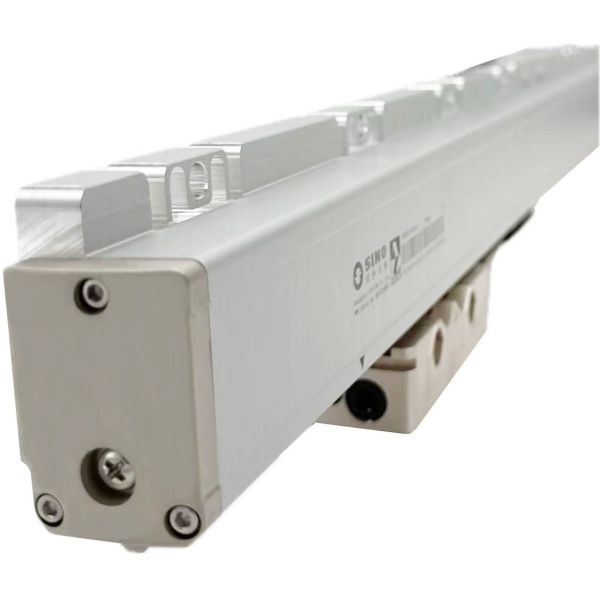

  3. Rugged sealed aluminum structure ensures stable, reliable high‑precision performance in harsh environments.

Key Features:

  • ISO quality system certified with CE and RoHS international approvals
  • Full specifications & multiple communication protocols for wide compatibility
  • Over 30 years of industry experience with stable development and continuous innovation
  • Independently developed core technologies to replace imported key components

The NC600 absolute linear encoder is suitable for:

The NC600 is ideal for automation, robotics, process control, scientific instruments, CNC machine tools, and high-precision measurement in harsh environments.

Package Includes

  • 1 pc KA600-2100mm linear glass scale
  • Resolution: 0.5/1/5 μm
  • Custom lengths (1000–3000 mm) available upon request

The encoder uses optical sensors that detect graduation patterns and convert them into electrical signals. It adopts Gray code to minimize transition errors.
Resolution is determined by the number of markings, usually expressed in bits or CPR.
The NC600 is designed for large machine tools with high rigidity. Supports can be added along its length (1000–3000 mm) for improved stability.

High Accuracy NC600 Absolute Linear Grating Encoder Suitable for Automatic Control System
