The Application Of User Friendly SDS6-2V In Milling Machine And Lathe Processing

Using the most modern 16-bit microcontroller technology, the SDS6-2V digital reader is a flexible DRO that may replace any kind of fundamental or complex function needed by the SDS2 series. Users have the ability to do industrial duties more efficiently thanks to its enhanced performance.

Basic functions of SDS6-2V

200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option

Commonly used industrial sites for digital readout system SDS6-2V DRO:

Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)

Introduction to SDS6-2V content:

DRO SDS6-2V is a multifunctional dual axis digital reading display. Users can adjust system configurations to meet their specific needs and adapt to various working environments, achieving optimal machine performance. SDS6-2V can perform a wide range of visual tasks, such as measuring taper, calculating angles, processing surfaces with angles, drilling holes with equal spacing around circles, calculating arcs, and applying digital filters. These features contribute to the use of visual functions and enhance users' understanding of machine motion trajectories. This is the first factory in China to use 16 bit and 32-bit calculators in the DRO system. The input frequency of the DRO system can reach 5MHz, with a maximum a/B. This method helps to improve the efficiency of metal processing.

Model No:.

SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function

Characteristic​:

Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)

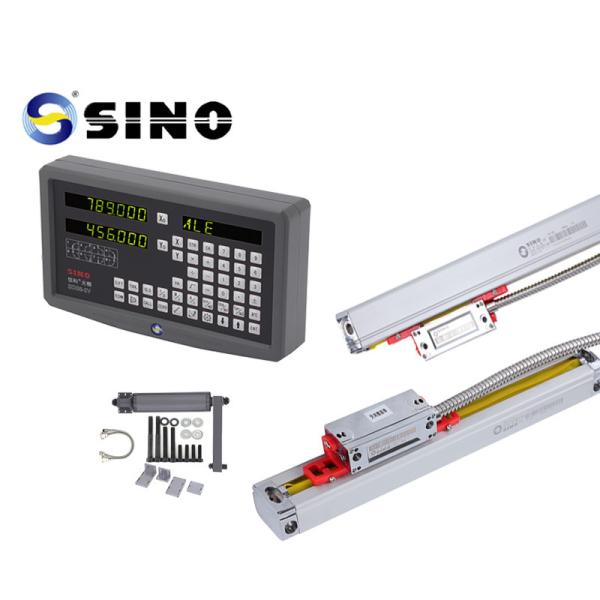

Product image /photos:

The rack in the picture is optioned, not standard product.
