117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
Specifications
Brand Name :
SINOCOREDRILL
Model Number :
HWT HW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
N/M
Price :
AS PER DETAILED QUANTITY
Payment Terms :
L/C, T/T
Supply Ability :
20PCS PER 2 DAY
Delivery Time :
3 DAYS
Packaging Details :
EXPORT STANDARD PACKAGE
Model :
HWT HW casing shoe
Type :
Casing shoe
Waterway :
Flat-Face or regular
Application :
advancing casing through overburden layers.
HS code :
820719
Description

Regular ( Style W’) Waterway 117.65mm HWT HW Diamond Impregnated Casing Shoe

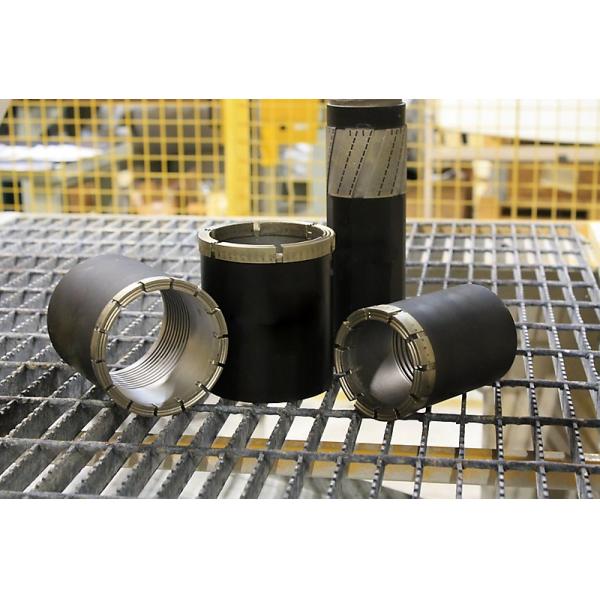

Casing Shoes

This group of products is used on the leading edge of a casing tube string to advance it through the overburden layer and into the bedrock by means of rotational drilling. Depending on the range of application, the cutting media on the core bit may take the form of synthetic diamond, tungsten-carbide particles or tungsten-carbide elements

The diamond impregnated casing shoe is the most commonly used as it has the widest range of application and is generally the most efficient tool for advancing casing through overburden layers.

In addition to casing shoes, Sinocoredrill also manufactures diamond impregnated rod shoes. In terms of design, rod shoes are very similar to casing shoes and differ only in their thread connections. Rod shoes are used where wireline drill rods are used as casing tubes.

The basic construction of these casing shoes and rod shoes features a sintered powdered metal crown that is fused to a steel tool body or shank. The powdered metal crown is composed of two layers: the “matrix” layer which cuts the overburden and the “backing” layer which connects the matrix layer to the steel tool body and serves to support the gauge diameter protection hard materials.

  • Flat-Face (Style ‘F’) crown profile.
  • Regular (Style ‘W’) waterway configuration.

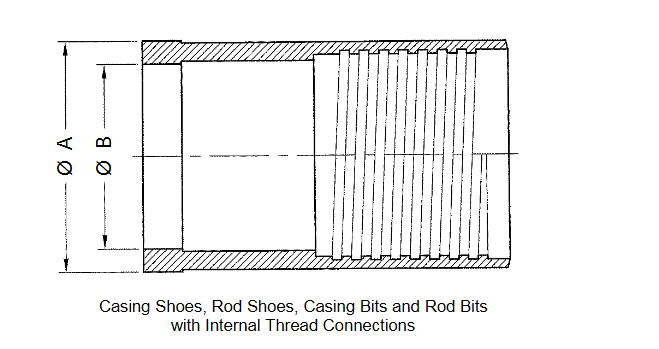

117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use

Size Outer Diameter Inner Diameter Unit Weight
mm in mm in Kg
BW 75.82 2.985 60.20 2.370 0.91
NW 91.95 3.620 76.00 2.992 1.59
HW 117.65 4.632 101.09 3.980 2.27
HWT 117.65 4.632 100.84 3.970 2.27
PW 143.51 5.650 123.24 4.852 3.22

117.65mm HWT HW Diamond Impregnated Casing Shoe Regular Style W Waterway Use
