Specifications
Brand Name :
Sino Cable Gland Factory or OEM
Model Number :
SNCG-P11S-10
Certification :
CE, ROHS, REACH, HF, IP68
Place of Origin :
Zhejiang, China
MOQ :
1000 units
Price :
at very competitive prices from direct factory
Payment Terms :
T/T, L/C, Western union
Supply Ability :
2000000 units / month
Delivery Time :
normally 5-8 days
Packaging Details :
standard export packing (special packing also available on request)
Delivery Terms :
EXW, FCA, FOB, CIF, C&F
Plastic parts :
UL-approved Polyamide 6, 94V-2 (V-0 is optional)
Sealing parts :
NBR, EPDM, Viton, Silicone
Color :
Gray or black
Size :
PG11 (5-10mm)
Protection Level :
IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Function :
Protect cables against sharp bending or breakage
Description
Description & Application:

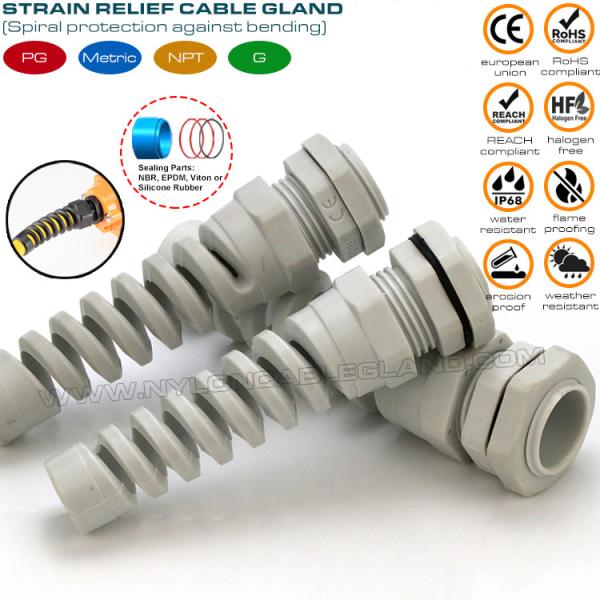

Spiral cable gland (spiral strain relief cable gland or flexible strain relief connector) is designed with an additional spiral flexible protector, and offers a maximum cable protection against excessive bending at the bending point to reduce the risk of break to avoid electric leakage. It is made from UL-certified nylon 6 (polyamide 6) material and is available in color grey or black & sizes from PG7~PG21.
With the features of strong tensile strength, good security and stability, high sealing & anti-bending performance, such spiral strain relief cable glands are ideal for dynamic applications and are widely applied for connecting and fastening cables or wires to provide effective protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, moving machines, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
Information:
Brand name: Factory or OEM
Place of origin: Zhejiang, China
Product name: Spiral Cable Gland / Spiral Flexible Strain Relief Connector Nylon (Polyamide) 6 PG11 IP68 for 5-10mm Cable
Size:

PG11 (5-10mm)
Materials: UL-certified polyamide 6, flammability V-2 for plastic parts
EPDM rubber for seal rings
Colors: Grey RAL7035 or black RAL9005
Advantages: Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong bend relief protection
Certifications: CE, ROHS, REACH, HF, IP68
Protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread length: Short thread or long thread
Thread standard:

According to Germany standard DIN 40430
Operation temp.:

Static:-40℃ to100℃, short-term:120℃.

Dynamic:-20℃ to 80℃, short-term:100 ℃
Quality grade:

8-12 years of service life for indoor applications

at least 5 years of service life for outdoor applications
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 1000 pieces
Samples available: Free samples are available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing:

100 pieces per bag, 100 pieces per box,

special packing can be customized as requested
