Specifications
Brand Name :
Factory or OEM / ODM
Model Number :
TSCG series
Certification :
CE, ROHS, REACH, IP68
Place of Origin :
Zhejiang, China
MOQ :
500 pieces
Price :
factory direct sale
Payment Terms :
T/T, L/C, Western union
Supply Ability :
50,000 pieces / month
Delivery Time :
normally 10-14 days
Packaging Details :
100 pieces per bag (special packings are also available on request)
Material :
Stainless steel Inox 304/316/316L
Surface :
Polishing treatment
Color :
Silver gray
Plastic insert :
UL-Polyamide (Nylon) 6
Flammability :
V-2 rating as per UL94
Seal :
FKM / FPM (FFKM / FFPM) rubber
O-Ring :
FKM / FPM (FFKM / FFPM) rubber
Protection :
IP68 rated
Specs :
M16x1.5 (5-10mm)
Features: :
Waterproof, acid & oil resistant, pullout resistance, UV resistant, anti-aging, durable, good performance, long-life.
Function :
Provide an extra resistance to pull-out and stron strain relief
Description
Product description:

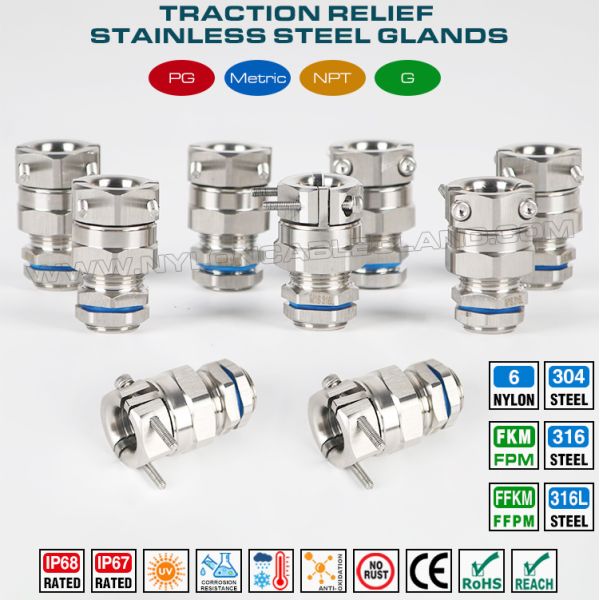

The stainless steel traction relief cable glands with two metal saddle clamps and two metal screws, also known as pull-resistant metal cable glands, are robust waterproof connectors. Usually made in 304, 316, or 316L stainless steel material, they can secure electrical cables into enclosures (like control boxes) while preventing damage from pulling, bending, or vibration by absorbing mechanical stress, all while sealing the entry point against dust, water, and oil. They provide essential functions like earthing, insulation, and environmental sealing (IP/NEMA ratings) in harsh industrial settings, ensuring safety and maintaining equipment integrity.

Main features:

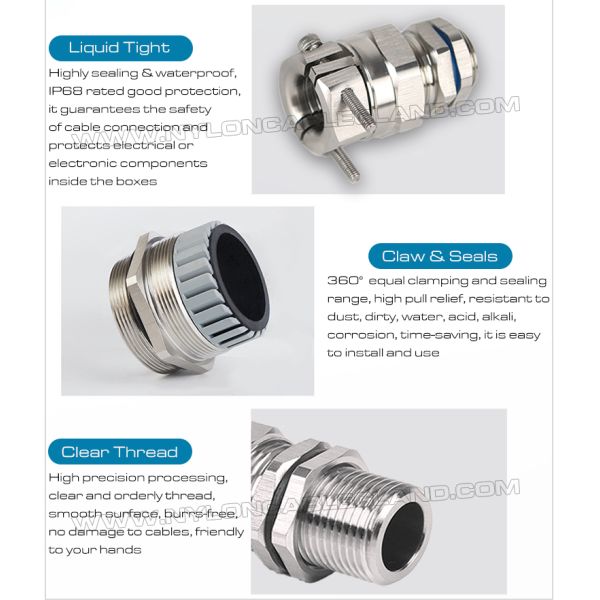

♦ Saddle clamp: a distinct U-shaped or two-part clamp that fastens around the cable, providing extra mechanical grip and strain relief, essentially "saddling" the cable for maximum security.

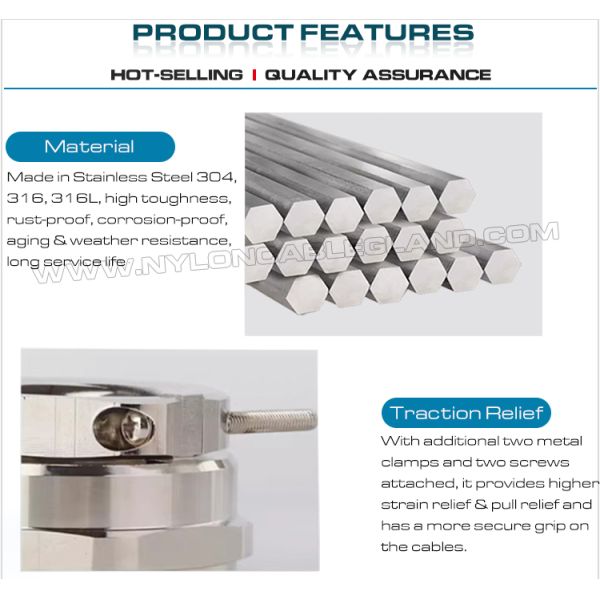

♦ Traction relief (strain relief, pull relief): the main purpose is to grip the cable firmly, preventing tension or pulling from damaging internal wires or disconnecting the cables.
♦ Sealing: creates a tight seal (IP68) to prevent dust, water, oil, and other contaminants from entering the enclosure.
♦ Harsh environments: ideal for building sites, portable equipment, machinery, and electrical motors where vibration, impact, or rough handling is common.
♦ Mechanical security: secures the cable to the equipment or panel, providing a robust mechanical connection.

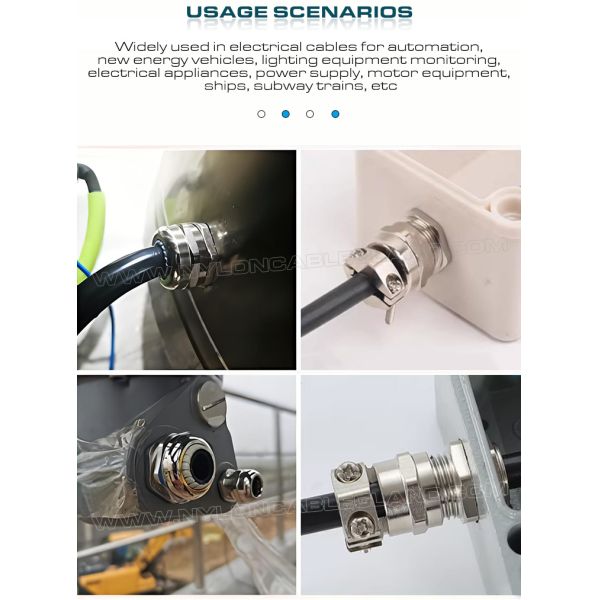

Application areas:
Used for cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending:
► Handheld device.
► Portable equipment.
► Machines and systems on building sites.
► Crane and conveying machinery.
► Moving machine parts.
► Charging infrastructure for EVs.


Information:

Brand name: Factory or OEM / ODM
Place of origin: Zhejiang, China

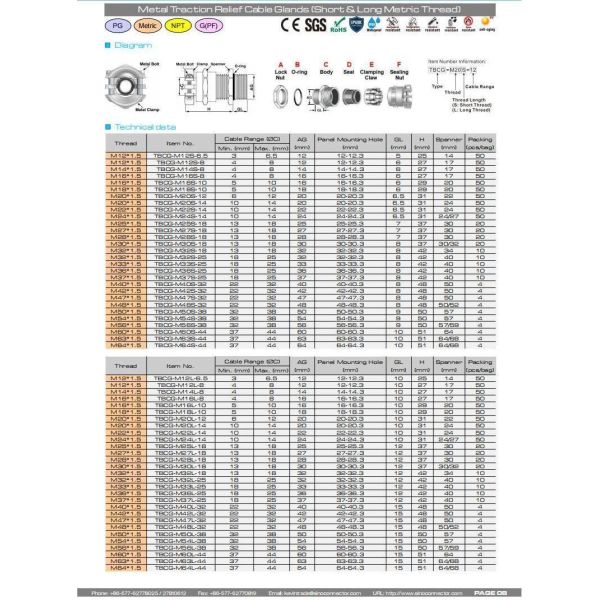

Specification: M16x1.5 (clamping range: 5-10mm)

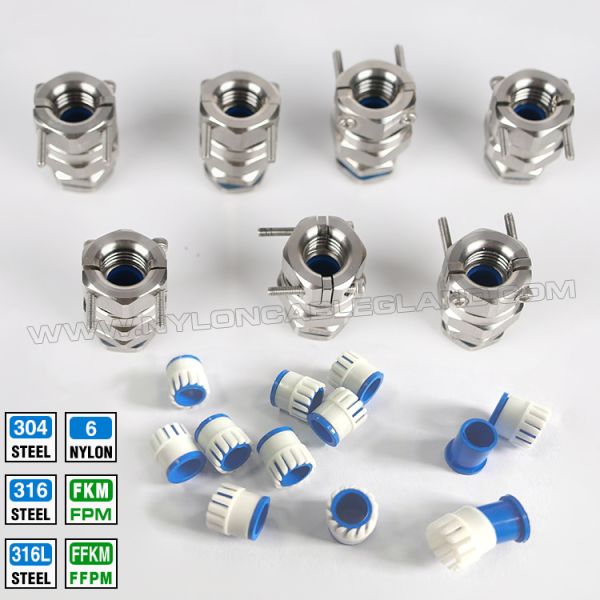

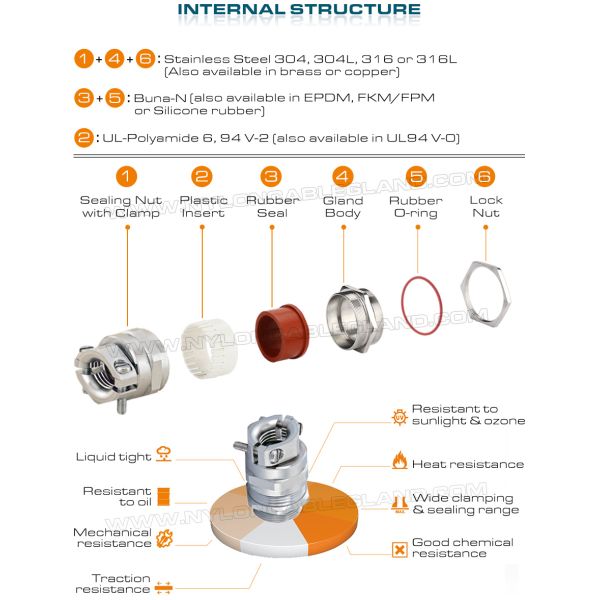

Materials: Stainless steel type 304, 316 or 316L for locknut, sealing nut and gland body
UL-polyamide 6, 94V-2 for plastic insert
FKM / FPM (FFKM / FFPM) rubber for seals & O-rings
Color: Silver gray

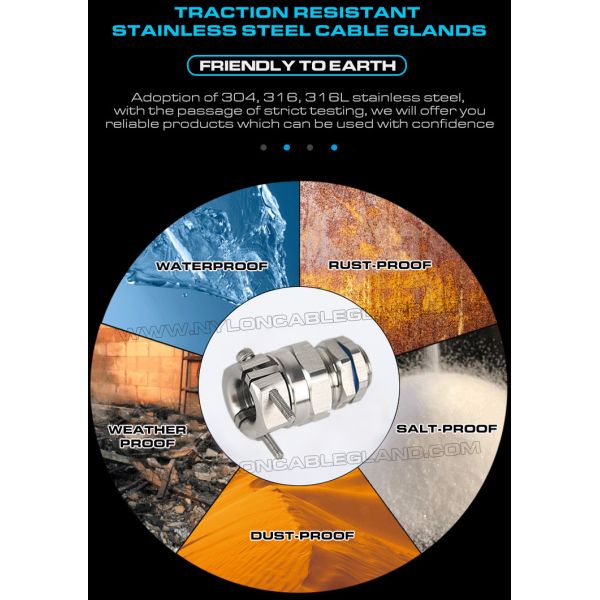

Advantages: Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, REACH, IP68
Protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread length: Short thread or long thread, both are available
Operation temp.: Static: -40℃ to 100℃, short-term:120℃. Dynamic: -20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 50,000 pieces per month
Minimum quantity: 500 pieces
Samples available: Yes, available
Delivery time: Normally 10-14 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air
Export packing: 100 pieces / bag, 50 pieces / color box, special packing can be customized as requested
