Specifications
Brand Name :
Sino Cable Gland Factory or OEM
Model Number :
Metric series
Certification :
CE, RoHS, REACH, IP68
Place of Origin :
Zhejiang, China
MOQ :
100 pieces
Price :
at competitive prices from direct factory
Payment Terms :
T/T, L/C, Western union, Cash
Supply Ability :
500,000 pieces / month
Delivery Time :
normally 8-12 days
Packaging Details :
export packing (special packing is also available on request)
Model :
M12x1.5 - M50x1.5
Material :
Stainless Steel 304, 304L, 316 or 316L
Plastic insert :
UL-certified Polyamide 6
Sealing parts :
NBR, EPDM, SILICONE or FKM rubber
Color :
Metallic silver
Protection :
IP68 + EMC
PG thread :
As per EN60423
Advantages :
Resistant to weather, corrosion, high & low temperatures, bend protection
Description

Advantages & Applications:

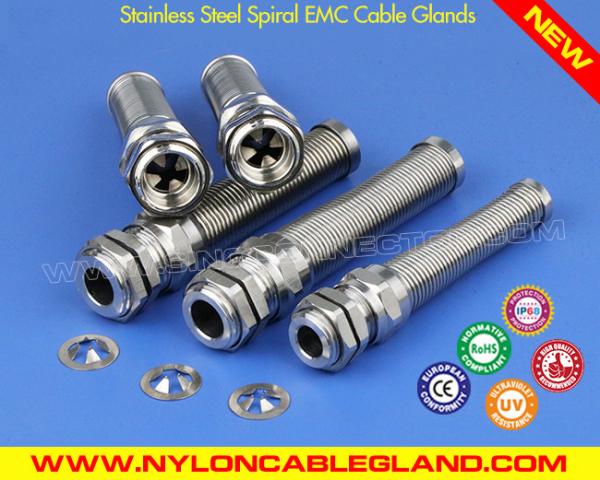

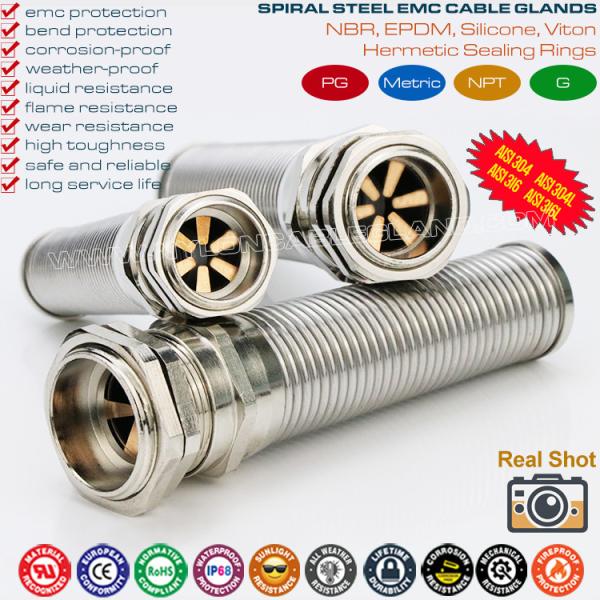

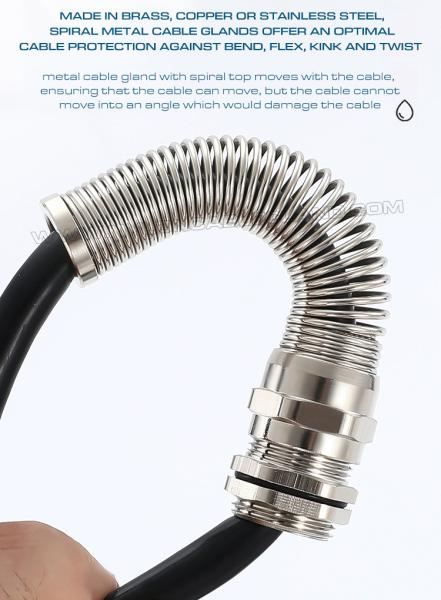

EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection come with an additional spiral pigtail which can prevent cables from excessive bending and breakage and help to extend cable life.

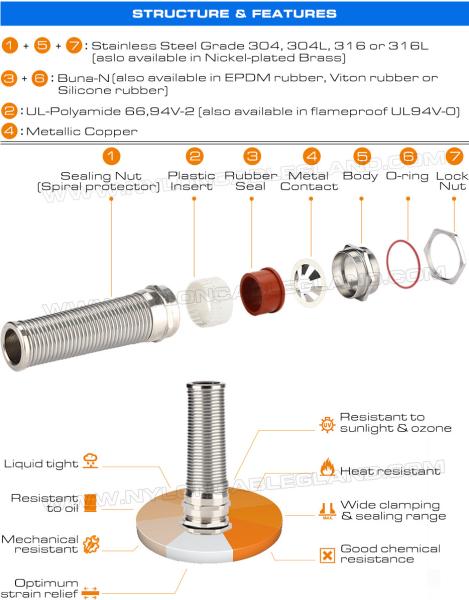

With an intermediate brass contact attached, such EMC cable glands can provide 360° electromagnetic interference. When the shielded cables pass the cable gland, the intermediate brass contact will firmly contact the shield braid in the cable to lead the interference electromagnetic wave to the ground wire, thus the electromagnetic interference can be evacuated.

The EMC cable glands have the ability of chemical resistance, corrosion resistance and heat resistance, and they also have the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent. They are popular in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.

Product details:
No. Item Description
1 Place of origin: Zhejiang, China
2 Manufacturer: Yueqing Sino Cable Gland Factory
3 Product name: EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection
4 Model: M12, M14, M16, M18, M20, M22, M24, M25, M28, M30, M32, M37, M40, M47, M50
5 Material: Stainless Steel AISI 304, AISI 304L, AISI 316 or AISI 316L
6 Seal & O-ring: NBR (also available in EPDM rubber, Silicone rubber or rubber)
7 Plastic insert: Polyamide 66 approved by UL, 94V-2 (also available in 94V-0)
8 Surface treatment: Polishing
9 Colors: Metallic silver
10 Features:

provide excellent bending protection and IP68 waterproof protection against the ingress of dirt, water and other liquids.

anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.
11 Certifications: CE, ROHS, REACH, IP68
12 Protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
13 Thread: As per EN 60423
14 Temperatures: Static:-40 ℃ to 100 ℃, short-term:120 ℃. (nylon parts & rubber parts)
Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon parts & rubber parts)
15 Quality grade: High quality
16 OEM service: Yes, available
17 Supply capacity: 500,000 pieces each month
18 Price advantage: Most competitive prices from direct factory
19 Minimum quantity: Yes, negotiable
20 Sample availability: Free samples are available on request
21 Delivery time: 7-10 days after confirmation of orders
22 Payment terms: T/T, Western Union, Cash, L/C
23 Delivery terms: EXW, FCA, FOB, CIF, CNF
24 Shipping methods: by courier (EMS, TNT, DHL, UPS or FEDEX)
by air (Shanghai or Ningbo)
by sea (Shanghai or Ningbo)
25 Export packing: 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
100 pieces per box, 50 pieces per box (white box or OEM color box)
other special packings also available on request

EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection

EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection

EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection

EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection

EMC Shielded Cable Glands Metric M12~M50 Stainless Steel Type 304, 316, 316L with Flexible Bend Protection
