Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Specifications
Brand Name :
Sino Cable Gland Factory or OEM
Model Number :
Metric series
Certification :
CE, ROHS, REACH, IP68
Place of Origin :
Zhejiang, China
MOQ :
500pcs
Price :
at very competitive prices from direct factory
Payment Terms :
T/T, L/C, Western union
Supply Ability :
5000000pcs / month
Delivery Time :
normally 5-8 days
Packaging Details :
standard export packing (special packing also available on request)
Material :
Brass or Copper
Plastic insert :
UL-certified PA6, 94V-2
Sealing parts :
NBR, EPDM, FKM, SILICONE rubber
Spiral spring :
Stainless steel 303
Surface :
Nickel plating
Size :
Full sizes
Protection Level :
IP68
Characteristics :
Protect cables from sharp bending or breakage
Description
Applications:
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector is widely applied for connecting and securing cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
Our advantages:
(1) Direct factory who sell products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Different cable glands can be customized as per customer's request.
(8) OEM services can be provided.
About us:
Founded in 2005, we are one of the most professional manufacturer of Cable Glands, Pipe Fittings, Cable Ties, Cable Accessories in China, we have had more than 18 years of rich production experience and technology in the industry of cable accessories. With strong strength, reasonable prices, complete specs and good services, our products have been exported to more than 100 countries and regions and have won good reputation among customers. Welcome customers from home and abroad to work with us!
Descriptions:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Sizes available: M12, M14, M16, M18, M20, M22, M25, M27, M28, M30
Raw material: Nickel-plated brass
NBR, EPDM, Viton or Silicone rubber for Seal & Washer
Standard colors: Metallic silver
Main advantages: Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, firmly holds and protects cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, REACH, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread and long thread are available
Thread system: According to the standard EN60423
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
Quality grade: High quality can last 8-12 years of long service life for indoor applications.
OEM service: Yes, available
Supply capability: 3,000,000 pieces per month
Minimum quantity: 500 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing: 100 or 50 pieces / bag, 100pieces /color box, special packing can be customized as requested

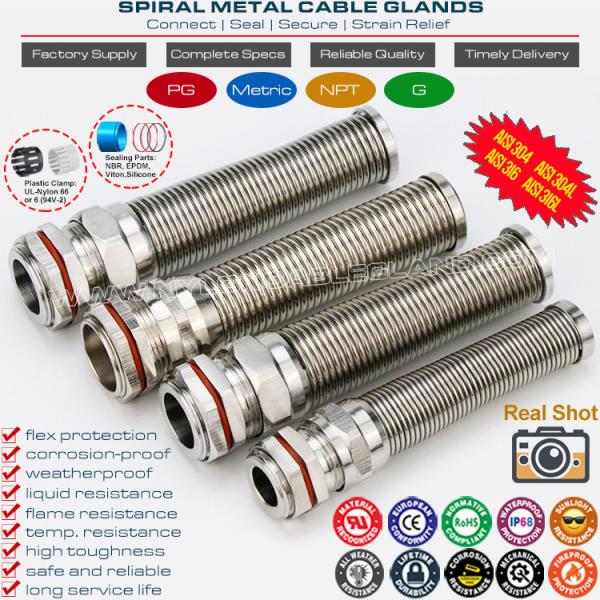

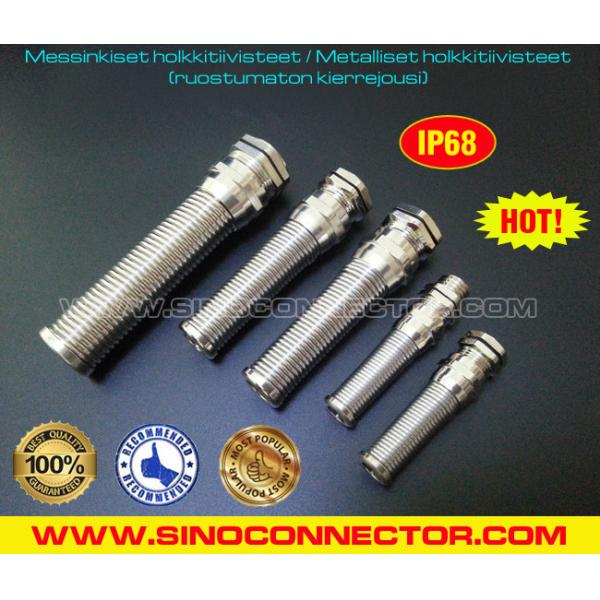

Product pictures:
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
Flexible Cable Gland Metric Nickel-Plated Brass Waterproof IP68 with Spiral Anti-Bending Protector
