Specifications
Place of Origin :
Guangdong, China, China
Brand Name :
Flyon, Flyon
Model Number :
7.5 meters / minute
MOQ :
500
Price :
CN¥294.85-315.47
Lifting Speed :
7.5 meters / minute
Material :
Mesh/Vinyl, PVC, high-strength polyester fiber or glass fiber fabric+PVC
Motor Voltage :
220 V AC
Motor Type :
Tubular motor
Motor Diameter :
3 feet
Stacking Dimension :
50 cm
Maximum Length :
20 m
Maximum Area :
125 m²
Motor Phase :
Single-phase
Operation Type :
Key switch, wireless remote
Overload Protection :
Automatic reset thermal overload
Bottom Tube :
Padded
Seam Type :
Horizontal
Color Options :
Red, blue, green, yellow, white, grey, customizable
Motor Synchronization :
Dual motors for larger curtains
Description
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed

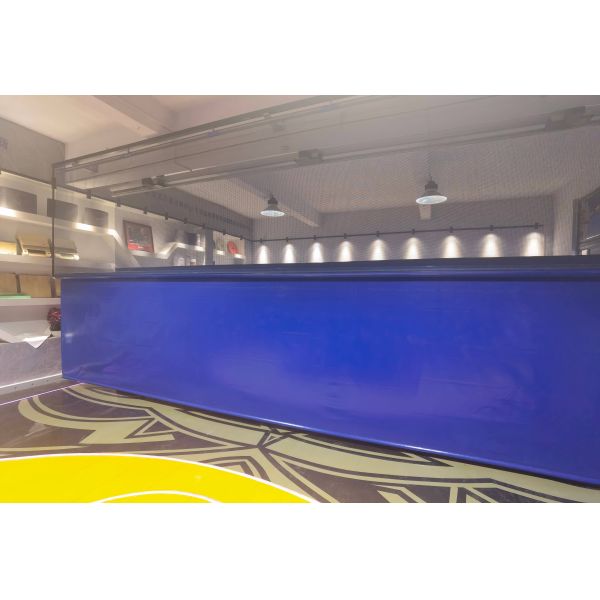

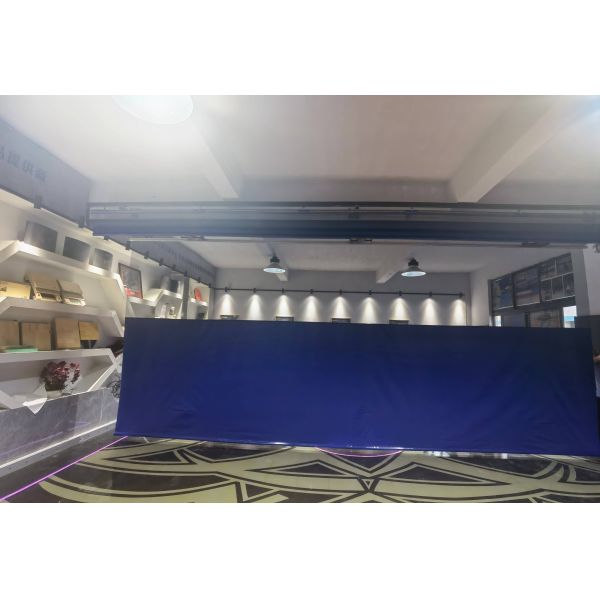

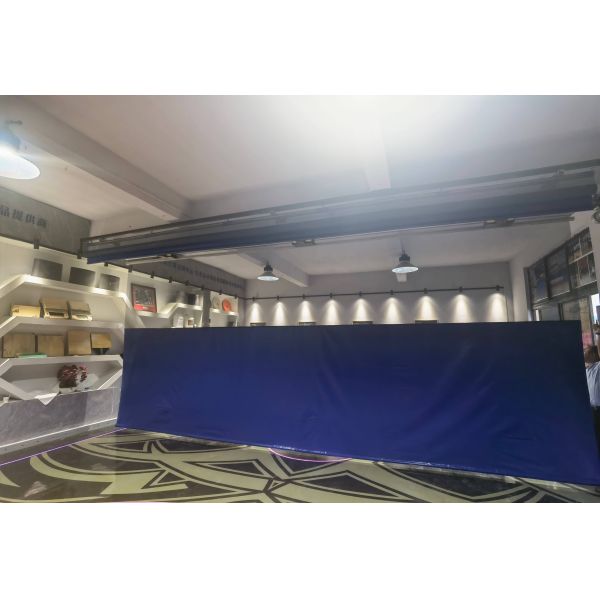

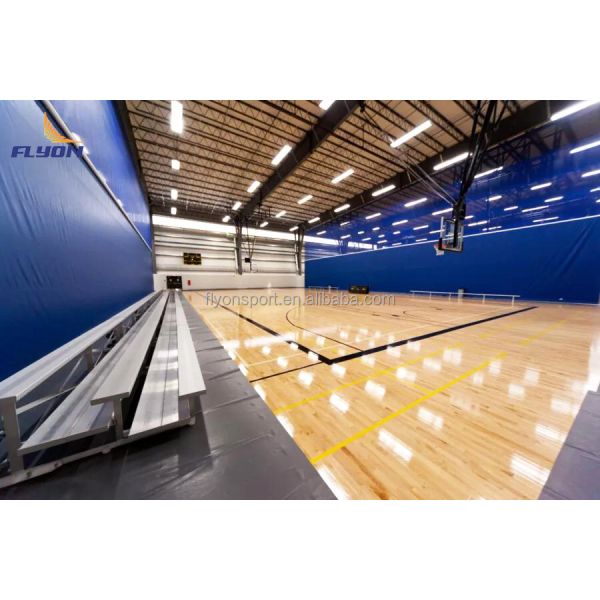

The Center Roll Divider offers a simple overhead design for gymnasiums, with no more hoist cables, straps or overhead support rollers, and the stack height is minimal.

As the aluminum drive tube rotates, it moves the curtain up, rolling up the top and bottom sections neatly and compactly to the ceiling, eliminating wear point experienced with other dividers, and this design allows the Center-Roll to roll up twice as quickly as a standard curtain.

The assembly is extremely quiet, features automatic overheating protection, and is permanently lubricated for a maintenance-free operation. When directly attached to the roof structure, this divider provides a stack dimension within 50cm of the ceiling or overhead support structure for maximum clearance.

This fast folding action is achieved at 7.5m per minute. It come available in solid and mesh, all solid, or all mesh finish.
Product Data
item
value
Place of Origin
China
Product name
Sports Hall Dividing Curtains
Color
Customizable
Brand
Flyon
Place of Origin
China
Material
high-strength polyester fiber or glass fiber fabric+PVC
Suitable places
Gymnasium, the school, and the basketball court
Product Description
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Uses 100 Nm, 220 V AC tubular motor(s), 3 feet in diameter.
tubular-type motor (220V, single-phase), gear reducer, brake mechanism concealed inside the horizontal batten tube. Motor shall be equipped with up and down, push-button type limit switches and an automatic reset, thermal overload protection.

Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed

Curtains up to 125 m² or 20 m long use single motor. Larger curtains use two synchronized motors.
Includes key switch operation standard. Also available with wireless remote
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed

Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5m / minute.
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
FEATURES:

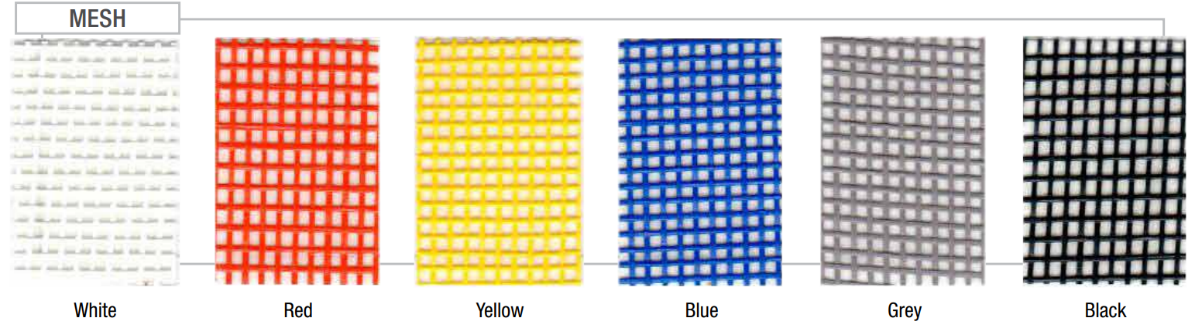

Available in a wide variety of vinyl and mesh colors.

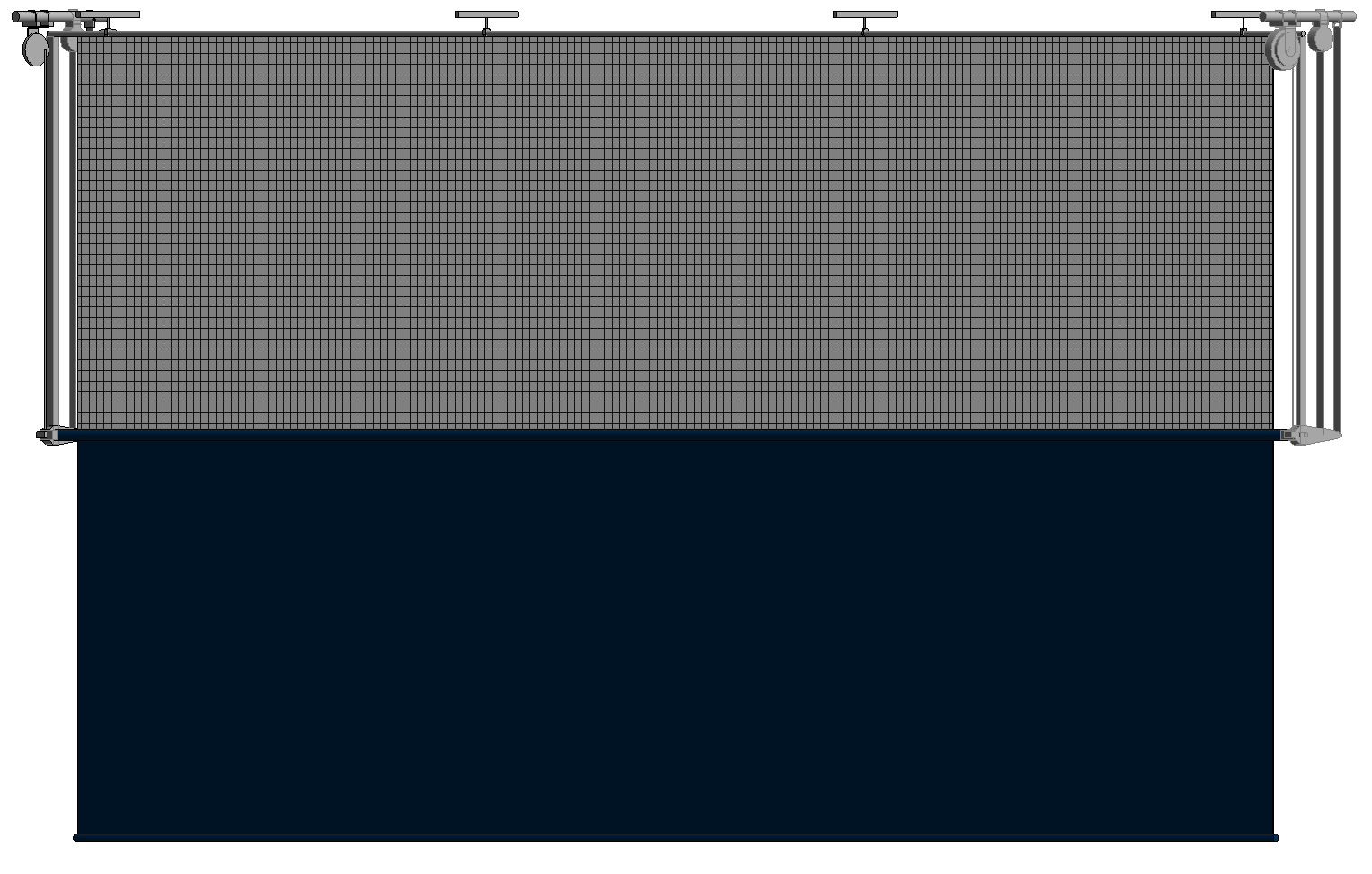

Solid and Mesh: Solid and Mesh with Padded Bottom Tube
All Solid: All Solid with Padded Bottom Tube
All Mesh: All Mesh with Padded Bottom Tube
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Horizontal seams to allow smooth rolling action.

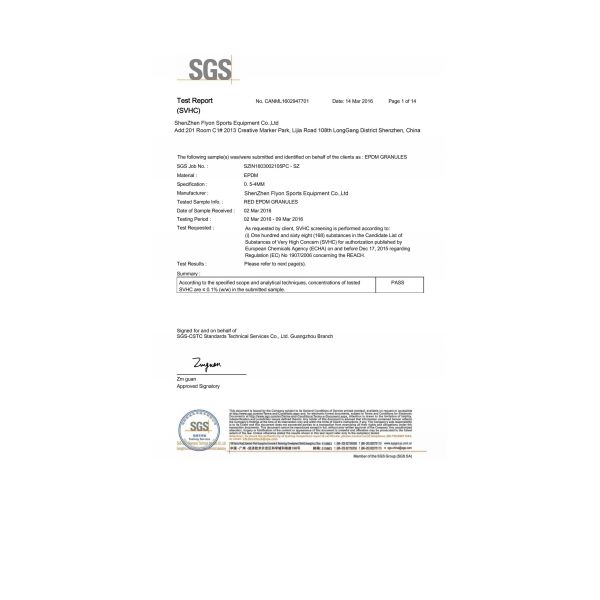

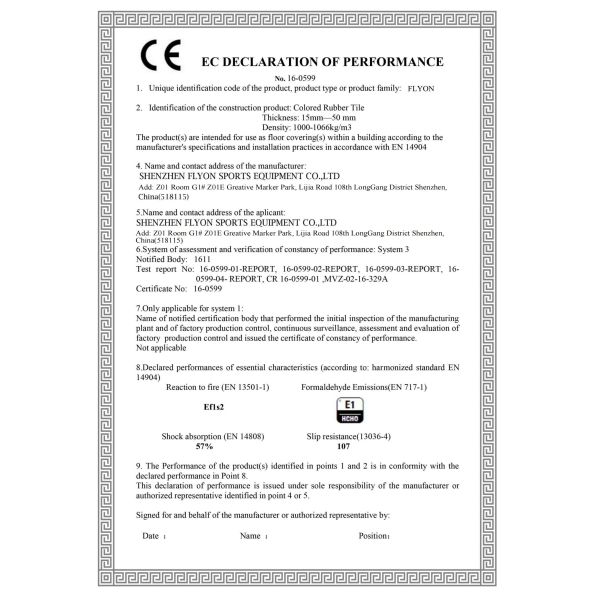

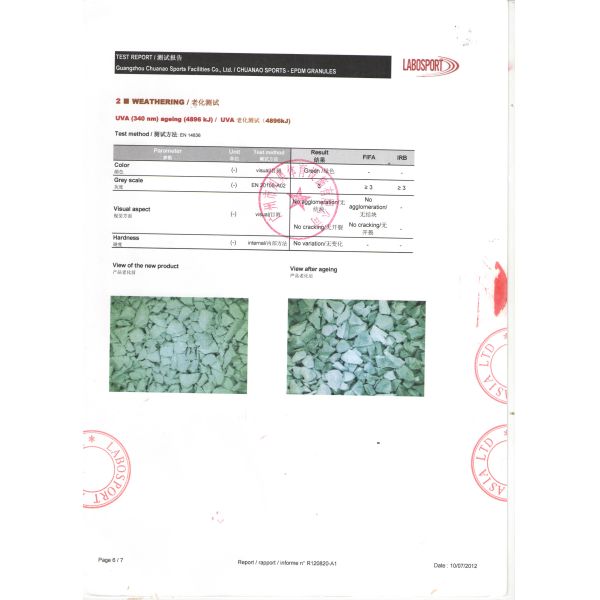

Certificate
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Packing&Shipping

Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed

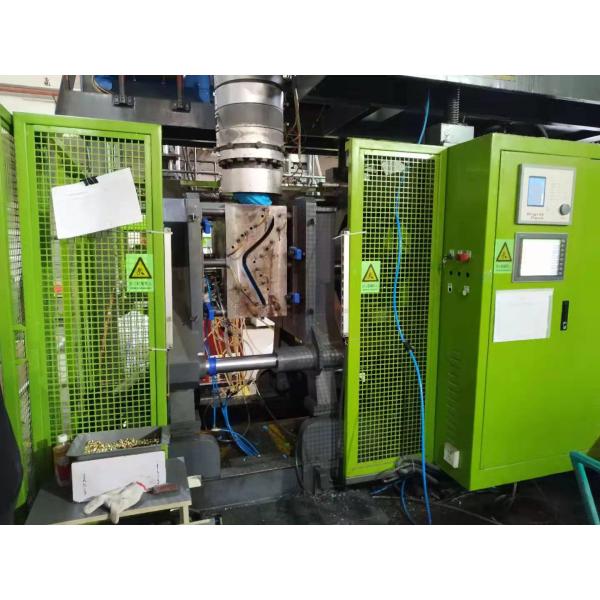

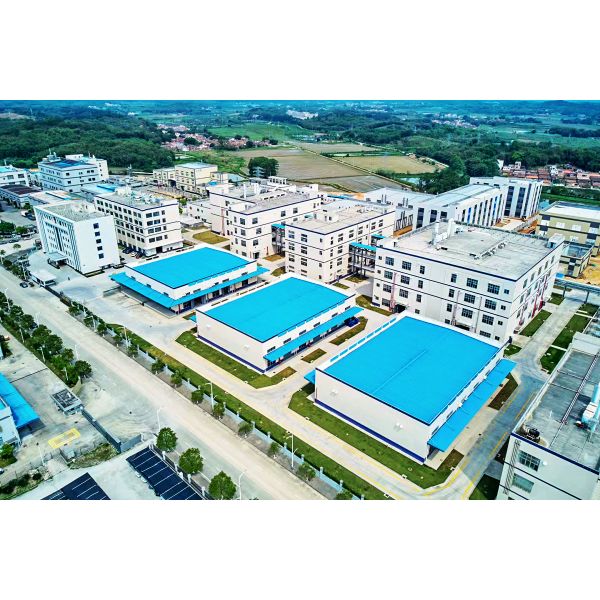

Company Introduction
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
FAQ
1. What is your delivery time?
We have flexible delivery time. For in stock and mass production, it is about 5 working days and 25-35 working days respectively.

2. Can you provide warranty?
Yes! We provide 5 years' quality warranty and 10 years' backup support.

3. Can I get your samples?
Yes! Flyon Sports offers free samples for our customers, about 3 days for preparation.

4. Do you provide OEM service?
Yes! we provide OEM and ODM service.
