SINOMEMB® household SNLE series RO membrane elements
SINOMEMB® series general household membrane elements includes ordinary household membrane elements, highly desalinated membrane elements, and ultra-low pressure membrane elements.It adopt large flux low pressure membrane, high desalination anti-pollution industrial membrane and low pressure ultra-high yield water membrane are rolled respectively.It is one of the most complete, stable and reliable membrane components in the industry.Among them, the ultra-low pressure membrane element can operate under the pumpless municipal water supply pressure of 36psi, which provides the channel suppliers with the possibility of new water machine development, and provides convenience for the kitchen space without power supply in the old terminal building. At the same time, high level of membrane elements design ability can accept performance and appearance of special-shaped membrane products customized.
3.1 Feature
- High recycling rate to help consumers save water bills;
- Anti-scaling, resistant to high TDS, longer service life;
- Dry membrane, convenient operation and longer shelf life;
- High quality elements significantly reduce or even eliminate QC costs for membrane elements
Specification
Testing Conditions Operation Limits and Conditions
Inlet Pressure ------------------------- 60Psi(0.41MPa) Max. Working Pressure --- 125Psi(0.86MPa)
Inlet Temperature ---------------------- 25℃ Max. Inflow Temperature ---------- 45℃
Concentration of Testing Solution 250PPm SDI Max. Inflow SDI ----------------- 5
Inlet PH value ------------------------- -- 7.5-8 Residual Chlorine ----------------- < 0.1PPm
Recovery Rate -------------------------- 15% PH Range of Feedwater ----------- 3-10
PH Range of Cleaning ------------- 2-12
Max. Pressure Drop ---------10Psi(0.07MPa)
- Permeate flow for each RO membrane element would be 15% floating up and down according to the feed water under the standard test condition.
- Above data is subject to a continuous test running of 30 minutes.
- Able to provide personalized, customized products by request.

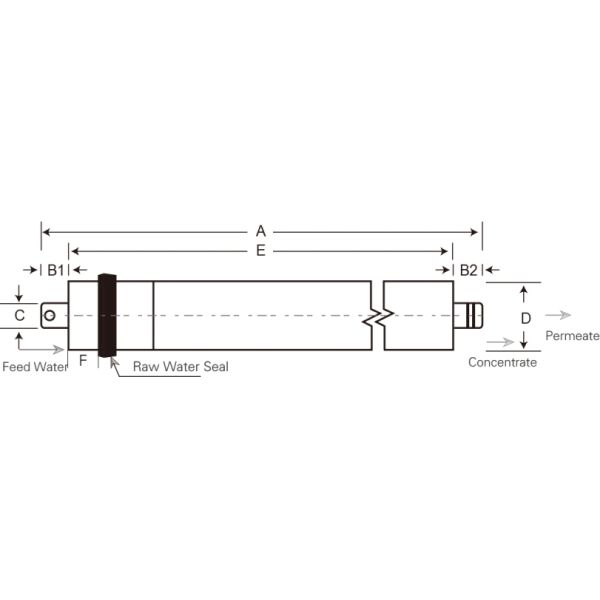

Model

| Model | Overall Dimension |
| A | B1 | B2 | C | D | E | F |
| TW1812-75G | 11.74(298) | 0.83(21) | 0.83(21) | 0.67(17) | 1.73±0.02(45±0.5) | 10.1(256) | 0.79(20) |
| TW1812-100G | 11.74(298) | 0.59(15) | 0.83(21) | 0.67(17) | 1.73±0.02(45±0.5) | 10.3(262) | 0.79(20) |


We are a high-tech enterprise specializing in reverse osmosis membrane, ultrafiltration membrane, nanofiltration and MBR membrane assembly, membrane production and sales service, and also a system design and proprietary service provider.
- The company has the core technology of preparing reverse osmosis membrane components, and has high production capacity, aiming tobuild a high-quality brand of film production and sales inChina.
- Main products include reverse osmosis membrane components,nanofiltration membrane components, ultrafiltration membrane components, MBR membrane and other high- performance membrane components, which have been widely used in water purification, medical pharmaceuticals, municipal water supply, boiler replenishment, electronic ultra- pure water, material concentration and separation industries. With outstanding quality and excellent service, our oducts export to all over the world



- Q:How is SINOMEMB membrane different from others?
- A:We offer value against your money, prices which are comparatively lower, performance equivalent to best membranes available and with higher longevity.
- Q:Are you a manufacturer?
- A.Yes,we have been in providing the professional products in wire mesh field for more than 10 years.
- Q:How about the delivery time?
- A:Usually within7-10days,customized order may need longer time.
