180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area
Specifications
Brand Name :
SINOMEMB
Model Number :
SNU-HO-2-G1500
Certification :
NSF
Place of Origin :
China
MOQ :
5
Packaging Details :
Standard export packaging
Core Components :
MBR
Product name :
hollow fiber ultrafiltration membrane, ultrafiltration system, PVC Hollow fiber UF membrane module
Pore size :
customized., from 1μm to 0.05μm, 0.01micron, 1.0μm, 0.2μm
Usage :
Waste water treatment, , Liquid Filter, remove bacterias, Purification
Module :
inside-out
Nominal Pore Size :
0.03μm
Size :
180×1920mm
Membrane Material :
PES
Surface Area :
55.7m2
Description
UF membrane element size

180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area

180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area

180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area

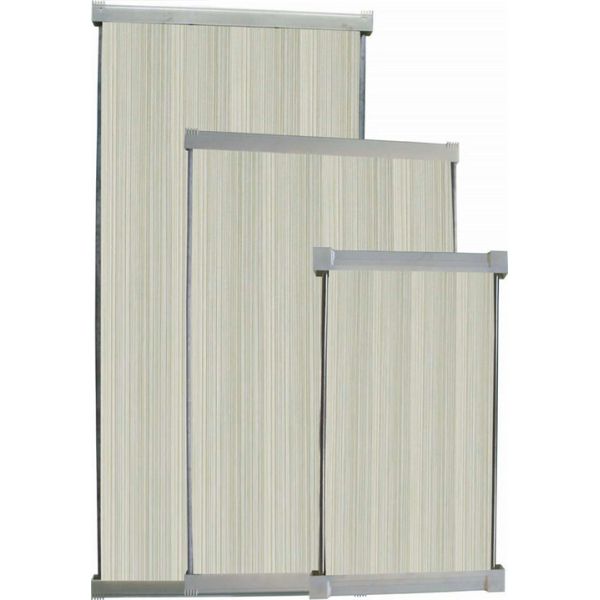

MBR membrane for wastewater treatment plant
Feature:
  1. High intensity:

    PVDF alloy membrane inside and outside compact double layer structure,make membrane intensity high, resolve the defect of traditional PVDF membrane.

  2. Better anti-pollution performance:

    PVDF alloy membrane due to its smooth membrane surface features and unique electric charge property, make it stronger anti-pollution performance.

  3. Big membrane flux

    PVDF alloy special nanometer material form reticular membrane structure, make it has higher porosity and big water flux.

  4. Better interception performance:

    PVDF alloy membrane inside and outside compact double cortex structure decide its superior interception performance

  5. Cleaning flux better recovery

    PVDF alloy membrane unique inside outside compact layer structure,make pollutant only stay membrane outside surface, won’t enter into membrane mesh hole, thus it is easy cleaning, better recovery of cleaning flux.

  6. PVDF alloy membrane module modulation design,compact structure, small occupy area, easy assembly application.
Specifications:
Model No. KH-MBR-12-Co-PVDF KH-MBR-15-Co-PVDF KH-MBR-18-Co-PVDF
Membrane Area 12 m2 15 m2 18 m2
Height 1550 mm 1850 mm 1850 mm
Width 645 mm 645 mm 645 mm
Weight 7 kg 8 kg 10 kg
Micropore Size 0.05μm 0.05μm 0.05μm
Inner diameter Φ1.0 mm Φ1.0 mm Φ1.0 mm
Outside Diameter Φ2.4 mm Φ2.4 mm Φ2.4 mm
UF specifications and models Membrane material Operation mode Membrane element size (mm) Effective membrane area (㎡) Nominal filter pore size (μm)
SNU-HI-1-K600ER PES inside-out Φ216*2130 60 0.02

Note: The element model (membrane performance, appearance size) not mentioned can be customized according to the order quantity.
