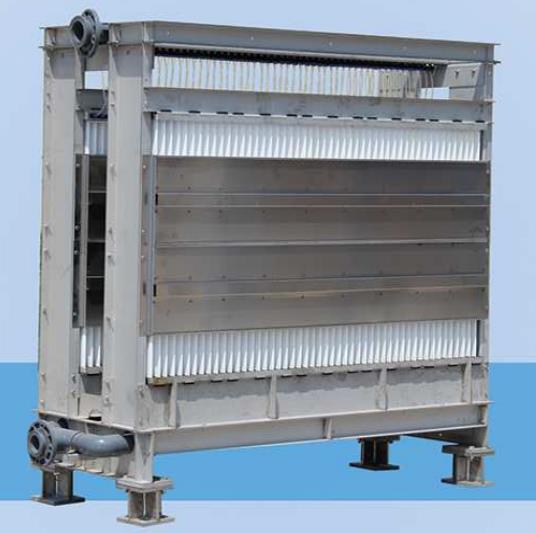

Advanced Membrane Module Bioreactor Supplier Compact 30M3/H Membrane Bioreactor For Wastewater Treatment

Membrane Bioreactor (MBR) is a new type of wastewater treatment system which organically combines membrane separation technology and biological treatment technology. The membrane module replaces the end secondary sedimentation tank of the traditional biological treatment technology, maintains a high activated sludge concentration in the bioreactor, increases the organic load of the biological treatment, thereby reducing the footprint of the sewage treatment facility, and reduces the amount of residual sludge by maintaining a low sludge load.

Membrane Bioreactor (MBR) process is a combination of biological wastewater treatment and membrane filtration.

Biodegradable pollution is reduced using bacteria and microorganisms. Following biological treatment, the activated-sludge is separated from the treated water by a microfiltration membrane.

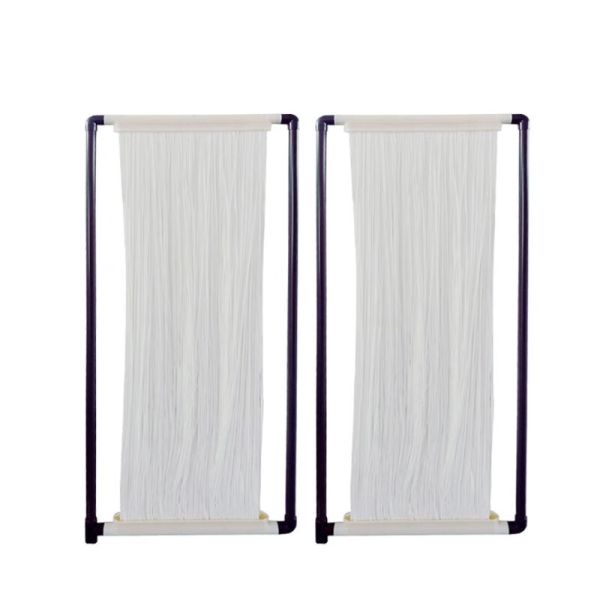

The MBR process involves a suspended growth activated sludge system that incorporates microporous flat sheet membranes in modules for solid/liquid separation. The flat sheet membranes are mounted vertically in modules and are submerged into the activated sludge tank. Vacuum is applied to the permeate manifold and this draws water from the reactor-side to the inside of the flat sheet membranes and out of the system. The MBR process eliminates the need for secondary clarifiers.

• Works through virtually any raw water quality change or upset
• Reduction of nutrients like nitrogen and phosphorus by control of the process
• Fully automated for simplified design and operation
• Outstanding technology for virtually all wastewater treatment applications – from greenfield plants to retrofits to water reclamation projects
• Modular technology allows extension of plant treatment capacity
• Single header and centrally located air nozzles reduce aeration by up to 50% for energy savings
• Strong PVC module housing reduces weight for ease of handling and installation.

Seawater desalination

Food and beverage

Chemical Engineering

Petroleum

Semiconductor

Agriculture

We are a high-tech enterprise specializing in reverse osmosis membrane, ultrafiltration membrane, nanofiltration and MBR membrane assembly, membrane production and sales service, and also a system design and proprietary service provider. The company has the core technology of preparing reverse osmosis membrane components, and has high production capacity, aiming to build a high-quality brand of film production and sales in China. Main products include reverse osmosis membrane components,nanofiltration membrane components, ultrafiltration membrane components, MBR membrane and other high- performance membrane components, which have been widely used in water purification, medical pharmaceuticals, municipal water supply, boiler replenishment, electronic ultra- pure water, material concentration and separation industries. With outstanding quality and excellent service, our products export to all over the world!

Partial OEM model parameters of SINOMEMB^® UF membrane

Note: The element model (membrane performance, appearance size) not mentioned can be customized according to the order quantity.
