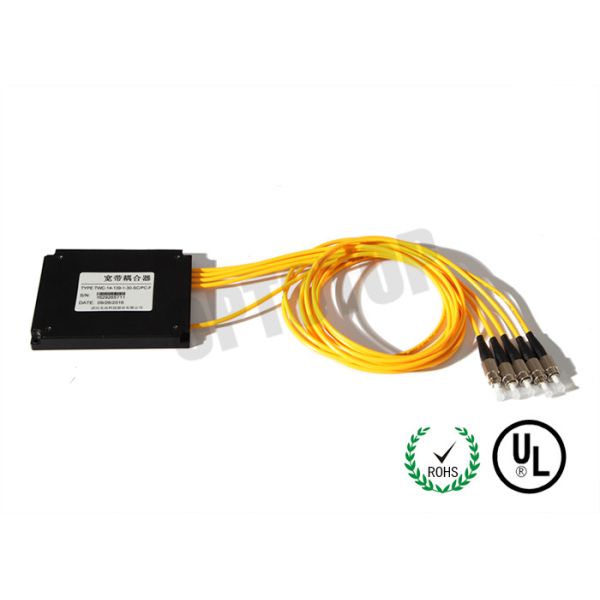

4.3~21.5dB Fiber Optic PLC Splitter 1 X 4 ABS Box For CATV Networks
4.3~21.5dB Fiber Optic PLC Splitter 1 X 4 ABS Box For CATV Networks
Specifications
Brand Name :
Geehe or OEM or ODM
Model Number :
Fiber Optic PLC Splitter
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister Box or Carton Box
Operating wavelength :
1260~1650nm
Fiber Type :
Corning G657A or G652D
Configuration :
1X4~2X64
Pigtail :
0.25/0.9/2.0/3.0mm
Insertion Loss :
4.3~21.5dB
Return Loss :
Less than or equal to 55dB
Input Fiber Length :
0.9/1.6/2.0/3.0/4.8mm, or Customized
Output Fiber Length :
0.9/1.6/2.0/3.0/4.8mm, or Customized
Input Connector :
FC/LC/SC/ST/MPO, or Customized
Output Conector :
FC/LC/SC/ST/MPO, or Customized
Description

Single Mode ABS Box Module1 x 4 PLC Splitter 2.0mm FC/UPC Connector

4.3~21.5dB Fiber Optic PLC Splitter 1 X 4 ABS Box For CATV Networks

Description
Planar Lightwave Circuit Splitter is a passive component used for uniformly splitting. The PLC Splitter is built based on accurate alignment system and the mature manufacturing technology. It is fully compliant with Telcordia GR-1209 and GR-1221 rebilitiy qualification requirement.

Features
High uniformity and reliability
Wide operating wavelength 1260~1650nm
Low insertion and return loss
Built with Corning G.657 Grade A optical
Low Polarization Dependent Loss(PDL)
Operating temperature -40°C to 85°C

Applications
FTTH deployments
CATV networks
Access/PON distributions
LAN,WAN,Metro

Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances

4.3~21.5dB Fiber Optic PLC Splitter 1 X 4 ABS Box For CATV Networks
1xN/2xN PLC Splitters (without connects)

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating wavelength (nm) 1260~1650
Port wavelength range (nm) 1310±20; 1490±10; 1550±20
Insertion loss @ 1310 nm/1550 nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return loss @ 1310/1550 nm (dB) ≤55
Input power (mW) 250 max
Operating temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1


Package dimensions

xWxH(mm) PORT
100x80x10 1x4 1x8 2x4 2x8
120x80x18 1x16 1x32 2x16 2x32
140x114x18 1x32 2x32 1x64
