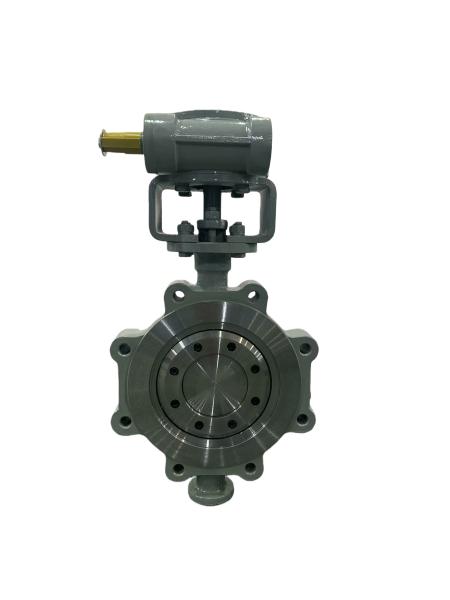

API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
API 609 ASME B16.34 Stainless Steel CF8 CF8m Wafer Lug Flanged Triple Offset Butterfly Valve
Specifications
Brand Name :
Sindara steel
Model Number :
BV-W
Certification :
ISO 9001, ISO 14001, ISO 45001, CE
Place of Origin :
China
MOQ :
1 pcs
Price :
50USD-20000USD
Payment Terms :
L/C, T/T
Supply Ability :
1000000
Delivery Time :
10-30DAYS
Packaging Details :
wooden case
Description
Description

The lug butterfly valve is a specially designed wafer-type butterfly valve. Its most notable feature is the bolt-hole lugs on both ends of the valve body. During installation, bolts pass directly through these lugs to secure the valve between two pipe flanges without passing through the valve interior.

Technical Parameters

Nominal Pressure: PN6, 10, 16, 25. Nominal Diameter: DN50 ~ DN1200 and larger.
Valve Body Material: Gray Cast Iron (HT250), Ductile Iron (QT450), Cast Steel (WCB), Stainless Steel (CF8/304, CF8M/316), Copper Alloy. Connection Type Double-lug wafer-type.

Product value advantage

● Easy installation, especially suitable for terminal equipment
●Compact structure and light weight
●Highly cost-effective
●Low flow resistance and fast opening and closing
●Simple maintenance
Applications

Water supply and drainage systems: Municipal water supply, sewage treatment plants, fire protection systems.

Heating, ventilation and air conditioning (HVAC): Hot and cold water circulation systems.

Industrial processes: On/off control of non-corrosive media in the chemical, food, pharmaceutical, and paper industries.

Shipbuilding: Seawater and ballast water systems.

Energy industry: Power plant cooling water systems.
