Specifications
Description

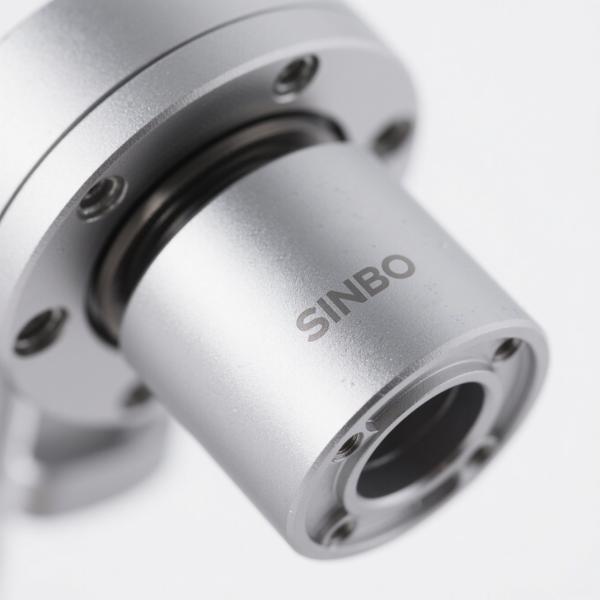

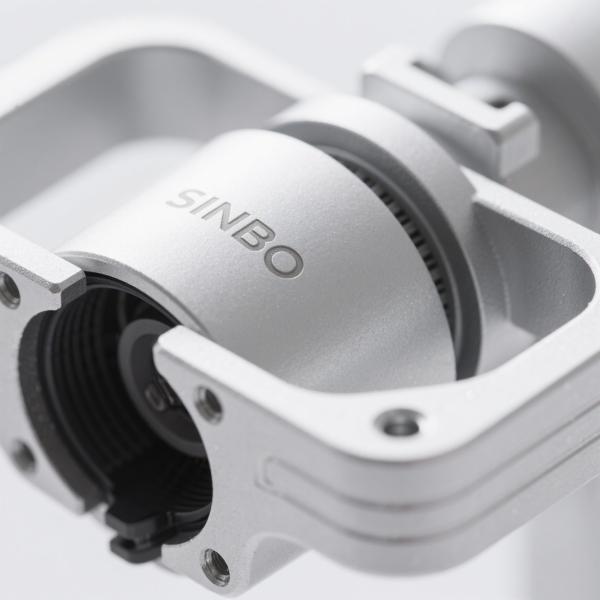

LIDAR Rotating Bracket Aluminum Die Casting for Service Robot Perception Navigation Module
The LIDAR Rotating Bracket (Aluminum Die-Casting) is a high-precision core component specifically designed for service robot perception and navigation systems. Manufactured using aerospace-grade aluminum die-casting technology, this product offers exceptional structural stability and rotational accuracy, providing 360° continuous rotation support for various LIDAR sensors, significantly expanding the environmental perception range of robots and enhancing mapping and navigation performance.
Key Features
  • High-Precision Rotation Mechanism: Utilizes precision bearings and servo control to ensure rotation angle error within ±0.5°, providing a stable and reliable foundation for radar scanning
  • Lightweight Yet Robust Structure: Aerospace-grade aluminum die-casting technology ensures structural strength while reducing overall weight by more than 30%
  • Full Compatibility Design: Supports multiple mainstream LIDAR models (Velodyne, Robosense, Sick, etc.) with customizable installation interfaces
  • Thermal Management Optimization: Integrated heat dissipation design prevents overheating during prolonged operation, suitable for continuous service robot applications
  • Anti-Interference Shielding: Electromagnetic shielding design reduces interference with radar signals, ensuring data acquisition accuracy
Technical Specifications
Parameter Category Technical Specification Test Conditions
Material Property Aerospace Aluminum Alloy ADC12 Complies with GB/T 15115 standard
Rotation Range 360° continuous unlimited rotation No restrictions
Rotation Accuracy ±0.5° Under full load conditions
Maximum Load Capacity 5kg Static load
Rotation Speed Range 0-60 RPM Stepless adjustable
Operating Temperature -20℃ ~ +80℃ Industrial grade standard
Protection Rating IP54 Dust and water resistant
Interface Type Supports CAN/RS232/485 Industrial bus compatible
Installation Method Standard flange installation Compatible with multiple LIDAR models
Service Life >10,000 hours Continuous operation test
Applications
  • Service Robot Navigation: Provides accurate environmental perception for restaurant service robots and hotel guidance robots, enabling autonomous navigation and obstacle avoidance
  • Intelligent Warehouse Logistics: Applied in AGVs and warehouse handling robots to improve navigation accuracy and efficiency between shelves
  • Medical Assistance Robots: Used in hospital delivery robots and disinfection robots to ensure safe navigation in complex environments
  • Cleaning Service Robots: Integrated into commercial cleaning robots to enhance mapping and path planning capabilities in large areas
  • Security Inspection Robots: Supports 360° environmental monitoring and dynamic obstacle detection for security patrol robots
Customization Services
  • Size Customization: Tailored bracket solutions based on customer's LIDAR model and installation space requirements
  • Interface Adaptation: Support for various electrical interface customization (CAN bus, Ethernet, RS485, etc.)
  • Speed Adjustment: Adjust rotation speed range and control accuracy according to application needs
  • Firmware Development: Customized firmware development services for specific algorithm requirements
  • Multi-Sensor Integration: Integration of additional sensors such as IMU and encoders for multi-sensor fusion solutions
Support and Services
  • Technical Support: Round-the-clock technical consultation and solution design services
  • Installation Guidance: Detailed installation manuals and video guidance for proper installation
  • Maintenance Training: User maintenance training to extend product service life
  • OTA Updates: Support for firmware remote upgrades and continuous performance optimization
  • Warranty Policy: 24-month quality assurance period with lifetime maintenance support
