P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall
Specifications
Brand Name :
SILU
Model Number :
P4mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
T/T
Supply Ability :
800 m² per Month
Delivery Time :
18 Days
Packaging Details :
Wooden case , flight case
Price :
USD1580.00-2960.00 per m²
Leds :
SMD2525/SMD1921
Color Config. :
3-in-1 1R1G1B
Application :
Outdoor fixed installaton
IP Grade :
IP65
Brightness :
>5000 nits
Warranty :
3 Years
Description

P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall

4.0mm pixel pitch, 5,000 nits+ (max.8,000nits) brightness, IP65 outdoor rental & fixed applications

  • Silu`s unique and private design
  • SMD1921 LED lamps
  • MBI5153 or CH2053 driving ICs
  • 2~4 Layers 1.6mm Thickness PCB
  • 128mmx128mm Size LED module
  • 512mmx512mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Slim and lightweight support easy and quick seamless assembling
  • 4m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

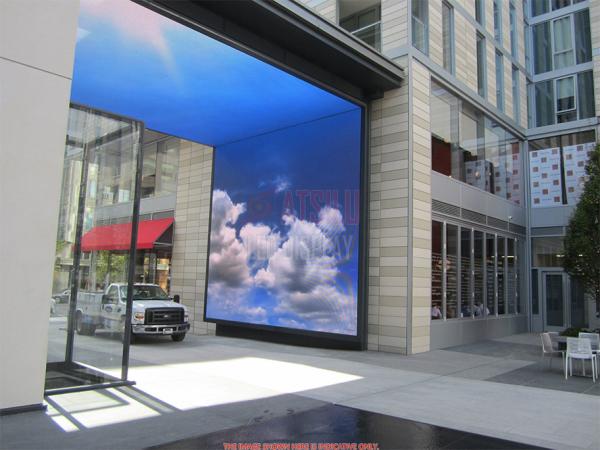

Silu`s P4mm High-Resolution Outdoor LED Display is designed and produced for high-end rental and advertising operator customers, which is mainly used for outdoor advertising, stage background, or other kinds of broadcasting and live video show that always brings the users convenient and comfortable experience. The fine pixel pitch P4mm High-Resolution Outdoor LED Display deliveries a great image and video resolution, people can see the contents on the LED display clearly even in an extremely close viewing distance.

Our P4mm High-Resolution Outdoor LED Display is IP65 rating waterproof and dustproof, support both outdoor rental and fixed installations, which surely can be one of the better ideal choices for mounting a large outdoor high-definition LED video wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall

P4mm High-Resolution Outdoor LED Display HD Digital Broadcasting Video Screen Wall

Technical Specification

P4mm HD Outdoor LED Display
Pixel Pitch 4mm (0.1575")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 62,500 Pixels/m²
LED Module Size: 128mmx128mm (5"x5")
Resolution: 32*32 Pixels
LED Cabinet* Size: 512mmx512mm (20.1575"x20.1575")
Resolution: 128x128 pixels
Material: Aluminum
Weight: <8.8Kg (19.5 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >5,000 (max.8,000) cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/4~1/16 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 3m~>100m (9ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
