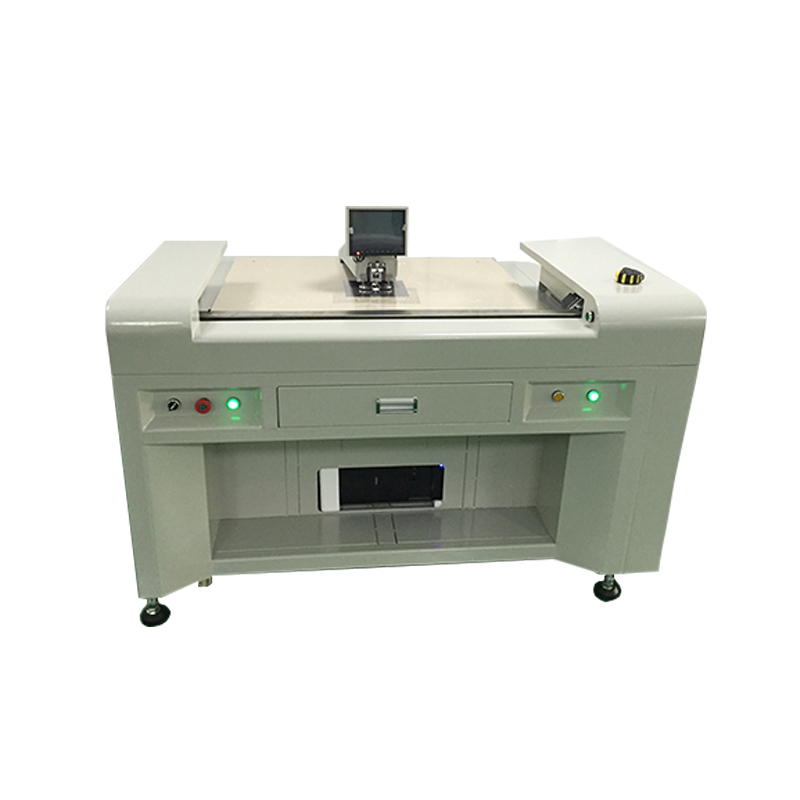

Automatic Manipulator CCD Guide Hole Punching Machine for PET/PC/Thin Aluminum
Automatic Manipulator CCD Guide Hole Punching Machine for PET/PC/Thin Aluminum
Specifications
Brand Name :
SILITRON
Model Number :
SLTJ-450
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Delivery Time :
25 days
Packaging Details :
L1650×W1550×H1250（mm）
Processing Size :
400*500mm
Punching Diameter :
2mm-5mm
Precision :
±0.015mm
Thickness :
0.01-3.0mm
Power Supply :
AC 220~240V 50Hz
Power :
2kW
Air Pressure :
0.5～0.7MPa
Punching Force :
4000N
Punching Speed :
0.4s/Hole
Description

Applicable Scope

FPC, film, nameplates, signs, PET, PC, PVC, adhesive labels, membrane switches, flexible circuit boards, IML/IMD, mobile phone panels, thin aluminum sheets, and other precise positioning punching applications.

Machine Features

1. Fast punching speed, high production efficiency.

2. CCD finds images within the visual range, ensuring stable and efficient image acquisition.

3. High degree of automation; users only need to place the workpiece in the corresponding position, eliminating the need for manual alignment in the CCD area.

4. Utilizes embedded system combined with PC control; the controller adopts DSP chip, which can be directly soldered onto the circuit board, ensuring safety and reliability without the need for a PC. The punching software is controlled by the PC, and software upgrades only require upgrading the punching software, ensuring high efficiency and performance.

Workable Marks

Automatic Manipulator CCD Guide Hole Punching Machine for PET/PC/Thin AluminumAutomatic Manipulator CCD Guide Hole Punching Machine for PET/PC/Thin Aluminum
