EI 192 Silicon Steel Sheets
EI 192 Silicon Steel Sheets
Specifications
Place of Origin :
JiangSu,China
Brand Name :
HengTong
Certification :
CE
Model Number :
Customer settings
MOQ :
50-100
Price :
consultative
Packaging Details :
standard packaging
Delivery Time :
7-10
Type :
Oriented Silicon Steel
Shape :
EI Lamination
Technique :
Cold Rolled
Design :
OEM
Description

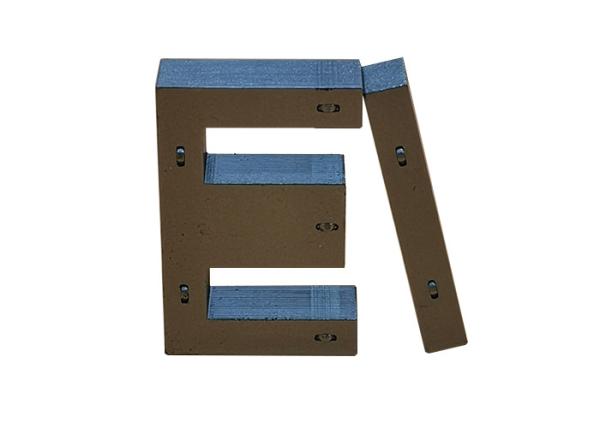

EI 192 lamination silicon steel iron cores for transformer

EI Lamination is made by the silicon steel strip.The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.

Three -phase EI lamination is made by the silicon steel strip. the model of three-phase EI lamination is from three-phase (20) to three phase (100),and the hole size is from Φ4.5 to Φ14, The gap sizes of transformer lamination core can be customized.

UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100,and the hole zType a b c d e holes aperture(Φ)

ITEM CODE SIZE Q A B C D E F G i K N d
HT518 EI-54-4H-GAP-XX 0.5,3.0 54 45 18 9 9 27 36 45 9 9 3.5
HT519 EI-85.8-4HGAP-XX 0.99 85.8 71.5 28.6 14.3 14.3 42.9 57.2 71.5 14.3 14.3 5
HT520 EI-96-4HGAP-XX 0.9,1.5；2.54；2.7,3.0,5.0 96 80 32 16 16 48 64 80 16 16 6
HT521 EI-105-4HGAP-XX 2.0, 2.3,2.5 105 87.5 35 17.5 17.5 52.5 70 87.5 17.5 17.5 6
HT522 EI114-4HGAP-XX 1.8, 2.6 , 3.3, 3.5, 114 95 38 19 19 57 76 95 19 19 7
HT523 EI-120-4HGAP-XX 4.0 120 100 40 20 20 60 80 100 20 20 7
HT524 EI-132-4HGAP-XX 3.0 132 110 44 22 22 66 88 110 22 22 7
HT525 EI-192-4HGAP-XX 1.0,3.0 192 160 64 32 32 96 128 160 32 32 10
