CRNGO 50HZ-60HZ EI-100 Silicon Electrical Steel
CRNGO 50HZ-60HZ EI-100 Silicon Electrical Steel
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HengTong
Certification :
CE
Model Number :
Customer settings
MOQ :
50-100
Price :
consultative
Packaging Details :
standard packaging
Delivery Time :
7-10
Type :
Non-oriented Silicon Steel
Shape :
EI Lamination, EI Lamination
Application :
EI 96
Description

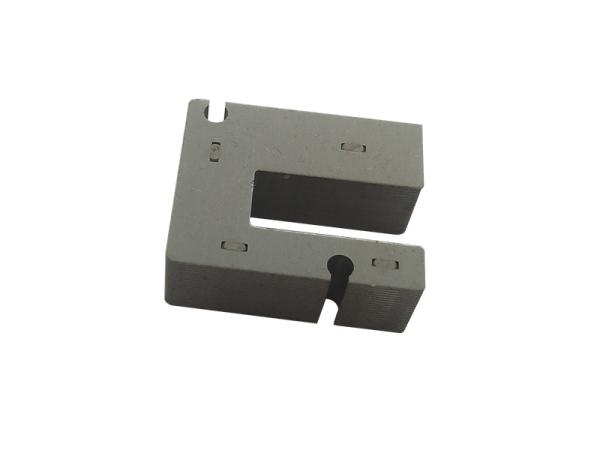

CRNGO EI-100 voltage and transformer silicon steel EI lamination core

CENTERSKY is a manufacturer who produce single phase / three phase lamination : EI, UI, 3PEI.etc. The thickness can be from 0.23-0.5mm,CRNGO and CRGO from famous steel factory.
Any comments are welcome.

Thickness Tolerance

The good thickness tolerance is characterized by small difference in thickness in a direction parallel to the direction of rolling, small difference in thickness in a direction perpendicular to the direction of rolling, and high lamination factor.

Processing Properties

The product is suitable for punching and cutting with excellent dimensional tolerance.

Insulation Coating

The insulation coating has small color deviation, good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. There are several types of insulation coating available for production. According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and domestic environment protection laws and regulations including EU RoHS and REACH regulations.

SIZE

EI-35 to EI-360

3PEI-17.5-3PEI-100
THCIKNESS

0.23-0.35MM (CRGO)

0.35-0.5MM (CRNGO)
MATERIAL

M3, M4, M5, M6 (CRGO)

35W250, 35W300, 35W400 (0.35MM)

50W250, 50W310, 50W400, 50W470, 50W600, 50W800 (0.5MM)
FREQUENCY 50HZ-60HZ
COATING

T2 Inorganic ( CRGO )

T4 Semi-organic (CRNGO)
PROCESS TECHNOLOGY ANNEALLING & WITHOUT ANNEALLING
APPLICATION

CONTROL TRANSFORMER, AUTO TRANSFORMER, ISOLATION TRANSFORMER,

POWER TRANSFORMER; BALLAST, REACTOR,INDUCTOR,INVERTER POWER,

VOLTAGE STABILIZERS.etc.
