Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Specifications
Brand Name :
TENCHY
Model Number :
TCM-005
Certification :
USP CLASS VI
Place of Origin :
CHINA
MOQ :
500
Price :
NEGOTIATBLE
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per day
Delivery Time :
5-8 days
Packaging Details :
10 pcs/box (Individually sterile sealed)
Description

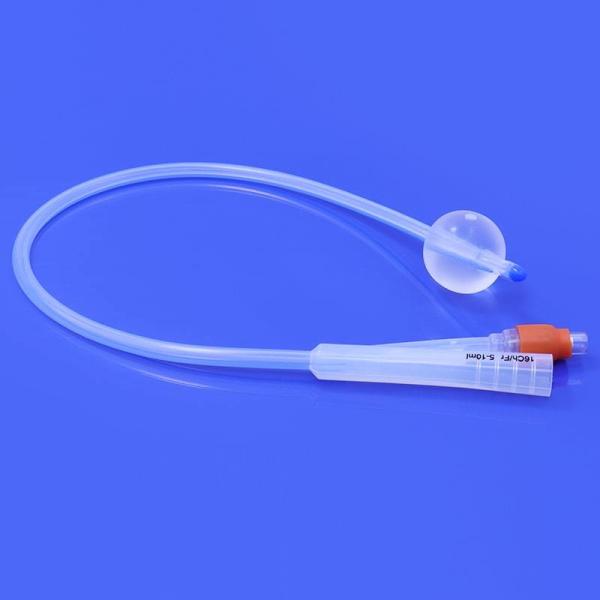

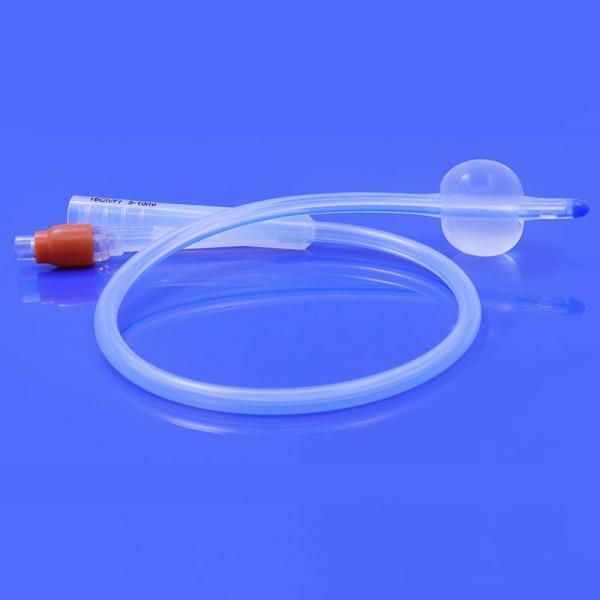

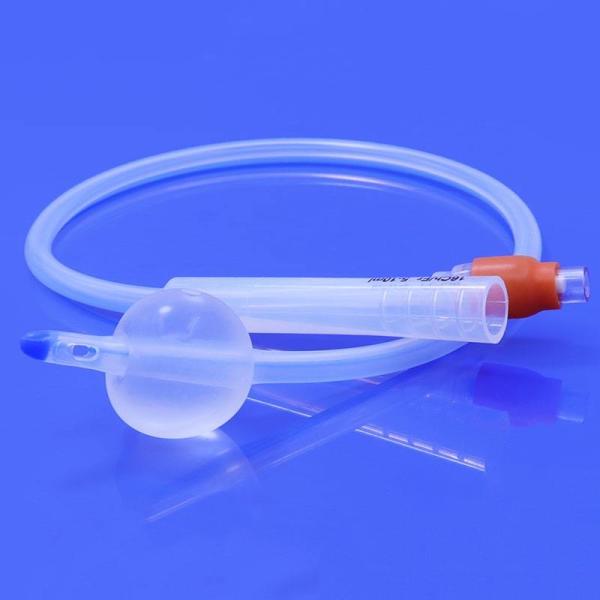

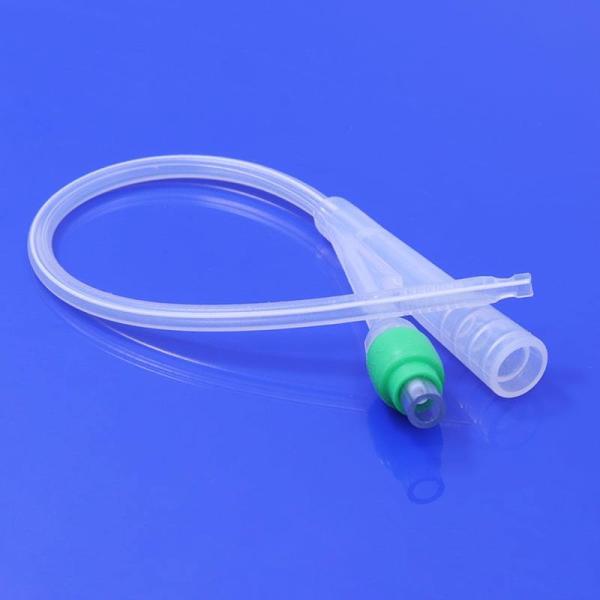

Disposable Two-Lumen Silicone Foley Catheter

​​Core Advantages​​: Medical-grade Silicone × Dual-Lumen Fluid Dynamics × Visual Operation Support

​​I. Innovative Structure & Material​​

Feature

Technical Specifications
​​Dual-Channel System​​

① ​​Inflation Lumen​​: Spherical balloon with precision pressure control, anti-collapse
② ​​Drainage Lumen​​: High-flow lumen (>8mm²), anti-clog design
​​Medical Silicone Tubing​​

ISO 10993 biocompatibility certified:
- Zero cytotoxicity/sensitization/irritation
- Low protein adsorption surface (≤3μg/cm²)
​​360° Symmetrical Balloon​​ Radial expansion deviation <5%,burst pressure ≥6ATM (Complies with YY 0325)

​​II. Clinical Enhancements​​

· ​​Visualization System​​:

o Embedded barium sulfate line (X-ray visible length ≥35cm)

o Biomarker scale (5mm graduations, ±0.3mm tolerance)

· ​​Kink-Resistant Tubing​​:

o Flexural strength ≥150N (ASTM D790)

o Chemical resistance: Compatible with glutaraldehyde/peracetic acid disinfectants

· ​​Sterility Assurance​​:

o EO sterilization (residue ≤0.1ppm)

o Dual sterile barrier packaging (ISO 11607)

​​Enhanced Specifications Table​​

​​Core Parameters​​

Size (Fr) Outer Ø (mm) Lumen Area (mm²) Balloon Vol (ml) Max Flow (ml/min) Connector Type
8Fr Ø2.67 3.5 3-5 35 Standard Luer lock
12Fr Ø4.00 8.4 5-10 85 Anti-reflux valve
16Fr Ø5.33 14.1 5-15/30 150 Rotary diverter
20Fr Ø6.67 22.1 5-15/30 240 Suction port
26Fr Ø8.67 37.9 5-15/30 400 Irrigation 3-way

​​Performance Validation​​

Test Item Standard Value Compliance Standard
Balloon Fatigue Resistance >5,000 inflation/deflation cycles ISO 20695
Tensile Strength ≥15N/mm² GB/T 1040.3
Short-term Biofilm Formation <10² CFU/cm² (72hrs) ASTM E2180
Acute Hemolysis Rate ≤0.8% (vs. 5% threshold) ISO 10993-4
