Specifications
Brand Name :
TENCHY
Model Number :
TSF-002
Certification :
ROHS,FDA,ISO9001,LFGB,SGS
Place of Origin :
CHINA
MOQ :
200 ㎡
Price :
NEGOTIABLE
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1,000 ㎡ per day
Delivery Time :
5-8 work days
Packaging Details :
PE bag/Reel/Carton
Product Name :
Foamed silicone gasket
Grade :
Food,Medical,Rohs
Working temperature :
-50 ℃ to +200℃
Hardness :
30 ± 5 shore C
Material :
100% Silicone Rubber
Size :
Customizable
Color :
Red,Gray,Customizable
Surface :
Smooth,Textured
Sample :
available
Description

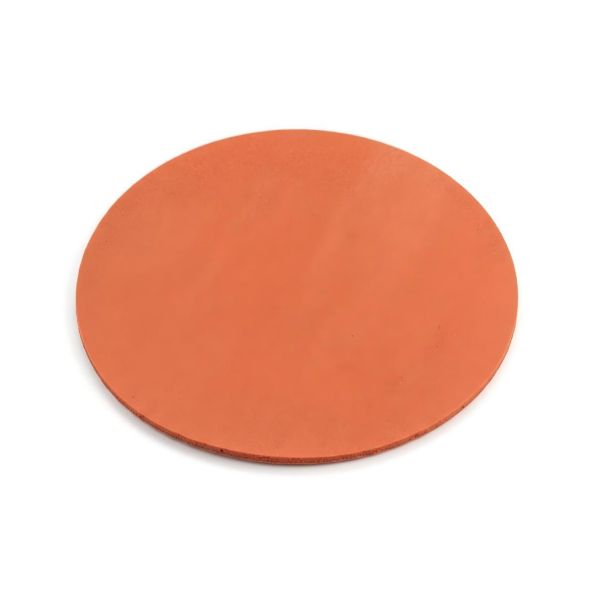

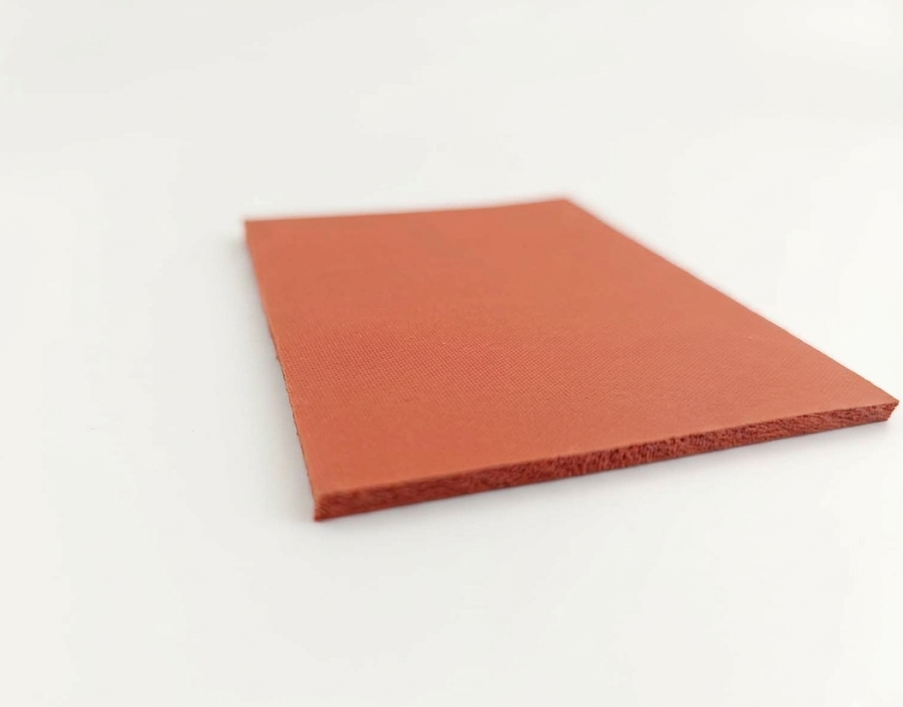

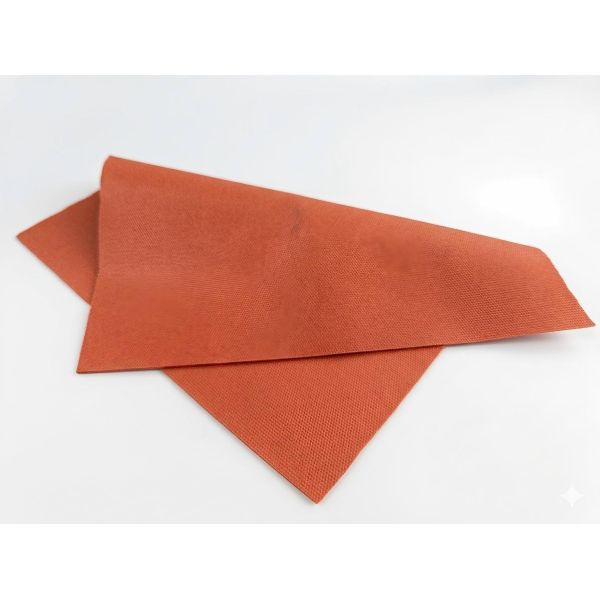

Customizable Red Orange Cuttable Foamed Silicone Gaskets
High-performance flame retardant, weather resistant silicone sponge sheet designed for demanding sealing applications across multiple industries.
Product Overview
Our silicone sponge sheet is a premium material engineered for superior sealing, insulation, and cushioning performance. Manufactured from high-quality silicone rubber, this flexible and durable sheet offers exceptional resistance to extreme temperatures and harsh environmental conditions.
Key Features
  • Customizable Thickness & Size: Available in various dimensions to meet specific application requirements
  • High Temperature Resistance: Withstands temperatures from -60°C to 250°C
  • Flame Retardant: Meets UL94 V-0 standards for superior flame resistance
  • Compression Set Resistance: Maintains performance under pressure with low compression set of ≤9.4% at 100°C for 22 hours
  • High Tensile Strength: Ensures long-lasting durability with tensile strength of ≥0.90 MPa
  • Environmental Compliance: ROHS compliant for eco-friendly applications
Technical Specifications
Testing Item Unit Standard Limit Actual Measurement
Appearance / / Red/Grey Red/Grey
Density g/cm³ GB/T 533-2008 0.50±0.1 0.386
Hardness (Shore C) / GB/T 531.1-2008 30±5 20
Compression Set (100°C x 22h, 50%) % ASTM D 1056 @ 100°C ≤10.0 ≤9.4
Tensile Strength MPa GB/T 528-2009 ≥0.7 ≥0.90
Elongation at Break % GB/T 528-2009 ≥250 ≥286
Tear Strength kN/m GB/T 529-2008 ≥3.0 ≥3.47
ROHS Compliance / ROHS Qualified Qualified
Material Specifications
  • Thickness: Customizable from 0.8 mm to 18 mm
  • Standard Colors: Red, Grey, with custom color options available
  • Maximum Width: 1050 mm
  • Dimensional Tolerances: Complies with GB/T 18944.1-2003 for polymeric porous elastic materials
Applications
  • Automotive: Gaskets, seals, and vibration dampers
  • Electrical & Electronics: Insulation and sealing for electrical components
  • Construction: Weather seals, soundproofing, and thermal insulation
  • Medical Devices: Sealing for medical equipment requiring high cleanliness standards
Customization Options
  • Shape: Available in round, square, and custom shapes
  • Thickness: Tailored to specific application requirements
  • Color: Standard colors or custom color matching
  • Size: Manufactured to exact specifications for perfect fit
Storage & Safety Information
Store in a cool, dry, and well-ventilated area. Avoid contact with sharp objects that may damage the surface or packaging.
