Specifications
Brand Name :
Lianti
Model Number :
KDW-3582 (6:1)
Certification :
ISO9001
Place of Origin :
Jiangsu, China
Supply Ability :
10 Ton/Tons per Month
MOQ :
500.0 Kilograms
Packaging Details :
Component A: 12KG, plastic drum Component B: 5KG, plastic drum.Also can be customized.
CAS No. :
63148-60-7
Other Names :
Silicone Sealant
MF :
Mixture
EINECS No. :
Unspecified
Classification :
Double Components Adhesives
Main Raw Material :
Silicone
Usage :
Construction, Fiber & Garment, Footwear & Leather, Packing, Transportation, Woodworking, solar module
Type :
Condensation, Condensation
Color :
White/Black/Gray
Application :
Solar module
Appearance :
Paste
Certificate :
ISO9001
Packing :
12KG/5KG
Quality :
Guarantee
Shelf life :
1 year
Feature :
Excellent thermal conductivity
Keywords :
kdw
Description

Excellent thermal conductivity KDW-3582 (6:1) two component silicone compound for solar module

Product Show

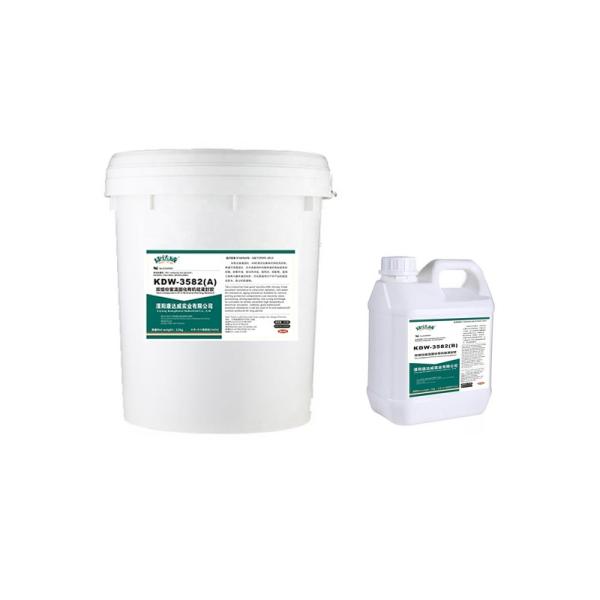

Excellent Thermal Conductivity Two Component Silicone Sealant For Solar Module Dustproof
Product Details

Performance

KDW-3582 (6:1) is used on all kinds of components of potting sealing and protection. It can be deeply cured, and with good liquidity, UV resistance, weather resistance, rain resistance and dirt resistance after mixed. And it can serve for a long time on outdoor products of fixation, waterproof, dustproof and anticreep.

Application

1. Automotive electronics module;
2. Power control module;
3. Solar panels junction box LED screen;
4. LED wall washer, LED module, etc.

Feature

1. Two components silicone potting compound, condensation type
2. Low viscosity, easy to process, strong maneuverability
3. Low shrinkage rate, no corrosion, no stress
4. Excellent high temperature electrical insulation, thermal conductivity and stability
5. Good waterproof and dampproof performance

Property
Unused
Used
A
B
Uncured
Color
White/Black/Gray
Transparent
White/Black/Gray
Viscosity (mpa·s)
15000~30000
50~150
10000~20000
Density (g/cm³)
1.25~1.35
0.97
1.20~1.30
Allowable operating time (25℃, min)
≥15
Complete cured time (25℃,h)
6~12
Cured
Tensile strength (Mpa)
≥1.0
Elongation (%)
≥100
Shore hardness (A)
30~40
Volume resistivity (Ω·cm)
≥1 X 1014
Dielectric strength (KV/mm)
≥15
Thermal stability (℃)
-60~+200
Linear shrinkage (%)
≤0.5
Thermal conductivity
≥0.4
Flame retardant rating
UL94V-0
Ps: Operation time is tested based on 100g adhesive.
All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.

Packing

Component A: 12KG, plastic drum;

Component B: 5KG, plastic drum;
Also can be customized.

Storage and transportation

1. Avoid light, heat, and keep sealing(could be transported and stored as non-dangerous goods )
2. Both shelf life are 1 year at 25℃.

Operation process

1. Weighing component A and B according to the ratio of 6:1, stirring evenly after mixed, then inject it to components and module which needed to be potting protected. It would be better to injected along one side of the wall, which can reduce the generation of air bubbles.
2. Placing the sealed component, and it would discharge bubbles by itself, if possible, vacuumizing and defoaming the mixed rubber before potting sealing. Directly cured at room temperature, usually the rubber will have elasticity within 1-6 hours.
