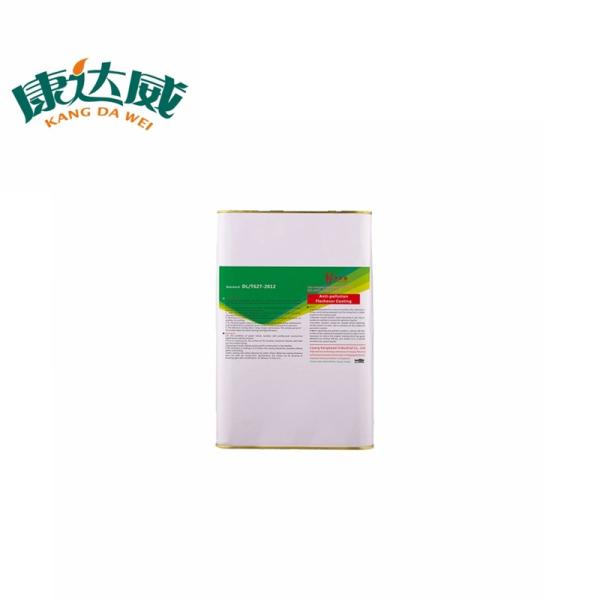

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant
Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant
Specifications
Brand Name :
Lianti
Certification :
ISO9001:2000
Place of Origin :
Jiangsu, China
MOQ :
1 Barrel
Packaging Details :
5 KG/iron drum; 10 KG/iron drum Also can be customized
CAS No. :
63148-60-7
Other Names :
PRTV
EINECS No. :
Unspecified
Classification :
Other Adhesives
Main Raw Material :
silicone
Usage :
High voltage line insulator, High voltage line insulators
Appearance :
Translucent Fluid
Certificate :
ISO9001:2000
Quality :
Guarantee
Application :
High voltage line insulators
Color :
Red/White/Gray/Blue/Translucent
Shelf life :
1 year
viscosity :
Low viscosity
Application Method :
Spray
State :
Liquid Coating
Description

Power Line Insulators Silicone RTV Heat Resistant Silicone Adhesive Flash Spark Pollution Coating has excellent electrical insulation performance

About us

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant

Production Features

Anti-pollution flashover coatings is a new type silicone coatings. It can be long-term stored in sealed container and cured by absorbing moisture in the air. This product is neutral, has good adhesion performance to insulator, excellent electrical insulation performance, resistance to damp, resistance to corona. Besides, the cured coating has excellent migration performance of hydrophobicity, resistance to UV, rain and hail, excellent outdoor aging resistance performance and long service life. It is mainly used for high voltage line insulators surface of external insulation.

1.Low viscosity, easy to spray, strong operability

2.Good migration performance of hydrophobicity, resistance to water and damp

3.Excellent electrical insulating performance and aging resistance performance

Technical Data

Test item
Index
Uncured
Color
Red/White/Gray/Blue/Translucent
Viscosity(S)
80~120
Tack free time(25℃, min)
≤45
Cured
Mechanical performance
Tensile strength(Mpa)
≥3.0
Tensile elongation(%)
≥250
Shear strength(Mpa)
≥2.5
Tear strength(KN/mm)
≥9.0
Electrical performance
Dielectric constant(1MHZ)
≤4.0
Tangent of dielectric lose angle(1MHZ)
≤4.0×10-3
Volume resistivity(Ω· cm)
≥1×1014
Dielectric strength(KV/mm)
≥18
Fire resistance
FV-0
Ps: All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.
Operation

1.Use dry cloth to clean the surface of insulator before using, then it can be operated in good weather.

2.Spray on clean and dry surface when operating, the coating thickness should be over 0.25mm, holidays should be avoided.

3.The tack free time would be about 30 minutes, and the completely cured time would be 24 hours after operation.

Factory&exhibition

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant

Payment&packing

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant

Power Line RTV Silicone High Voltage Insulator Coating Heat Resistant
