Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Specifications
Brand Name :
MC silicone
Model Number :
MCPLA-L25A/B
Certification :
MSDS,SGS
Place of Origin :
CHINA
MOQ :
120kg
Price :
USD 5.98 KG
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
4000KG PER DAY
Delivery Time :
3-5 working days after payment
Packaging Details :
20kg;200KG/DRUM
Product Name :
Silicone Mold Rubber Platinum Cure
Advantages :
Clear, fluid, Stretchy
Color :
Translucent
Mix ratio :
A100 : B100
Viscosity :
6000~7000 cps
Working time :
30~40 mins
Curing time :
4~6 hours
Hardness :
25 shore A
Elongation :
550%
shrinkage :
0.1%
Shelf life :
12 months
Description

Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber

Item No. MCPLA-L25A/B
Appearance Fluid Clear liquid
Color Translucent
Viscosity ( cps,approx.) 7000~8000
Mix ratio (A:B) 1:1
Working time(at 25℃ ,minutes) 30-40
Curing time(at 25℃,hrs,approx.) 4~6
Hardness Shore A(after 24 h) 25
Tensile Strength(Mpa,after 24 h) 3.8
Elongation(%) 560
Tear Strength(N/mm) 17
Linear Shrinkage (%) 0.01

what is RTV-2 platinum cured liquid silicone rubber

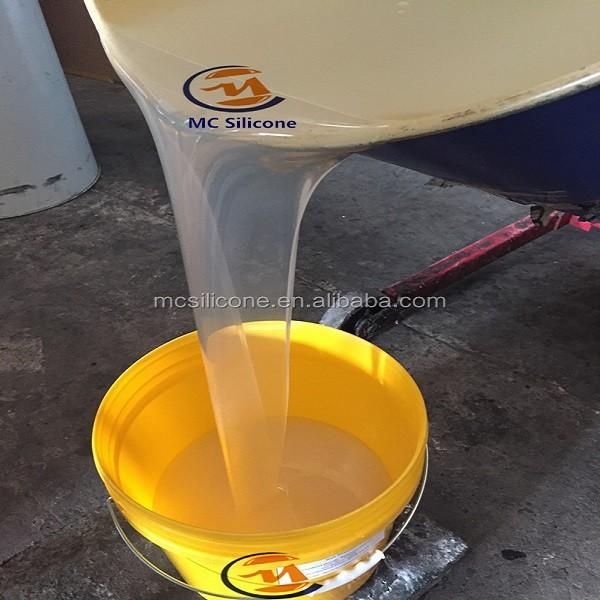

Two-component addition type silicone rubber Silicone Rubber is a two-part, platinum-catalyzed, liquid silicone system that cures (RTV) to flexible elastomer. The polymerization can be accelerated by heat. The silicone components are delivered as liquids, which once mixed and cured into a translucent, elastic and resistant material.

what are the Advantages of RTV2 platinum cure silicone rubber

#High Tear Strength: RTV2 platinum cure silicone rubber has a high tear strength, making it ideal for making complex molds that require multiple demolding cycles.

#Low Shrinkage: RTV2 platinum cure silicone rubber has low shrinkage, which ensures that the mold or casting maintains its shape and size over time.

#Easy Release: RTV2 platinum cure silicone rubber has excellent release properties, which means that the mold or casting can be easily removed from the mold without causing damage to the final product.

#Non-Toxic and Skin Safe: RTV2 platinum cure silicone rubber is non-toxic and skin safe, making it safe for use in applications that come into contact with skin or food.

what are the Applications of RTV2 platinum cure silicone rubber

1.RTV2 platinum cure silicone rubber is commonly used for making molds for industrial parts,various materials such as resins, plaster, and concrete, decorative objects.

2.Food and Confectionery: RTV2 platinum cure silicone rubber is used in the food and confectionery industry for creating molds for chocolates, candies, and other food items.

Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber

Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber

Processing and Instructions of Addition Cure Silicones

1. Mixing the two components
According the mixing ration 10:1 or 1:1 weighting A and B, the two components may be thoroughly mixed either by hand or using a low-speed electric to minimize the degassing of bubbles and to avoid any temperature increase. Note: It is also possible to use a special mixing and dispensing machine for the silicone components, further information is available upon request.
2. Moulding
The mixture should be degassed preferably at 30 to 50 mbar to eliminate any entrapped air. If a dispensing machine is used, the two components are degassed separately prior to mixing. The silicone mixture expands to 3-4 times of its initial volume and bubbles rise to the surface. The bubbles progressively disappear and the mixture returns to its initial volume after 5 to 10 minutes. Wait a few minutes to complete the degassing and then flash the vacuum. The silicone is ready for pouring, either by gravity or under low pressure.
Note: Flashing the vacuum once or twice accelerates the degassing. It is recommended to use a container with a high diameter/height ratio (3 to 4 times of the initial volume)
3. Polymerisation
The curing may be slowed down at lower temperature or accelerated by applying heat.

Note:

Contamination from sulfur (e.g., sulfur-based clay), amines, tin compounds, cured polyester resin, some paints and some silicone rubbers may inhibit surface cure of platinum-cured rubbers.

Apply a release agent, Although not usually necessary, a release agent will make demolding easier when casting into most surfaces.

Packaging of RTV-2 platinum cured liquid silicone rubber
20kg per drum, 200kg per drum

Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber
Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber

Storage and shelf life

MC Silicone MCPLA -L Series should be used within 12 months from the manufacturing date. Beyond this date, MC silicone no longer guarantees the products confirms with the sales Specification. In order to preserve best properties it is recommended to follow strictly the following guild lines:
Store the original packing tightly sealed and at a temperature below 30 degree Celsius.
Use the product as soon as the packaging has been opened.Mold Making 25 Shore A Platinum Cure Liquid Silicone Rubber

FAQ of RTV2 Platinum Cured Liquid Silicone Rubber

Q1: Why the curing time of platinum silicone varies in environment with different temperature ?
Platinum (addition) cured silicone rubber,Which with platinum catalyst and uses heat to transform from liquid to solid rubber. Therefore, platinum cured silicone rubber is sensitive to temperature, platinum systems are often cured quickly with heat,
although they can also be formulated to cure at low temperatures and room temperature.
Q2:why the bottom and sides of platinum silicone molds are stillgummy?
platinum silicone rubber requires accurate and careful mixing. The material must be mixed thoroughly for at least 3~5 minutes. make sure to scrape the container sides, bottom, and corners as you mix.
Q3: Why the platinum silicone rubber do not cure?
Platinum-cure silicone rubbers are critically sensitive to some materials and will not cure under any circumstances when exposed. like the materials below:
#Natural rubbers vulcanized with sulfur
#RTV elastomer is catalyzed with metal salts, e. G. Tin compounds
#Epoxy catalyzed with amines
#Certain organic solvents, such as Ketones, alcohols, etc.
