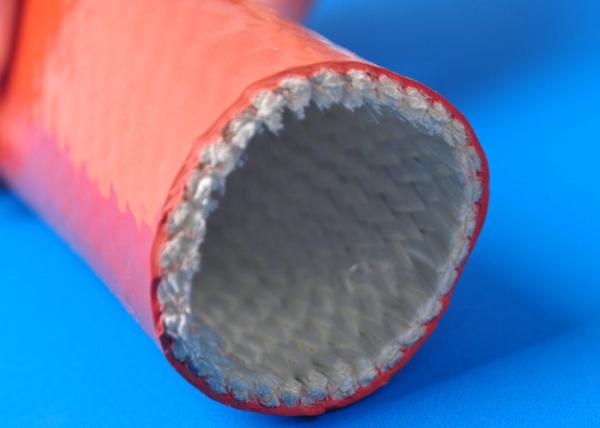

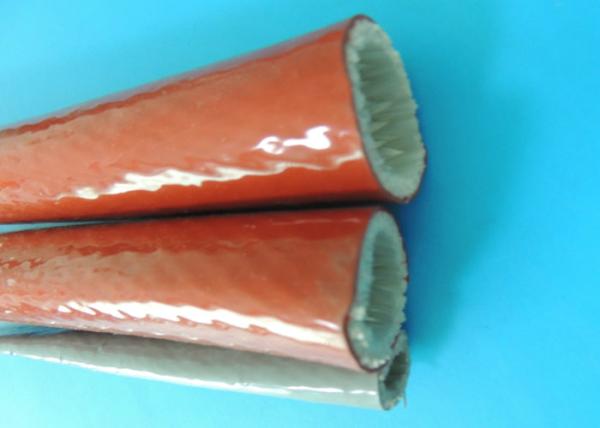

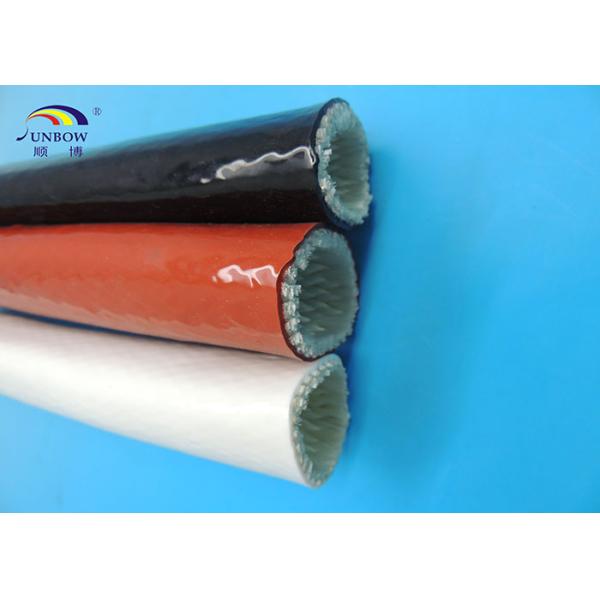

Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters
Specifications
Brand Name :
SUNBOW
Model Number :
SB-SGS-FH
Certification :
UL, RoHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
5000meters/size/color
Price :
USD1.626~USD19.594/meter
Payment Terms :
TT, LC, WU, Paypal
Supply Ability :
9,000,000meters/month
Delivery Time :
5-9 working days
Packaging Details :
Sunbow standard packing
Product name :
Fire resistant & heat resistance silicone fiberglass sleeving
Working temperature :
-65ºC~260ºC
Size :
6.0mm-100.0mm
Standard color :
Rust red color, other color can be customized.
High pressure resistance :
10~15KV
Fire resistance :
VW-1
Performance :
Heat insulation, flame-resistance, oil resistance, acid resistance, etc.
Application :
Steel plants, smelters, glass and other thermal places to protect the hose, hose assemblies and cables.
UL No. :
E333178
Certificate :
UL, RoHS, REACH
Description

Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters

Model Number: SB-SGS-FH

Working temperature: It can be provide reliable protection at 500ºC when used protective high-temperature casing, and can be impact of high temperature objects at less then 1650ºC in 30 seconds.

Structure

Fire-resistant & Heat-resistant fiberglass sleeving is the non-alkali fiberglass braided sleeving coated with silicone resin. This sleeving possesses great heat-insulation and flame-resistance.

Usage

Mainly used in steel plants, smelters, glass and other thermal places to protect the hose, hose assemblies and cables. It also helps maintain line temperature and reduce environmental overheating and overcooling.

Property

1. Impede heat radiation of flame Sheds molten spatter of metals and glass
2. Resistant to slag and resin build-up, Protects against abrasion, solvents and corrosive chemicals
3. Protect operators against scorching contacts of metal hoses and pipes
4. Impede heat lost and favor to saving energy

5. No harmful by-products of combustion
6. Easy to install, when selecting protective hose sleeving, measure the outside diameter of your hose and add approximately 1/4."

Heat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , SmeltersHeat Insulation Silicone Fireproof Sleeve Heat Resistance for Steel Plants , Smelters

SPECIFICATION

Inner Diameter / mm

Thickness / mm

Standard Package (m/roll)

Nominal

Tolerance

6.0

+0.5

1.2

20

10.0

+1.0

1.5

20

15.0

+1.0

2.2

20

20.0

+1.2

2.5

20

25.0

+1.5

2.8

20

30.0

+1.5

3.0

20

35.0

+2.0

3.2

20

40.0

+2.0

3.5

20

45.0

+2.0

3.8

20

50.0

+2.5

4.0

20

55.0

+2.5

4.2

15

60.0

+3.0

4.5

15

65.0

+3.0

4.5

15

70.0

+3.0

4.8

15

75.0

+3.0

4.8

15

80.0

+3.5

5.0

15

90.0

+3.5

5.6

15

100.0

+3.5

5.6

15

*Other size can be produced upon request.

Color: Standard color is rust red, other color available upon request.

Competitive Advantage:

1. 11 years manufacturing experience

2. Great production ability as high as 9,000,000 meters/month

3. Competitive price with quality products

4. Free sample for your approval

Sunbow main products,

Fiberglass sleeve

Heat shrink tube

PVC tube

Silicone tube

Corrugated tube

Expandable sleeve

PTFE tube/ FEP tube / PFA tube / PVDF tube
