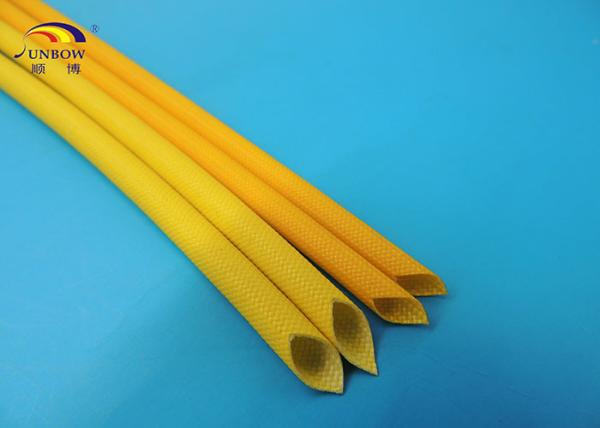

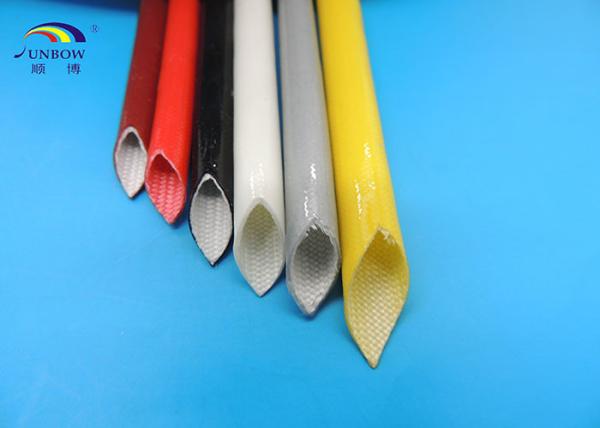

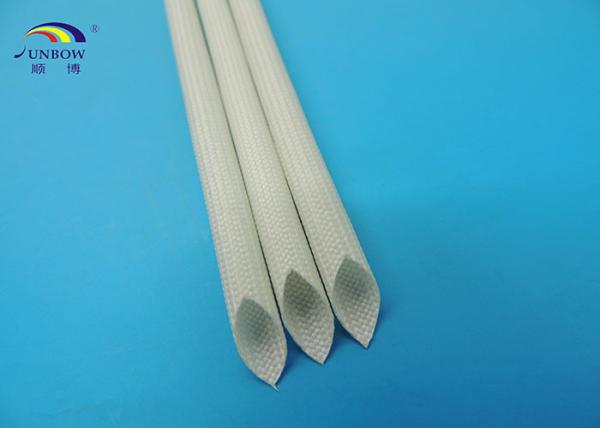

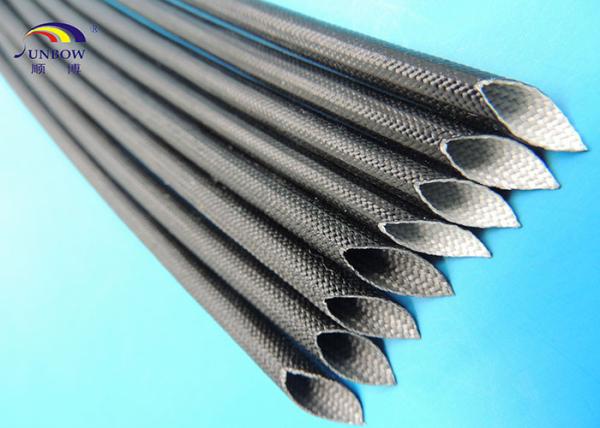

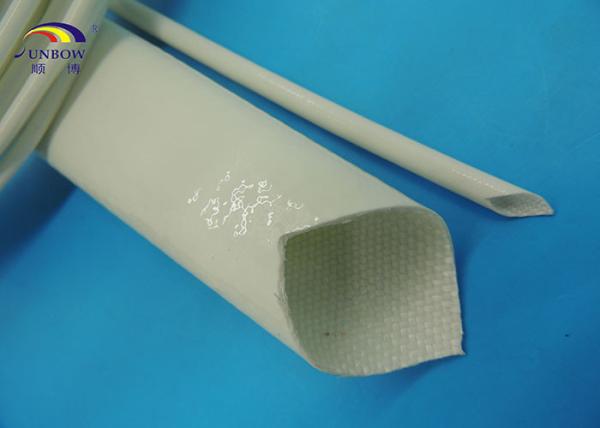

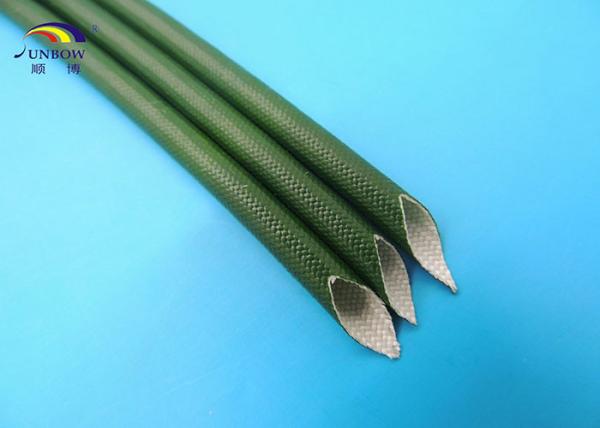

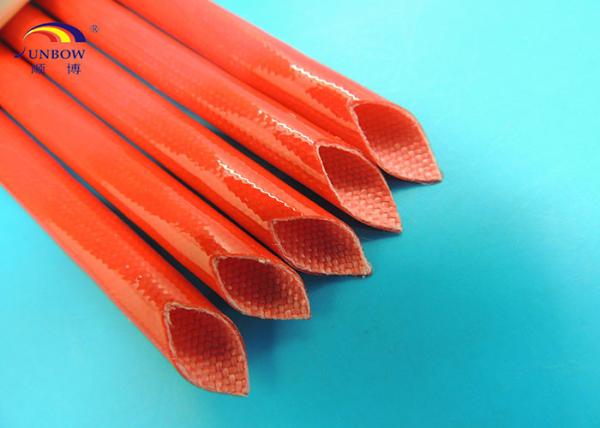

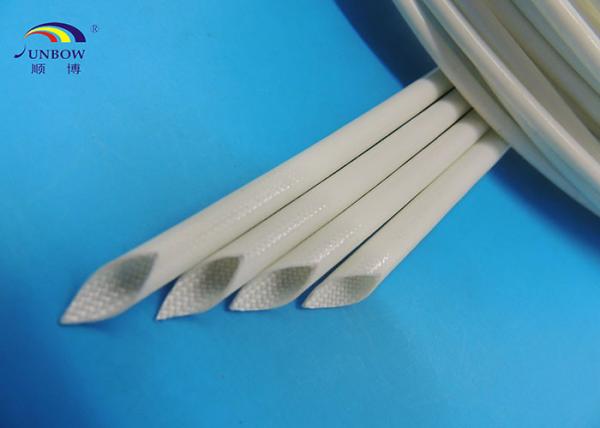

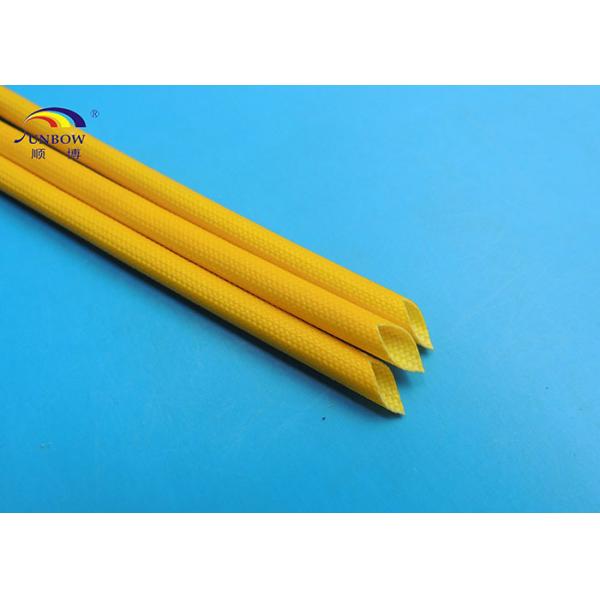

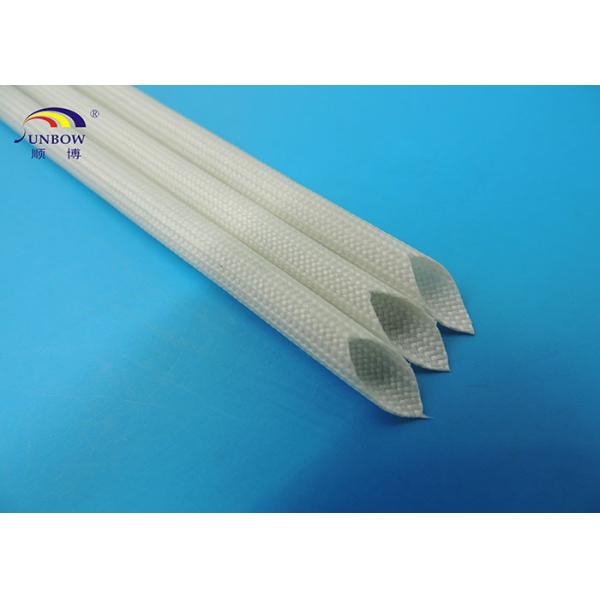

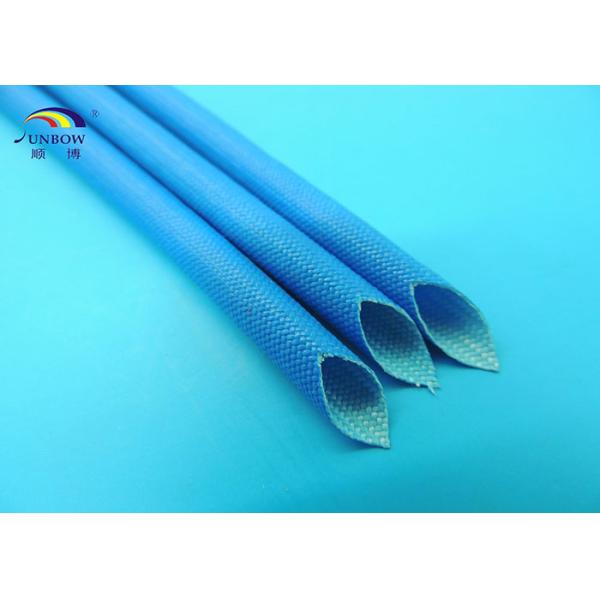

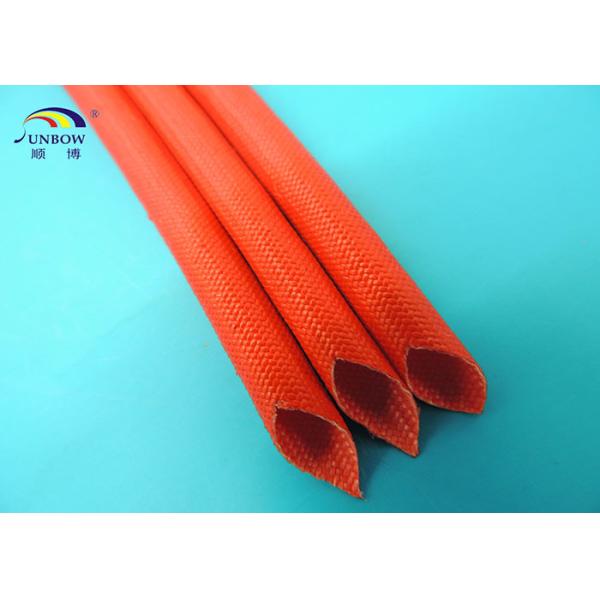

UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
Specifications
Brand Name :
SUNBOW
Model Number :
SB-SGS-12
Certification :
UL , RoHS , Reach
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000 Meters
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600,000 Meters/Month
Delivery Time :
3 ~7 Working Days
Packaging Details :
0.5mm ~ 4.0mm, 200 meter/roll; 4.5mm ~ 10.0mm, 100 meter/roll; 12.0mm ~ 18.0mm, 50 meter/roll; 20.0mm ~ 30.0mm, 25 meter/roll Carton Size 35*35*60cm
Material :
Non-alkali Fiberglass Yarn , Silicone Resin
Working Temperature :
200℃
Size :
0.5mm ~ 25.0mm
Color :
White (Other Color Can Be Customized)
Properties :
Flexible, Flame Retardant, High Temperature, Insulation
Certifications :
UL RoHS Reach
Certification No :
E333178
Application Range :
Insulators, Transformers, AC Motors...
Description

UL RoHS Reach Approval Flexible Flame Retardant Braided Fiberglass Sleeve Coated Silicone

PRODUCT DESCRIPTION

UL RoHS Reach Approval Flexible Flame Retardant Braided Fiberglass Sleeve Coated Silicone is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.

WORKING TEMPERATURE

200℃

MODEL NUMBER

SB-SGS-12

APPLICATION INSTRUCTION

UL RoHS Reach Approval Flexible Flame Retardant Braided Fiberglass Sleeve Coated Silicone with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

DIMENSION

Inside Diameter

Wall Thickness (mm)

Standard Package (m/roll)

Nominal(mm)

Tolerance (mm)

φ0.5

+0.2, -0.1

≥0.27

200

φ1.0

+0.2, -0.1

≥0.27

200

φ1.5

+0.2, -0.1

≥0.27

200

φ2.0

+0.2, -0.1

≥0.27

200

φ2.5

+0.3, -0.1

≥0.32

200

φ3.0

+0.3, -0.1

≥0.32

200

φ4.0

+0.3, -0.1

≥0.37

200

φ4.5

+0.3, -0.1

≥0.37

100

φ5.0

+0.3, -0.1

≥0.37

100

φ6.0

+0.3, -0.1

≥0.37

100

φ7.0

+0.3, -0.1

≥0.42

100

φ8.0

+0.3, -0.1

≥0.42

100

φ9.0

+0.3, -0.1

≥0.52

100

φ10.0

+0.3, -0.1

≥0.52

100

φ12.0

+1.0, -1.0

≥0.52

50

φ14.0

+1.0, -1.0

≥0.52

50

φ16.0

+1.0, -1.0

≥0.52

50

φ18.0

+1.0, -1.0

≥0.52

50

φ20.0

+1.0, -1.0

≥0.62

25

φ25.0

+1.0, -1.0

≥0.62

25

φ30.0

+1.0, -1.0

≥0.62

25

SPECIFICATION

Item

Performance

Note

Dielectric Breakdown

Voltage KV AC

Minimum Average

≥1.2

Before Aging

Thermal Endurance

No Indication of Crack

OK

6 Hrs* 245±5ºC

245±5ºC 6Hrs Aging

Fire Resistance

VW-1

OK

UL 1441

FAQ

Q1. You are a factory or trading company?

We are a factory and we can provide best price and high quality products for you.

Q2. Can you accept sample orders?

Yes, we can accept sample orders and we can also provide free samples for your test if necessary.

Q3. What is your MOQ?

Normally, 1000m per size.

Q4. What are your payment terms?

T/T 100% & West Union.

Q5. How can I get my order? How can I know you sent the goods?

We will send the goods by UPS, DHL, FedEx or sea shipment. After we send the goods , we will give you the tracking number or other relative files for your check.

Q6. How about your quality?

Try a small order, and then you can judge.

Q7. Have you passed any certificates?

Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, RoHS, Reach certifications. If necessary, we can send you relative files.

Q8. Are there any advantages to choose your products?

1) ISO 9001 : 2008 TS 16949 standard factory manufacturer

2) high-tech enterprise in China

3) with 12-year manufacturing experience

4) factory direct sales

5) best price high quality product

6) quick delivery time

7) quick response for feedback

8) few complaints from customers

9) more competitive price for VIP customers

10) convenient situation near to seaport

MORE PICTURES SHOW

UL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone RubberUL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone RubberUL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone RubberUL RoHS Flame Retardant Braided Fiberglass Sleeve Coated Silicone Rubber
