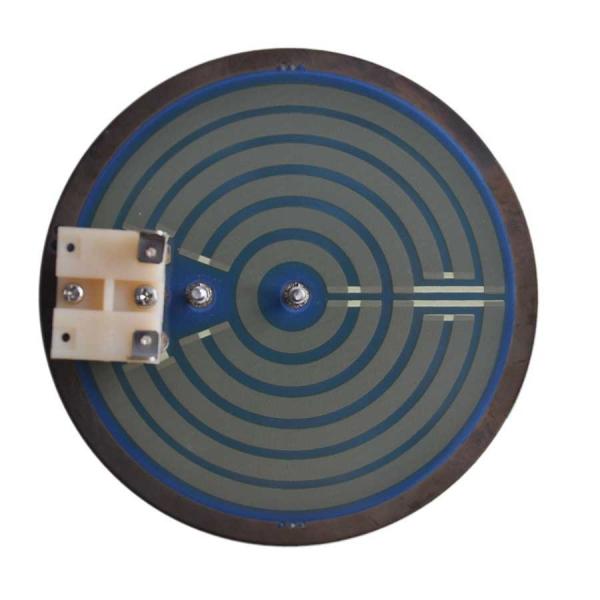

150 watts 12 v dc thick electric polyimide film heater

1. Power:220V/950W;

2. Dimension: 173mm*108mm.

3. New insulating material applied, better flatness after sintering;

4. Simple layout of resistance line, better uniform thermal distribution.

The heating element can be designed to meet customer’s special requirement on size ,voltage,power and function .

Product Description

◊ Heat resistant temp.
continuous use temp.	200°C(customized)
max. temp.	250°C(customized)
◊ Power characteristics
insulation resistance	1000MΩ or over DC500V(customized)
withstand voltage	1500V/1min(customized)
◊ Size
max.	customized
min.	customized
thickness	customized

Categories

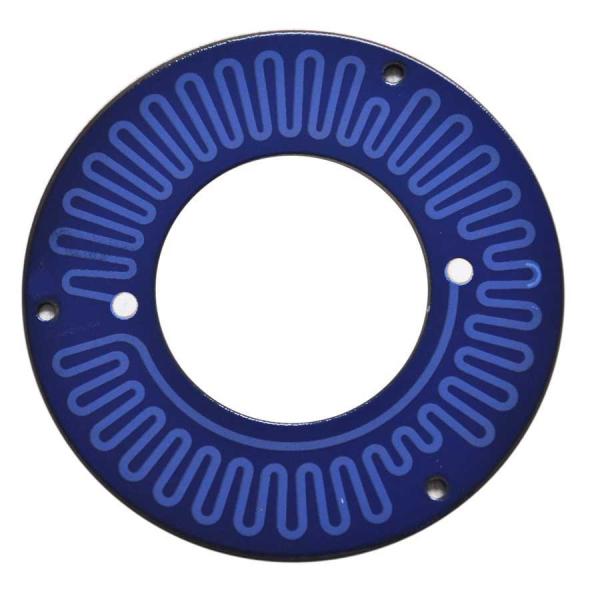

1.Thick film heating plate
Material: stainless steel 430
Working temperature: 600℃
Features: good thermal uniformity and stable performance; suitable for laser welding and sealing installation; shape and size can be customized;
Applications: soymilk machine, bread machine, electric kettle, etc.

2. Thick film heating tube
Material: stainless steel 430
Working temperature: 600℃
Features: high thermal conductivity; low heat loss; even heating; heated when water is discharged; shape and size can be customized;
Applications: instant hot water taps, water heating boilers, etc.

3. Glass-ceramic heating plate
Material: Glass-ceramic
Working temperature: 500℃
Features: rapid and even heating; Solid and safe structure with long service life; shape and size can be customized;
Applications: electric grills, barbecue plates, etc.

4. Alumina ceramic heater
Material: Alumina-ceramic
Working temperature: 200℃
Features: good thermal uniformity; high power density; rapid heating without power attenuation; good insulation; shape and size can be customized;
Application: hair dryer, industrial drying equipment, heating of water, oil and acid-base liquid, infrared physiotherapy instrument, etc.

5. Aluminum nitride ceramic heater
材料Material: Aluminum nitride ceramic
Working temperature: 500℃
Features: waterproof;oil, acid corrosion resistance; good thermal efficiency and rapid heating; good insulation; shape and size can be customized;
