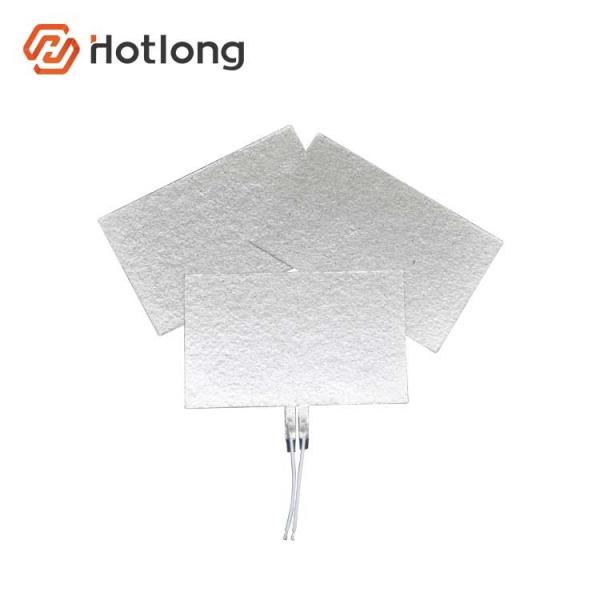

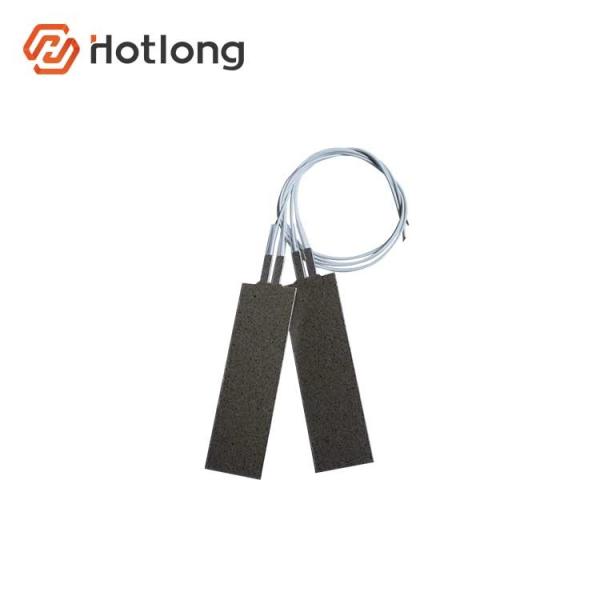

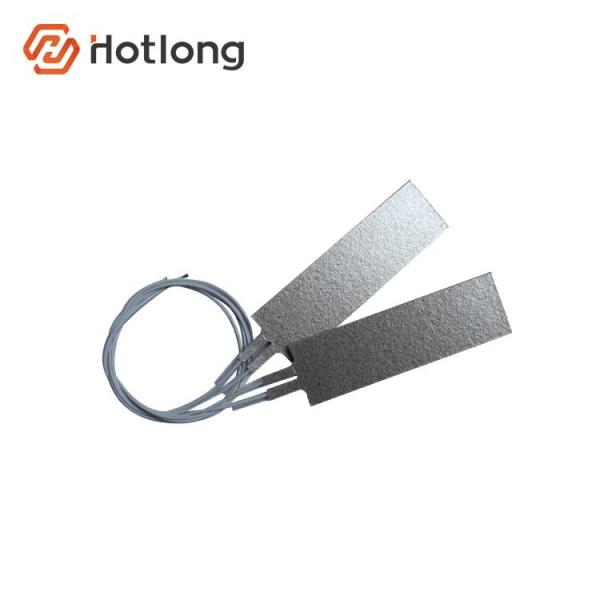

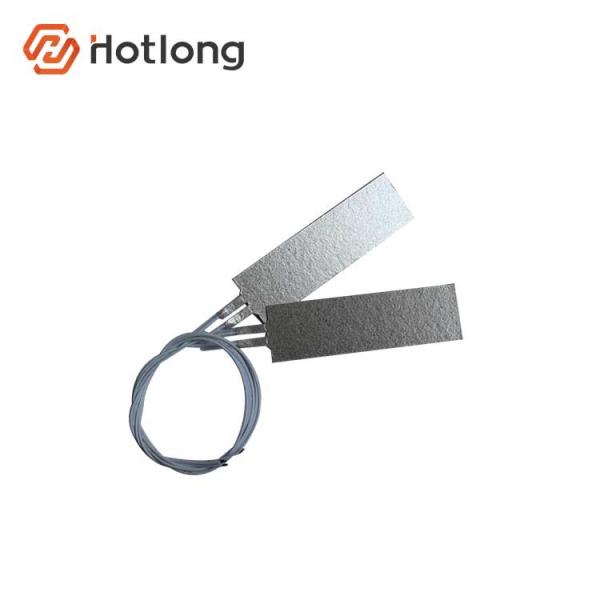

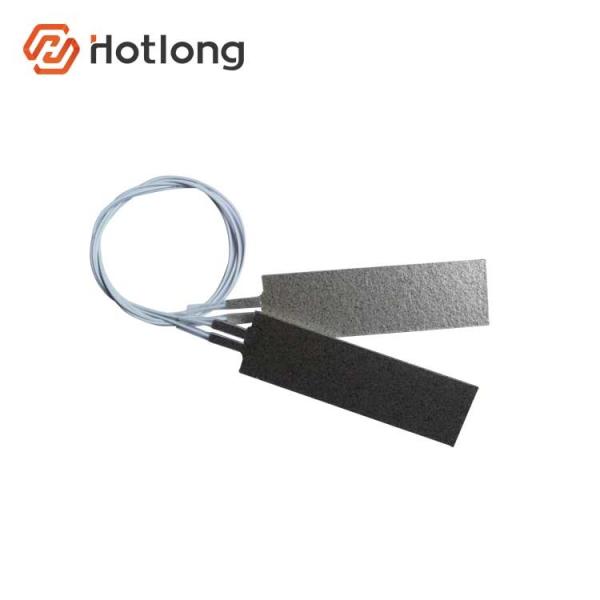

Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate
Specifications
Place of Origin :
JiangSu
Brand Name :
Hotlong
Certification :
ISO9001,UL,CE
Supply Ability :
15000 Piece/Pieces per Month
Packaging Details :
carton box
MOQ :
50-100
Price :
consultative
Delivery Time :
7-10
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
After Warranty Service :
Online support
Local Service Location :
Germany, Japan, South Korea
Showroom Location :
None
Condition :
New
Type :
mica flat heater
Power Source :
Electric
Dimension(L*W*H) :
customized
Weight :
customized
Warranty :
1 YEAR
After-sales Service Provided :
Free spare parts, Engineers available to service machinery overseas
Key Selling Points :
Sustainable
Name :
larger power foil mica flat heater plates
Material :
mica plate
Usage :
mica heater plates
Thickness :
1mm
MOQ :
1 pcs
Application :
Heater Parts
Size :
Reqiured
Voltage :
customized
Port :
Shanghai
Description

Best Price Usb Mica Sheet Heating Element

Max element temp. 800C
Dielectric strength at 20C as per ASTM KV/mm >25
Thwemal conductivity at 100C W/(m.k) 0.30
Moisture absorption as per ASTM D-570-63. (24h immersion at 23C) <1%
Constant of dielectricity at 25C, 50Hz 4-5.5
Max.element width 900mm
Power density 10W/cm²(depending on application)
Resistance tolerance As standard, ±10% of nominal. Tolerance down to ±2% available
Rated voltage Up to 1000V AC/DC single or 3 phase
Other Thickness min. 0.1mm

Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate

Product Description

Fields of application
1. Packing, strapping and sealing equipment
2. food service applicances
3. DNA analyse
4. semiconductor industry
5. radiators, heating panels

Benefits & Fileds of Application
1. high power destiny
2. possibility to be used assembled in open air
3. high working temperatures
4. fast warm up

Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating PlateSingle Phase 1000V High Conductivity Thickness 0.1mm Mica Heating PlateSingle Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate

Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate


Single Phase 1000V High Conductivity Thickness 0.1mm Mica Heating Plate

Q: Are you manufacturer or trade company?

A:We are manufacturer for more than 20 years.

Q: Do you provide OEM or ODM?

A:Yes, OEM and ODM are both OK.

Q: How does your factory control the product quality?

A:We always pay much attention to the quality control from the procurement of raw material to shipment.

Q: How do you guarantee the buyers’ after-sell rights and interests?

A:All our heating goods enjoy 300USD product liability.

Q: How can we get the sample?

A:We provide customized sample with a little sample fee and we can return when you place order, so please feel free to contact us!
