Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Flexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
Specifications
Place of Origin :
JiangSu
Brand Name :
Hotlong
Certification :
ISO9001,UL,CE
MOQ :
50-100
Price :
consultative
Delivery Time :
7-10
Material :
silicone
Weight :
Final Dimension
Condition :
New
Dimension(l*w*h) :
Custom Size
Power source :
Electric
Voltage :
12-480v
Power(w) :
1w-10000w
Description

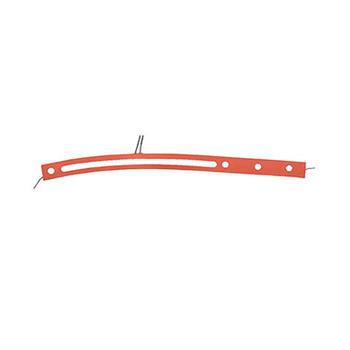

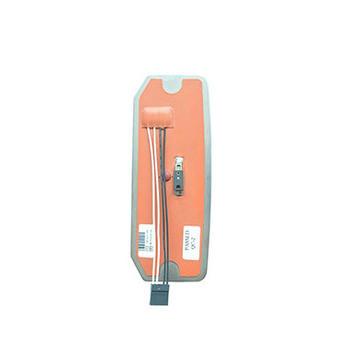

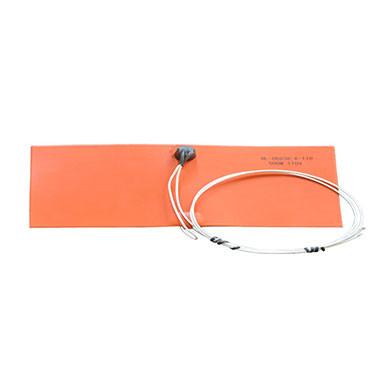

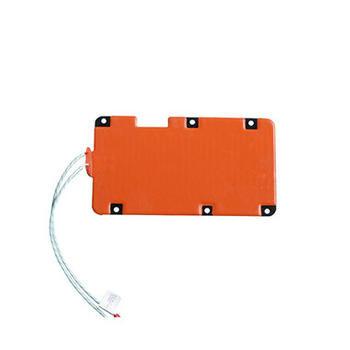

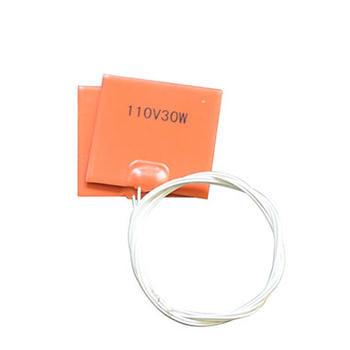

Custom Silicone Rubber Heaters

Features and Benefits
Custom shapes to fit your application
Peel and stick adhesive system for easy installation
Optional insulating sponge for better efficiency
Integrated temperature sensors
Choose from higher temperature Silicone Rubber.

Benefits

Silicone Rubber Heaters can offer a high watt density while maintaining flexibility. Heat can be delivered where it is most needed.
These Silicone Heaters improve heat transfer; speed warm ups, and reduces wattage requirements. Because very little material separates the element from the part, heat transfer is fast and efficient.
Fiberglass-reinforced silicone rubber gives the heater dimensional strength without sacrificing flexibility. The heater construction creates a very thin heater allowing it to fit applications where space is limited. Silicone Rubber Heaters provide steady performance and are able to provide more wattage than polyimide electric heaters.

Specifications

Shape
Round, Square, Rectangular etc
Minimum Size
10*10mm
Voltage
5V-600V
Maximum Size
1000*1000 mm
Wattage Density
0.1-1.5w/cm2
Max. Operating Temp
200 Deg C
Thickness
Standard 1.5mm or customized
Heating Elements
Wire wound or Etched foil
Thermostat type
Dial
Digital
Explosion proof
Thermocouple option

K or J
PT100
Thermistor etc
Thermal Switch
50 Deg C
80 Deg C
100 Deg C etc
Plug connection
USA
British
European etc
Leads
Silicone insulation leads
Fiberglass lead wires
PTFE Lead wires etc
Installation
3M Adhesive
Spring Hook
Magice Tapes etc

ApplicationFlexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater

Flexibility 200 Degree 1000*1000mm 600V Custom Silicone HeaterFlexibility 200 Degree 1000*1000mm 600V Custom Silicone HeaterFlexibility 200 Degree 1000*1000mm 600V Custom Silicone Heater
