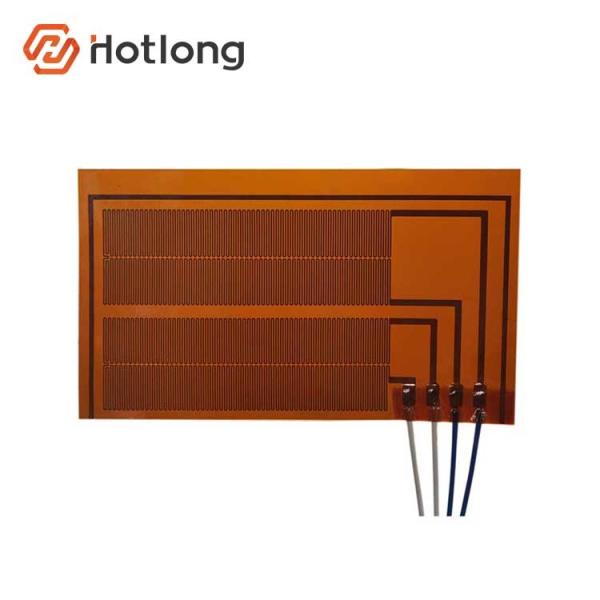

12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
12V 30 Watt 280x150mm Translucent Flexible PI Heater
Specifications
Supply Ability :
15000 Piece/Pieces per Month
Packaging Details :
carton box
MOQ :
50-100
Price :
consultative
Place of Origin :
JiangSu
Brand Name :
Hotlong
Certification :
ISO9001,UL,CE
Delivery Time :
7-10
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
12 v 30 watt 280 x 150 mm pi flexible heater
Material :
silicone rubber
Usage :
silicone rubber heater
Thickness :
Insulation material
MOQ :
1 pcs
Color :
Orange
Application :
Heater Parts
Size :
Reqiured
Port :
Shanghai
Description

12 v 30 watt 280 x 150 mm pi flexible heater

Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.

Normal Thickness Polyimide film(0.08mm)+Etching chips(0.05)+Polyimide film(0.08mm)
Working voltage As your required
Working temperature -60℃-250℃
Watt density <3w/cm2
Mounting PSA or mechanical
Max size 500(W)×2000mm(L)
Bending radius >0.8mm
Exit insulated leads

12V 30 Watt 280x150mm Translucent Flexible PI Heater

Product Description

Introduction

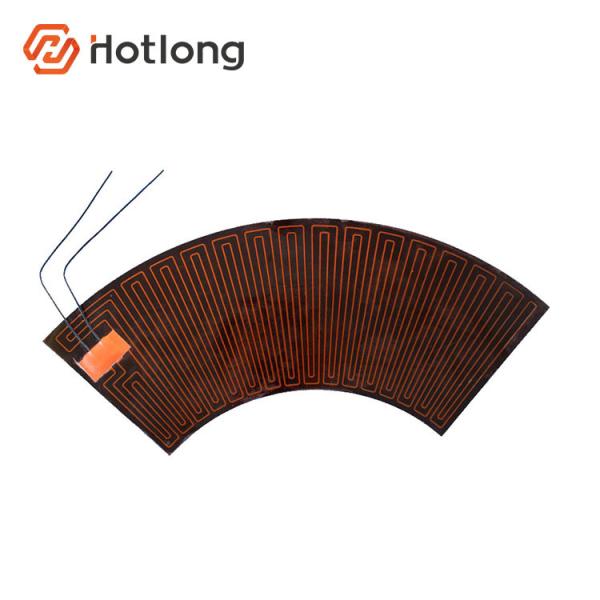

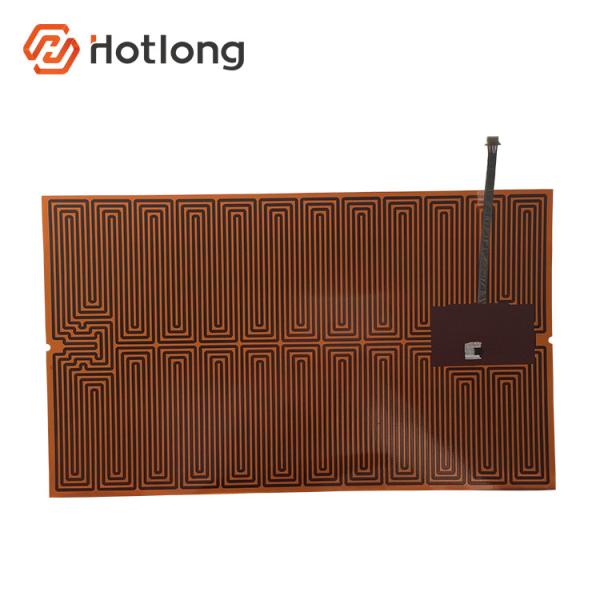

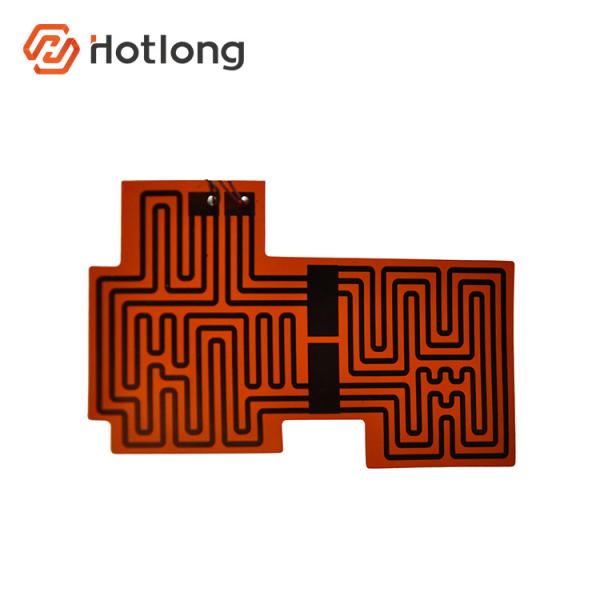

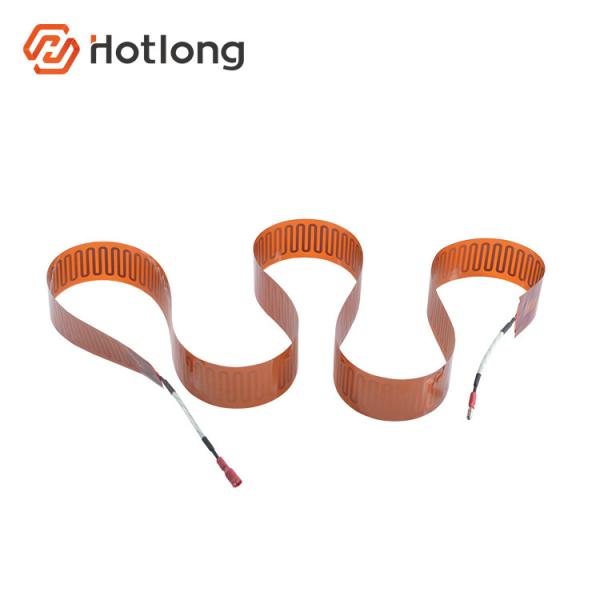

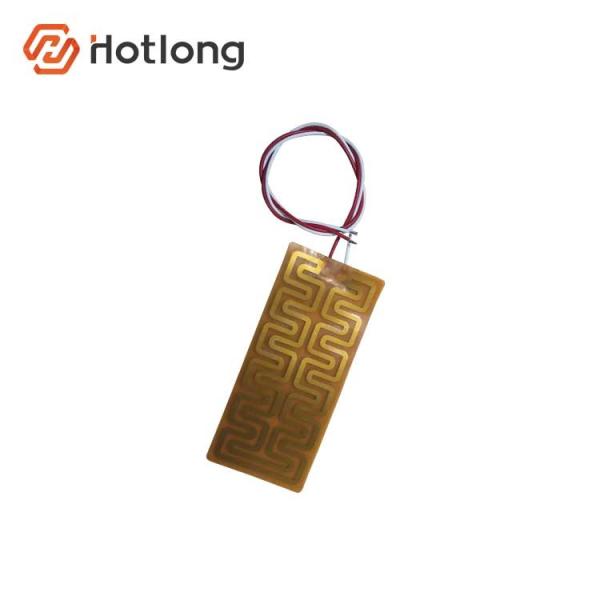

Flexible polyimide film heaters in need of various shapes, sizes and power are available. this type of heater is very thin (the thickness is 0.25mm top) and able to bent arbitrarily, which allows close thermal contact with the heated subject to reach maximum heating efficiency.
Polyimide film heater is a translucent or transparent metallic electric heating film, resistive circuit made of special alloy is covered PI films with excellent temperature tolerance and insulation. Compared with filiform electrothermal structure, PI heaters provides more uniform thermal field, shorter heating period and shifter response, lower power load but longer service life.
PSA or Epoxy resin are optional for installation.

◊ Heat resistant temp.
continuous use temp. 200°C(customized)
max. temp. 250°C(customized)
◊ Power characteristics
insulation resistance 1000MΩ or over DC500V(customized)
withstand voltage 1500V/1min(customized)
◊ Size
max. customized
min. customized
thickness customized

12V 30 Watt 280x150mm Translucent Flexible PI Heater12V 30 Watt 280x150mm Translucent Flexible PI Heater12V 30 Watt 280x150mm Translucent Flexible PI Heater12V 30 Watt 280x150mm Translucent Flexible PI Heater12V 30 Watt 280x150mm Translucent Flexible PI Heater


12V 30 Watt 280x150mm Translucent Flexible PI Heater

12V 30 Watt 280x150mm Translucent Flexible PI Heater

12V 30 Watt 280x150mm Translucent Flexible PI Heater


12V 30 Watt 280x150mm Translucent Flexible PI Heater


1. How much for the silicone heater?
The price depends on the size.

2. Why the price is so low?
You are ordering directly from the factory.

3.What type of payment do you have available?
We accept T/T,as sample order,the Paypal,Western union,Money gram and Aliexpress is available.

4.Could I get some samples?
Yes,of course.

5.What is the lead time?
Sample is only for 1-3 days,if the mass prodction,we can discuss on your requirement.

6.Which certification does your factory have?
We have CE,ISO,ROHS,16949 certification.
