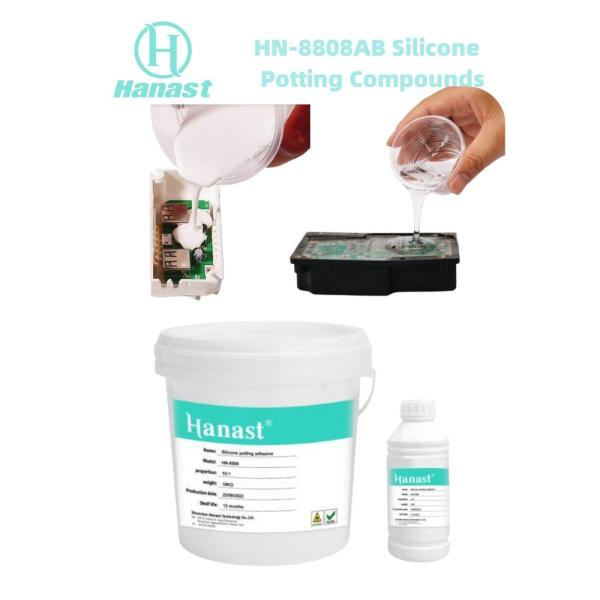

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor
Specifications
Brand Name :
Hanast
Model Number :
HN-8808AB
Certification :
MSDS
Place of Origin :
CHINA
MOQ :
1KG
Price :
5.65
Payment Terms :
T/T
Supply Ability :
1000000KG
Delivery Time :
3-7 work days
Packaging Details :
Plastic/Iron Drums
Product name :
Silicone potting glue
Color :
Black/White/Transparent color, can customized
Application :
PCB/Battery/LED
Package :
5kgs/25kgs/200kgs/bag
Material :
Silicone&Agent
Keywords :
Waterproof Sealant
Viscosity :
Excellent Viscosity
Certificate :
MSDS RoHS UL
Feature :
Low and high Temperature Resistance
Thermal conductivity :
Customize
Description

RTV Two Component Silicone Potting Compound Thermal Conductive Waterproof Low Viscosity for Protecting PCB Sensor and LED Encapsulation

HN-8808 Household Appliance Sealing Silicone

Product Specification

№. Items Technique Request
1 Exterior Transparent / White / Grey Liquid
2 Viscosity mPa.S (before curing) A: 2000, B: 50
3 Specific gravity (23℃) 0.98
4 In commission time (h, 25℃) 1–2h
5 Entirely sulfuration time (min, 25℃) 8–12h
6 Hardness (JIS A) 25A
7 Volume resistivity (Ω·cm) ≥1×10¹⁴
8 Strength of breakdown voltage (kV/mm) 18–25
9 Dielectric constant (1MHz) 2.5–3.0
10 Dielectric loss (1MHz) ≤4×10⁻³
11 Thermal conductivity (W/m·K) 0.1–0.20

Product Overview

HN-8808 is a two-component room-temperature curing silicone designed for household appliances. It offers excellent waterproofing, shockproofing, and insulation properties, making it widely used for sealing and insulation in home appliances.

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor

Key Highlights

Eco-Friendly & Safe: Non-toxic and odorless, meeting household appliance safety standards.

Strong Adhesion: Bonds well with metals and plastics, enhancing sealing effectiveness.

Excellent Temperature Resistance: -57°C to 250°C, suitable for various household appliance environments.

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor

Technical Parameters

Viscosity (Part A: 2000 mPa.S, Part B: 50 mPa.S)

Hardness (JIS A): 25A

Volume Resistivity: ≥1×10¹⁴ Ω·cm

Breakdown Voltage Strength: 18-25 kV/mm

Applications

Waterproof Sealing: Used in washing machines, dishwashers, and other appliances.

Insulation Protection: Ideal for rice cookers, microwaves, and other electrical appliances.

Shockproof Coating: Used in vacuum cleaners, air purifiers, and other devices.

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor

RTV Two Component Electrical Silicone Potting Material Compound Thermal Conductive For PCB Sensor

Usage Instructions

Mix components A and B in a ratio of 10:1 before use.

Cures at room temperature, easy to operate, and suitable for mass production.

Packaging

Part A: 5/10/20/200KG barrel

Part B: 1KG plastic barrel
