2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1
2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1
Specifications
Brand Name :
Hanast
Model Number :
HN-8808
Certification :
ROHS，SGS
Place of Origin :
Guangdong, China
MOQ :
1 kilogram
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
25KG/ Iron Drum
Type :
two parts potting material
temperature range :
- 57°C to 250°C
Feature :
Non-toxic, odorless, non-corrosive, non-swelling
Application :
sealing, electrical, potting, insulation electronic appliances
Appearance :
Transparent, White, Black Flowing Liquid
Viscosity (before curing) (mPa.S） :
A：2000 B:50
Shaw Hardness (JIS A) :
25 shore A
Mix ratio :
10：1
Dielectric Constant (1MHZ) :
2.5 - 3.0
Thermal Conductivity (w / m.k) :
0.1 - 0.20
Description

Factory Supply 2 Part RTV Silicone Led Module Potting Insulation Waterproof Silicone Potting Material 10:1 Electronic clear Potting Compound

HN-8808AB is a two-component condensation type room temperature curing silicone rubber, also known as RTV 2 Liquid Silicone Rubber, composed of two parts of A and B. After the A and B components are mixed at 10:1 (mixed ratio), they solidify into a high-performance elastomer through a condensation reaction.

2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1

Product Features

1) Good adhesion, no corrosion

2) solid Small chemical shrinkage,

3) no heat release, good insulation,

4) wide temperature range (-50℃-200℃),

5) waterproof and moisture-proof

2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1

Main Application

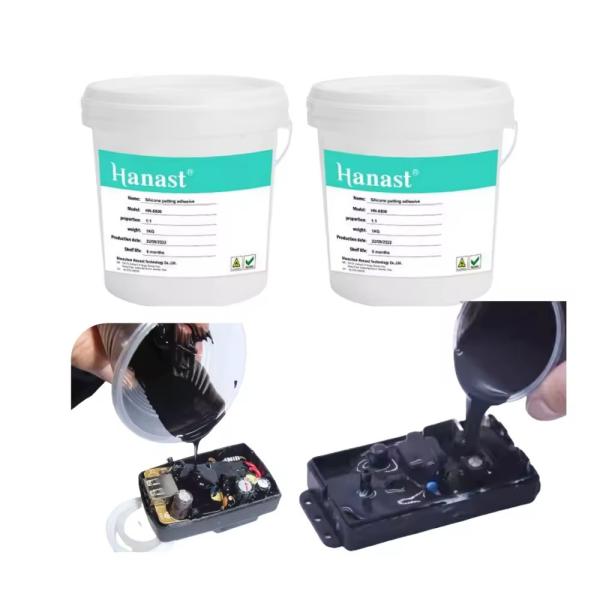

It is mainly used in circuit boards, LED power supplies, automotive electronic modules, power module.

Technical Sheet

Before Mixing
A B
Exterior black liquid Transparent liquid
Base chemical composition Polysiloxane Polysiloxane
Viscosity (cP) (GB/2794-1995) 2000-2800 20-30
Density (g/cm³) (GB/2794-1995) 1.42±0.02 -
A+B after mixing
Exterior black liquid
Base chemical composition Polysiloxane (Silicone)
Viscosity (cP) (GB/2794-1995) 2000-2600mpa's
Density (g/cm³) (GB/2794-1995) 1.40±0.02
Operating time (25℃, min) 40-60
Curing time (25℃, h) 4-6
Hardness (shore A) (GB/T531-1999) 30-40
Volume resistivity Ω·cm (GB/T 31838.2-2019) ≥5.0×10 14
Thermal conductivity (W/M▪K) (GB/T 38712-2020) 0.5±0.1
Dielectric strength (kv/mm) ≥14
Dielectric constant ≤3.5
Elongation at break (%) ≤100%

2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1

2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1

Packaging Method

22kg/set (component A 20kg + component B 2kg)

11kg/set (component A 10kg + component B 1kg)

2 Part Clear RTV Silicone Potting Compound Material Insulation Waterproof 10:1

Attention

1. The rubber material should be sealed and stored. Use the mixed glue at one time to avoid waste.

2. 10:1 colloid cannot be heated to accelerate solidification after mixing.

3. This product is a non-dangerous product, but please keep it out of your mouth and eyes.

4. This product is non-toxic and non-dangerous. Avoid rain and exposure. Store in a cool and dry place. The shelf life is6months (best use period3 within months)
