Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances
Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances
Specifications
Brand Name :
Hanast
Model Number :
HN-8808
Certification :
ROHS，SGS
Place of Origin :
Guangdong, China
MOQ :
1 kilogram
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
25KG/ Iron Drum
Material :
Silicone
Appearance :
Liquid
Application :
Electronic Appliances
Mix ratio :
10:1
Type :
2 Parts
Feature :
Good adhesion, no corrosion
Color :
Transparent,white,black
wide temperature range :
-50℃-200℃
Waterproof :
Yes
Usage :
circuit boards, LED power supplies, waterproof power supplies
Description

10:1 Potting Compound Insulation Moisture-proof AB Glue Potting Adhesive Black Two-component Silicone Adjustable Customization For Electronic Appliances

Product Description

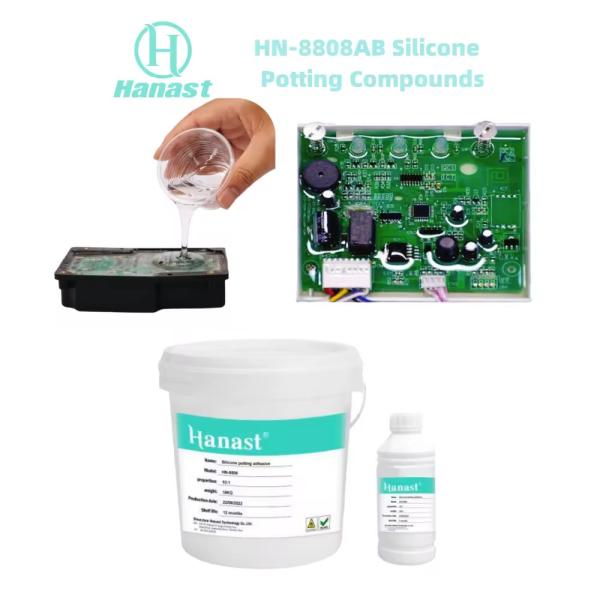

Potting glue HN- 8808AB, is a two-component condensation type room temperature curing silicone rubber, also known as RTV 2 Liquid Silicone Rubber, composed of two parts of A and B. After the A and B components are mixed at 10:1 (mixed ratio), they solidify into a high-performance elastomer through a condensation reaction.

Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances

Product Features

1) Good adhesion, no corrosion

2) solid Small chemical shrinkage,

3) no heat release, good insulation,

4) wide temperature range (-50℃-200℃),

5) waterproof and moisture-proof

Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances

Main Application

Electronic components, solar energy, backlight, electrical module

Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances

Technical Sheet

Before Mixing
A B
Exterior black liquid Transparent liquid
Base chemical composition Polysiloxane Polysiloxane
Viscosity (cP) (GB/2794-1995) 2000-2800 20-30
Density (g/cm³) (GB/2794-1995) 1.42±0.02 -
A+B after mixing
Exterior black liquid
Base chemical composition Polysiloxane (Silicone)
Viscosity (cP) (GB/2794-1995) 2000-2600mpa's
Density (g/cm³) (GB/2794-1995) 1.40±0.02
Operating time (25℃, min) 40-60
Curing time (25℃, h) 4-6
Hardness (shore A) (GB/T531-1999) 30-40
Volume resistivity Ω·cm (GB/T 31838.2-2019) ≥5.0×10 14
Thermal conductivity (W/M▪K) (GB/T 38712-2020) 0.5±0.1
Dielectric strength (kv/mm) ≥14
Dielectric constant ≤3.5
Elongation at break (%) ≤100%

Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances

Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances

Packaging Method

22kg/set (component A 20kg + component B 2kg)

11kg/set (component A 10kg + component B 1kg)

Moisture Proof AB Silicone Potting Compound Rubber Raw Material For Electronic Appliances

Attention

1. The rubber material should be sealed and stored. Use the mixed glue at one time to avoid waste.

2. 10:1 colloid cannot be heated to accelerate solidification after mixing.

3. This product is a non-dangerous product, but please keep it out of your mouth and eyes.

4. This product is non-toxic and non-dangerous. Avoid rain and exposure. Store in a cool and dry place. The shelf life is6months (best use period3 within months)
