55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
Specifications
Brand Name :
Hanast
Model Number :
HN-8806 A/B (1:1)
Certification :
ROHS，SGS
Place of Origin :
Guangdong, China
MOQ :
1 Kilogram
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
25KG/ Iron Drum
Color :
Grey,white, Black (can Be Customized)
Hardness: :
50±5 Shore A
Mix ratio :
1:1
Waterproof :
Yes
Material :
Silicone
Type :
2 parts(A and B)
Sample :
1-2kgs
Application :
electronic components
Feature :
Flame retardant, high and low temperature resistance
Thermal conductivity :
≥0.76w/m·k(can be customized)
Description

55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting



PRODUCT DESCRIPTION of Heat Conductive Potting Glue

HN-8806, two-component addition type silicone potting rubber which can be cured into high-performance elastomer by room temperature or heating.

This potting silicone rubber has excellent electrical insulation, high moisture resistance, and a wide temperature range of -50°C to 250°C.

55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting

55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting

Technical Parameters of Heat Conductive Potting Glue:

Test Items Test Standard Units Product test results
Part A Part B

Before

Curing

 1 Appearance By eyes --- Grey, fluid White, fluid
2 Viscosity GB/T10247- 2008 25ºC,mPa·S 4500~5000 4500~5000
3 Density GB/T 13354-92 25ºC,g/cm3 1.50±0.05 1.50±0.05
4 Mixing Ratio (A : B) 1:1 Weight ratio 100 100
Volume ratio 100 100
5 Operating time Measured hr 0.3-0.4
6 Curing condition Measured hr

4~12

(25ºC, initial cure)

0.20

(80ºC)

After

Curing

 7 Appearance By eyes --- Grey Elastomer
8 Hardness GB/T 531.1-2008 Shore A 50±5
9 Thermal conductivity GB/T10297-1998 w/m·k ≥0.76
10 Expansivity GB/T20673-2006 µm/(m,ºC) 210
11 Moisture Absorption GB/T 8810-2005 24h,25ºC,% 0.01~0.02
12 Volume resistivity GB/T 1692-92 (DC500V),Ω· cm 1.0×1016
13 Dielectric intensity GB/T 1693-2007 Kv/mm(25ºC) 18~25
14 Temperature Resistance Measured ºC -50~+250

* UV-94 Fire retardant: After two times 10s burn tests on a 3mm-thick sample, the flame was extinguished within 30s, and no burnt fell. [1]

* Noted: The data after curing are all measured after the silicone is completely cured.

Product Feature of Heat Conductive Potting Glue

Good Thermal conductivity；Flame retardant, high and low -temperature resistance
No corrosion of potting components after curing; Flexible

55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting

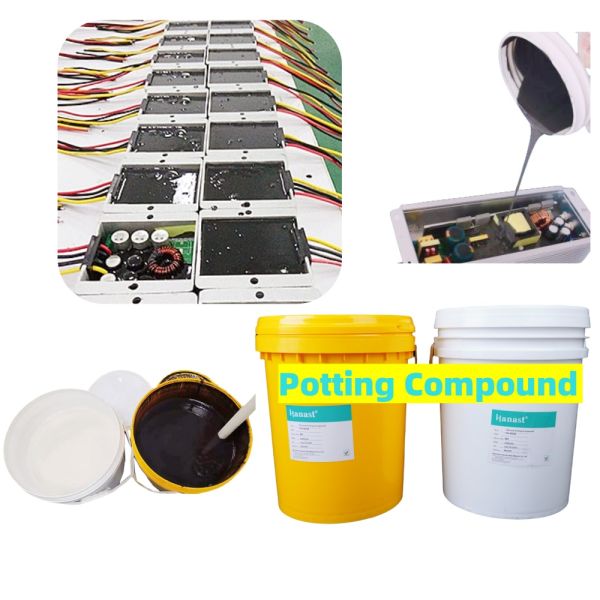

Product application of heat conductive potting glue:

Silicone potting compounds are widely used in various fields, including electronics and electrical appliances (such as LEDs, power modules, sensors, and PCB boards), new energy vehicles (battery management systems), solar energy, military equipment, and medical devices. Their main functions are to provide waterproofing, moisture resistance, dust protection, insulation, thermal conductivity, and shock absorption, thereby extending product life and improving reliability.

55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting

PACKING of Heat Conductive Potting Glue​​

10KG / Set (A, 5kg + B, 5kg)

20KG / Set (A, 10kg + B, 10kg)

50KG / Set (A, 25kg + B, 25kg)

- Storage and transportation:

This product is non-toxic non-dangerous goods, according to the general chemical handling, stored in a cool & dry place (room temperature).

- Shelf Life: 6 months, overdue please reinspect; If it meets the standard, it can still be used.

55 Shore A Silicone Potting Compound For Electronics Glue Adhesive 1:1 2 Parts Heat Conductive Potting
