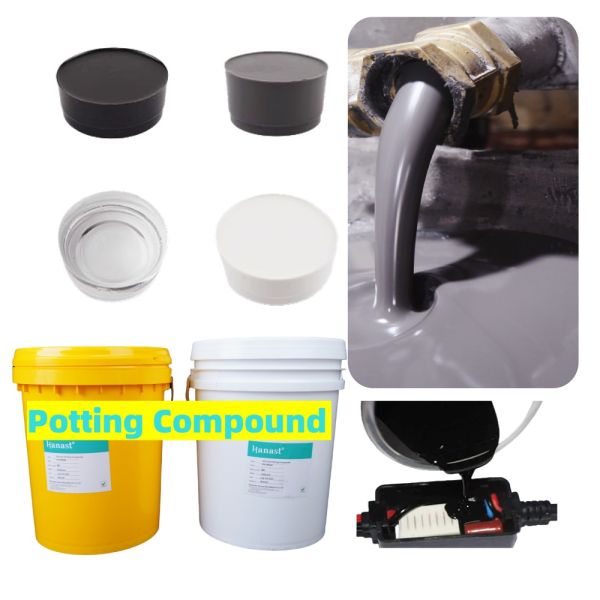

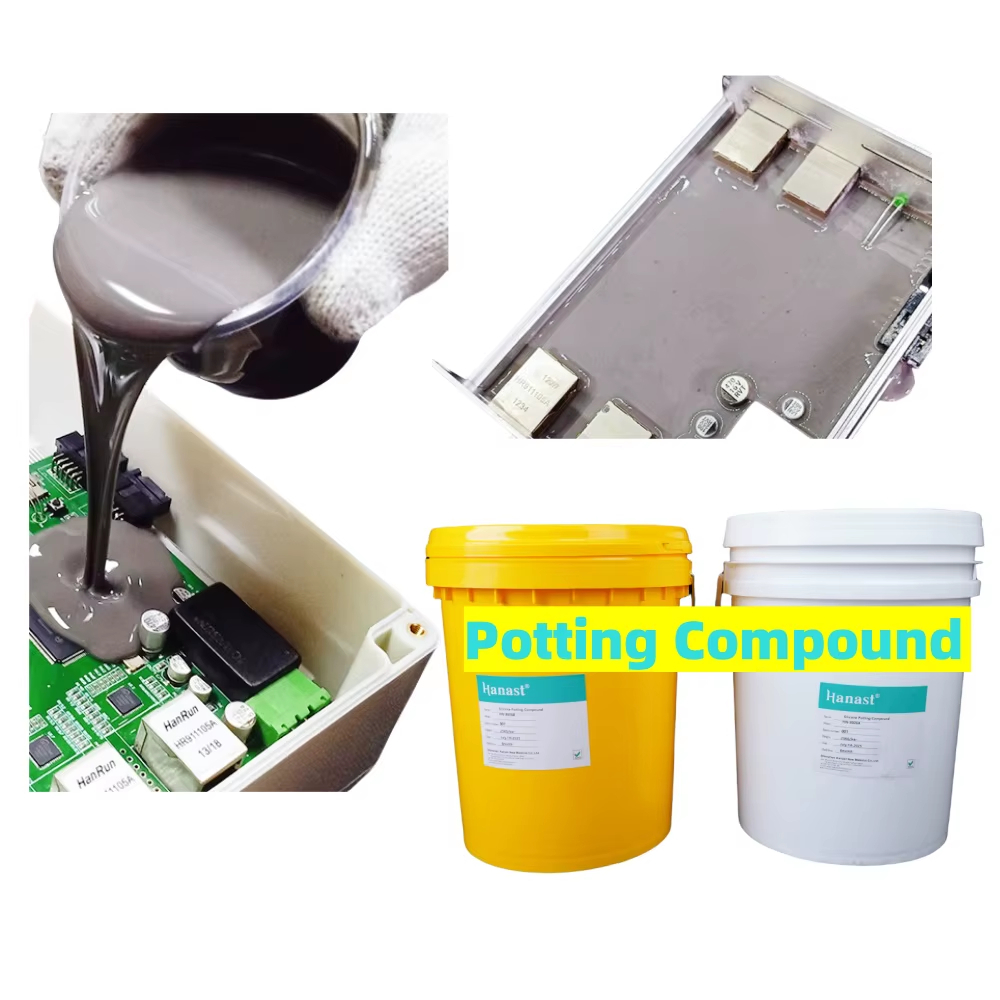

Flexible Potting Compound 1:1 Silicone Potting Material For PCB EV Battery Power Module Electronic Potting Gel

Product Overview for 1:1 flexible potting compound:

1:1 silicone potting compound is a two-component liquid silicone rubber. The "1:1" in its name refers to the requirement that component A (base compound/main agent) and component B (curing agent/catalyst) must be precisely mixed in a 1:1 volume or weight ratio before use. After thorough mixing, the material undergoes a chemical reaction (usually an addition reaction, also known as platinum curing), solidifying from a liquid state into a soft elastomer.

It is a special silicone material specifically designed for potting, sealing, and protecting electronic components and modules.

Key Features for 1:1 flexible potting compound:

High Thermal Conductvity|Flame retardant | RoHS Compliant | Low viscosity | Waterproof.

Technical Parameters for 1:1 flexible potting compound:

Appearance (A/B): White Liquid / Grey Liquid

Curing Shrinkage: Very Low

Water Absorption (24h): 0.01~0.02%

Hardness (Shore A): 45±5

Dielectric Strength: 18-25 kV/mm

Volume Resistivity: 1.0×10¹⁶ Ω·cm

Operating Temperature Range: -50°C ~ +250°C

Compliance: RoHS

Product Applications for 1:1 flexible potting compound:

Medical devices, automotive electronics, communication equipment, electrical engineering, instruments and meters, new energy

Usage Instructions for 1:1 flexible potting compound:

Proportion: A: B=10:1 (weight ratio)
Operating time: 100G mixing capacity at 25 ℃, operating time: 40 minutes
Curing time: surface drying for 2-8 hours, complete curing for 24 hours

1. Preparation:Ensure components and housings are clean and dry.

2. Mixing:Weigh and mix components A and B in a 1:1 ratio until uniform.

3. Potting:For deep cavities, pour slowly to allow natural filling; consider multiple pours if necessary.

4. Curing:Allow to cure fully at room temperature for 4-12 hours, or use heat to accelerate.

Important Notes for 1:1 flexible potting compound:

For optimal deep cure, avoid operating in very high humidity environments.

When potting deep cavities, monitor flow to avoid air pockets.

Packaging & Storage for 1:1 flexible potting compound:

Standard Packaging: Component A 25kg/drum, Component B 25kg/drum.

Store in a cool, dry place. Shelf life: 6 months.

FAQ for 1:1 flexible potting compound:

Q: What does "excellent deep cure" mean? A: It means the compound cures evenly throughout thick layers or deep cavities, preventing a tacky, uncured center and ensuring consistent protection.

Q: What is the benefit of low shrinkage? A: It avoids introducing internal stress on precision components and solder joints, preventing damage or performance drift.

Q: Is a RoHS certificate available? A: Yes, a compliance test report can be provided upon request.

Q: Is it sensitive to moisture? A: It is slightly moisture-sensitive before cure. Reseal containers and store in a cool, dry place after use.

Q: Can it be used for sensors with plastic housings? A: Yes, its low stress and good elasticity make it ideal for protecting sensitive elements and providing a seal.
